Features

Enhanced Cellular Signal Coverage:

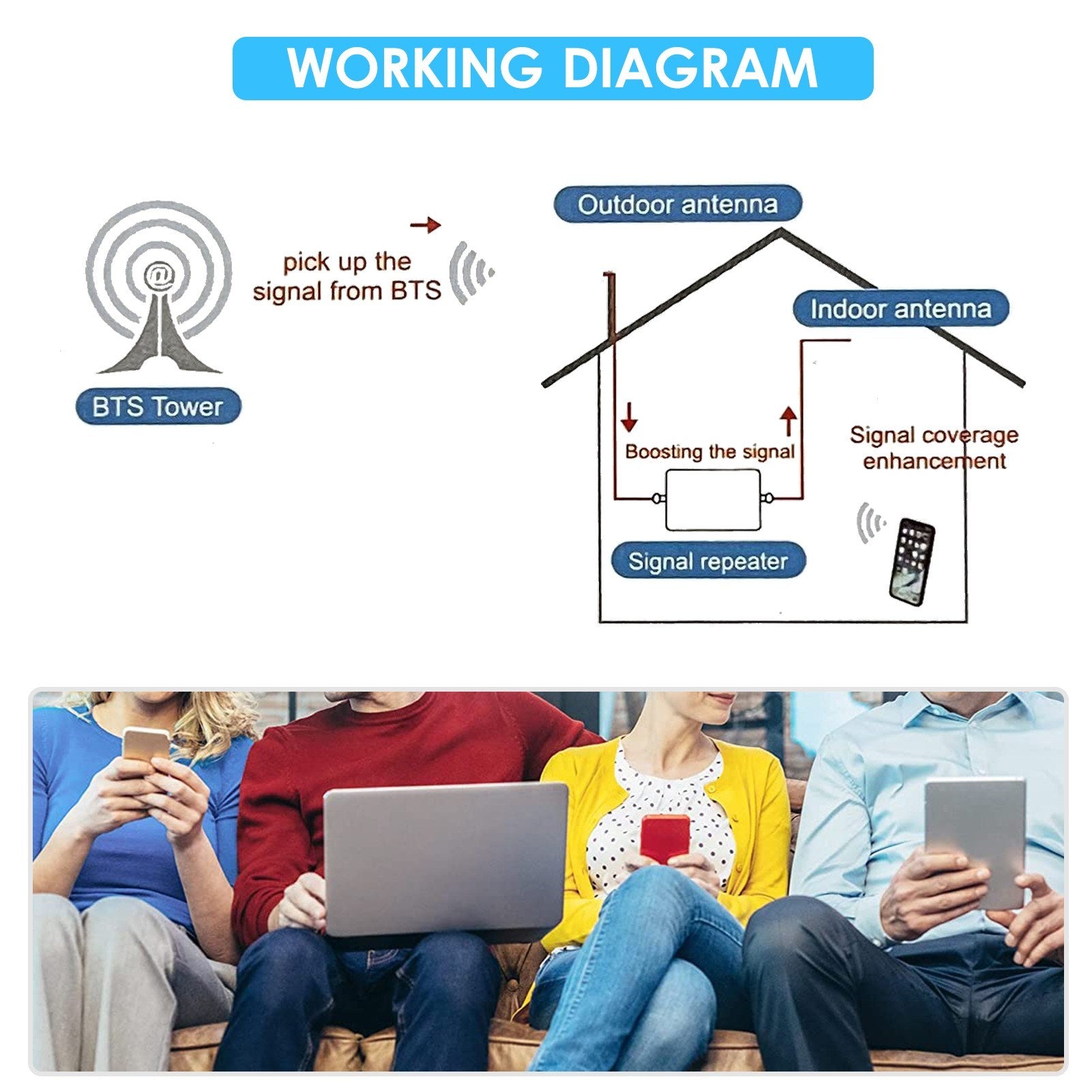

Boost weak cellular signals by receiving outdoor signals through the external antenna, amplifying them through the booster unit, and distributing improved signals indoors through the internal antenna.

Supports US Cellular Networks:
Designed for US cellular frequency bands including 850MHz, 1700MHz, and 1900MHz, improving signal strength for compatible 4G LTE networks and enhancing connectivity for modern smartphones.

Improves Voice & Data Performance:
Helps reduce dropped calls, improve voice clarity, and provide more reliable mobile data connections in areas with weak cellular reception.

LCD Signal Monitoring Display:
Built-in LCD screen displays real-time signal strength, gain level, and output power, making setup and adjustment easier.

Complete Installation Kit:
Includes everything needed for installation, including signal booster, indoor antenna, outdoor antenna, coaxial cables, mounting accessories, power adapter, and English manual.

Wide Application:
Ideal for homes, offices, garages, warehouses, rural areas, and other locations where cellular coverage is weak.

Specifications

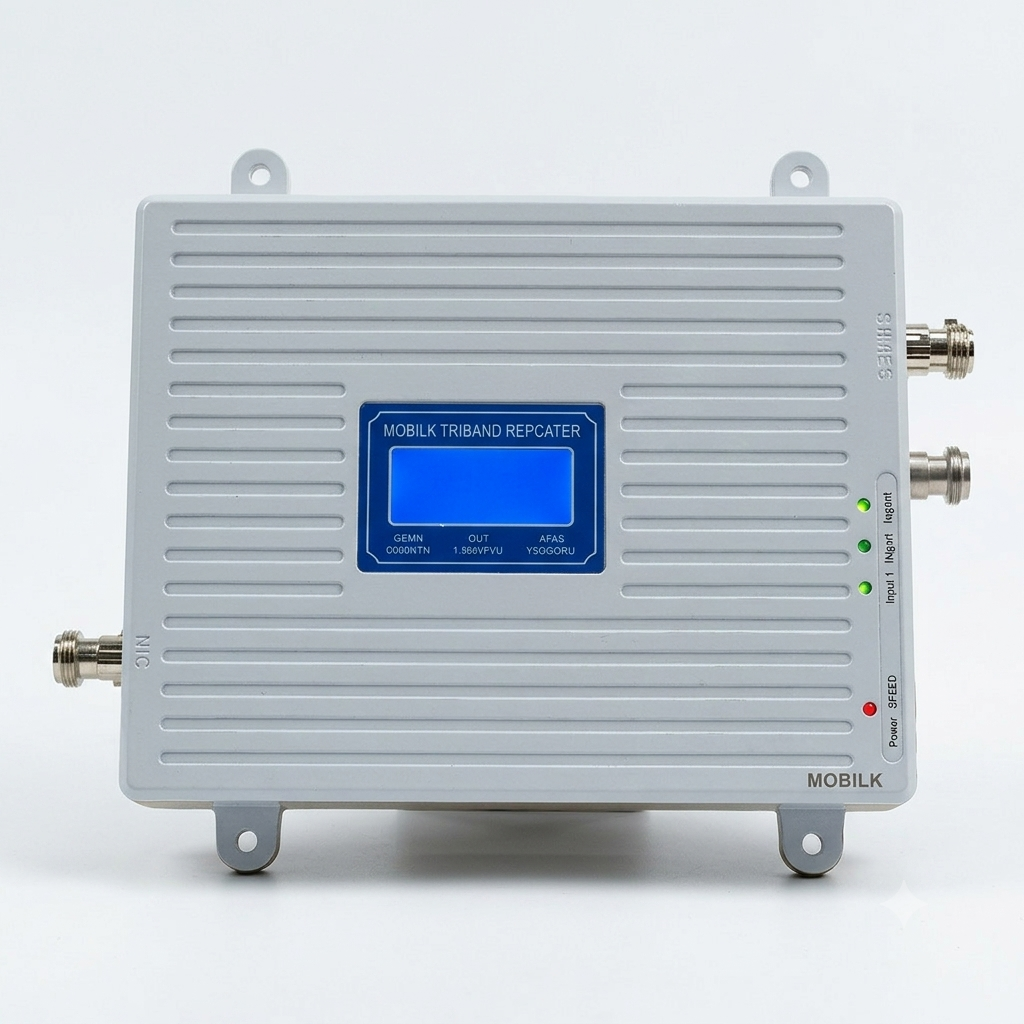

Model: TXC19SL-US

Frequency Bands:
850MHz / 1700MHz / 1900MHz

Supported Network:
4G LTE (Compatible with smartphones using supported cellular bands)

Material:
ABS

Frequency Range:

850MHz Band:
Uplink: 824-849MHz
Downlink: 869-894MHz

1700MHz Band:
Uplink: 1710-1755MHz
Downlink: 2110-2155MHz

1900MHz Band:
Uplink: 1850-1910MHz
Downlink: 1930-1990MHz

Gain:
Uplink: 55±3dB
Downlink: 65±3dB

Output Power:
Uplink: 18±2dBm
Downlink: 20±2dBm

Ripple in Band:
≤6dB

Power Supply:
AC 100-240V, 50/60Hz
DC 5V 2A

Power Consumption:
≤20W

Impedance:
50 Ohm

RF Connector:
N Female

Antenna Connector:
N Male

Installation:
Wall Mountable

Item Weight:
1601g / 3.53lb

Package Weight:
2211g / 4.88lb

Package Size:
49 × 23 × 15 cm
19.29 × 9.06 × 5.91 in

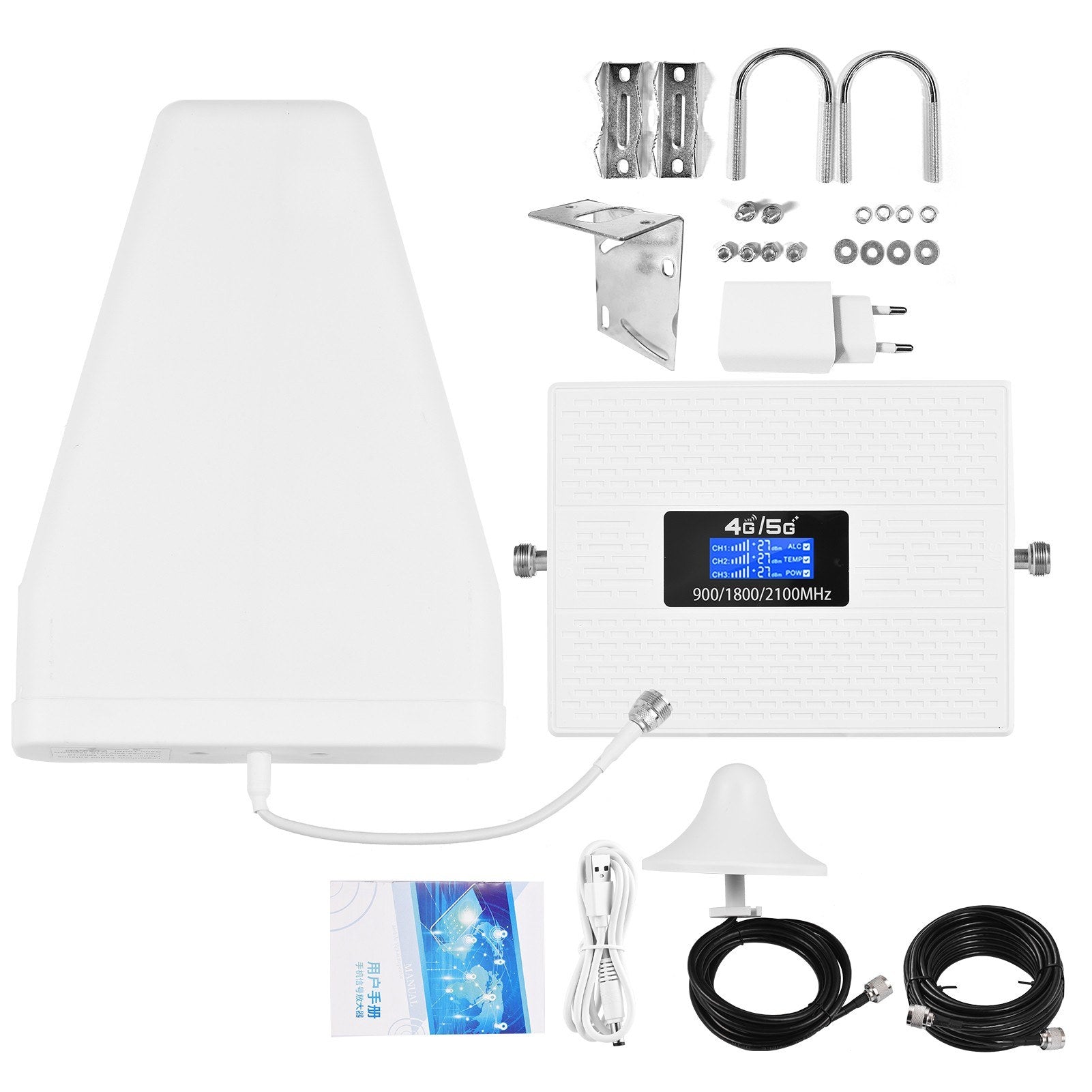

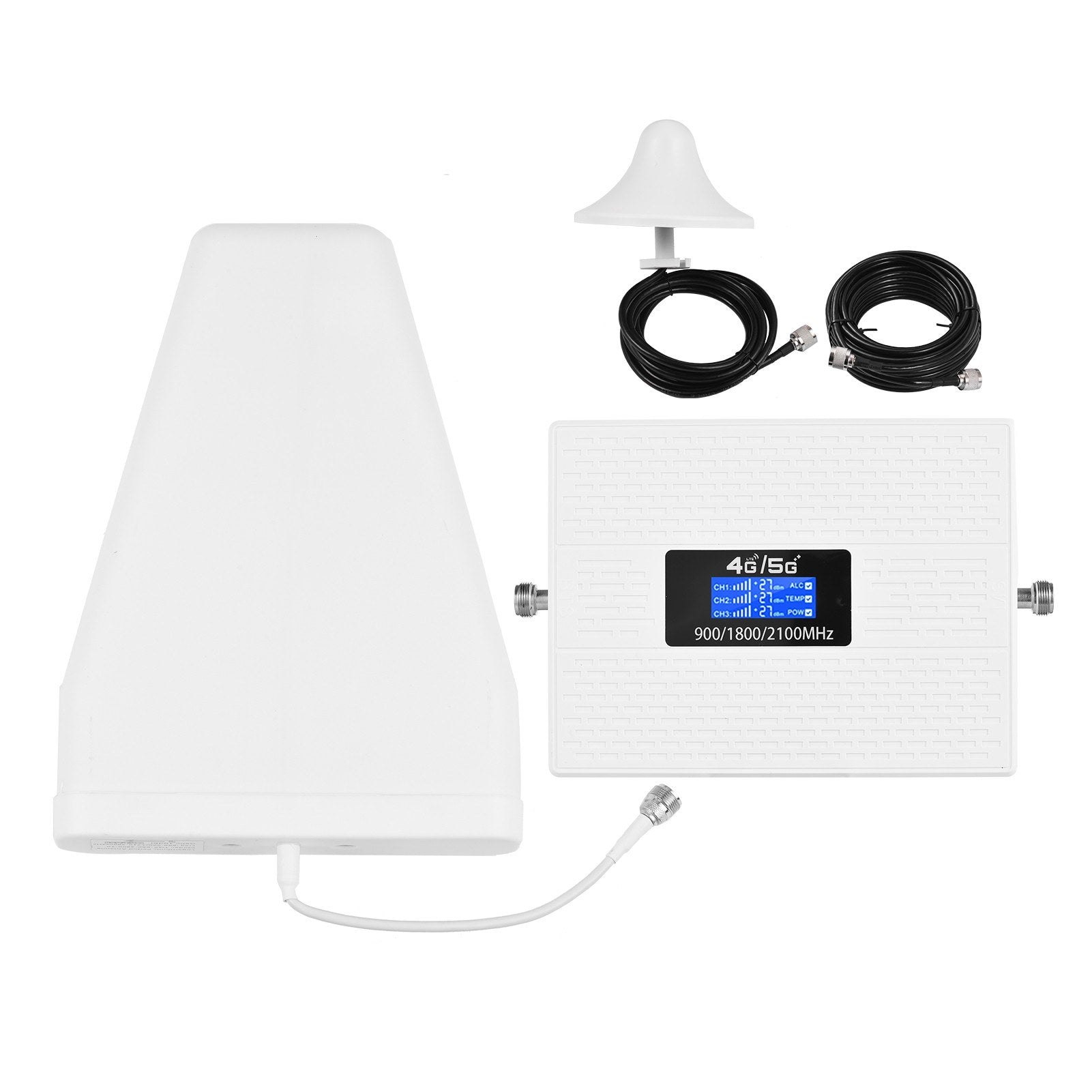

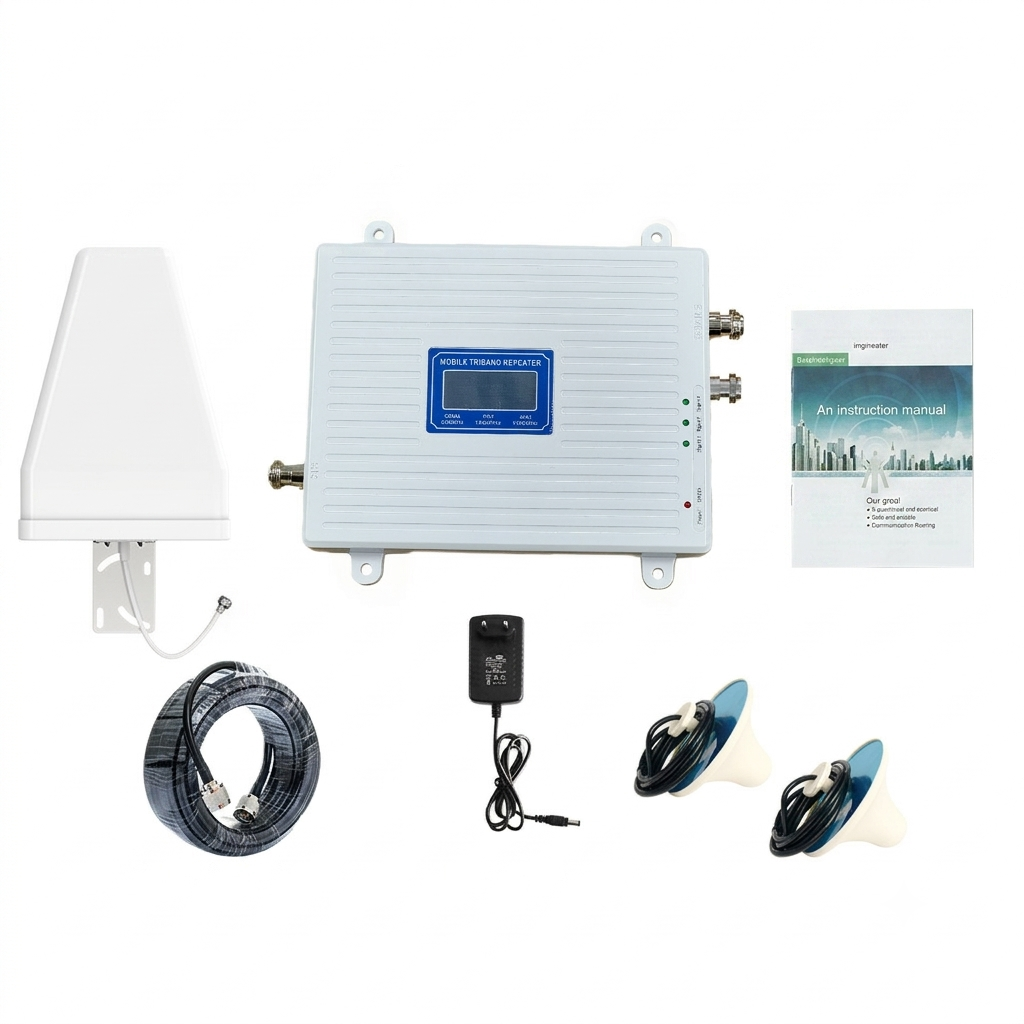

Package Includes

1 × Tri-Band Cellular Signal Booster
2 × Indoor Ceiling Antenna with 5m Cable
1 × Outdoor Log Periodic Antenna
1 × 15m Coaxial Cable
1 × USB Power Cable
1 × Accessories Package
1 × English User Manual
