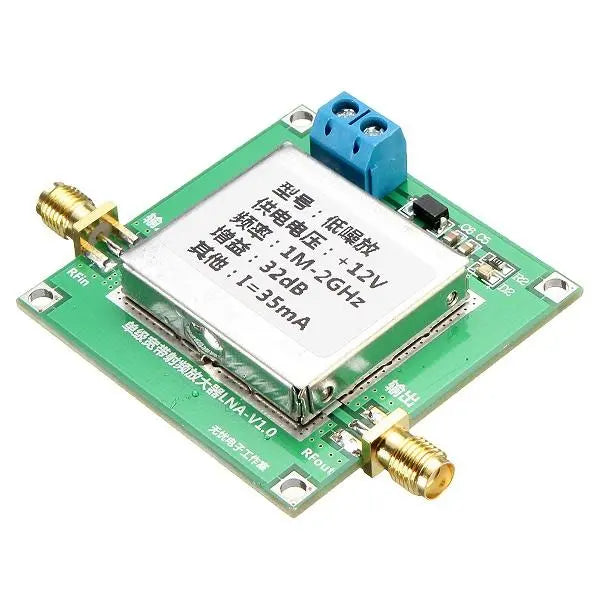

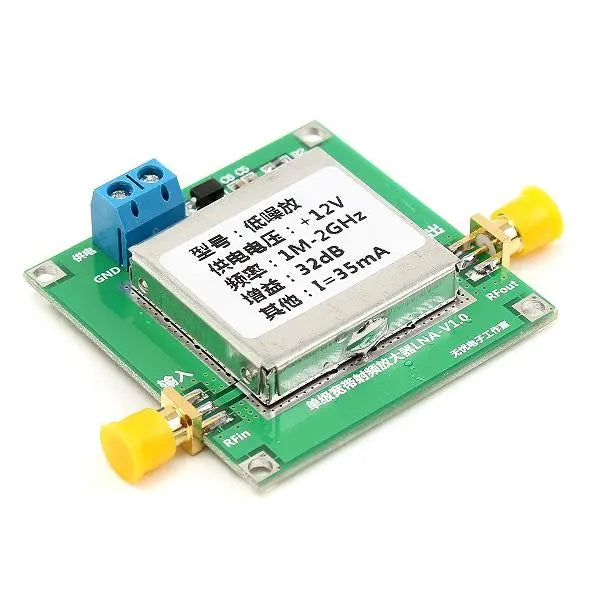

Broadband RF Low Noise Amplifier Module 32dB 1M-2000MHz 2GHz DC 12V

Product Description:

This Low Noise LNA RF Broadband Amplifier Module offers exceptional performance for your signal amplification needs. Below are its key features:

• Gain: 32 dB

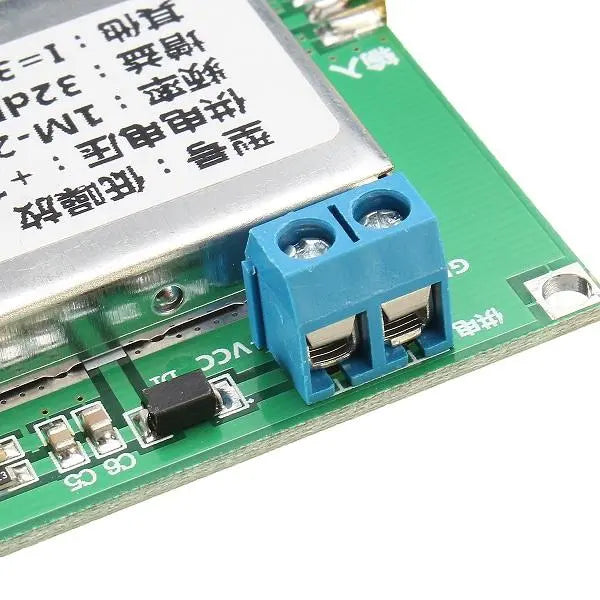

• Power Supply: DC 12V (Current 35mA) with shielded enclosure for enhanced protection
• Input / Output Impedance: 50 Ohm
• Maximum Output Power: 10 dBm (2VPP with 50 Ohm load)
• Input Signal: ≤-22 dBm (Input signals greater than -22 dBm may result in distortion)
• Bandwidth: 1 MHz to 2 GHz (Gain varies with frequency; please refer to the S21 indicator curve for specifics)
• Noise Factor: 2 dB (Measured at 0.5 GHz)
• Adjustable Gain: The gain value can be modified by reducing the supply voltage.
• Dimensions (L x W x H): 50 x 70 x 12 mm

Package Includes:

• 1 x Low Noise LNA RF Broadband Amplifier Module

This module is ideal for a wide range of applications, providing reliable and high-quality signal amplification. Enjoy improved performance with this specialized broadband amplifier solution.
