NOYAFA NF-8509 Network Cable Tester & Multimeter: 2-in-1 NCV AC/DC LCD POE Test, Length, Wiremap Tracker Tools

Specifications:

• Model: NF-8509
• Transmitter Wire Mapping Test Max Distance: 2000m
• Wire Scanning (RJ45): 600m
• Wire Length Test: 5-200m (±3m)
• Port Flashing Test: 10M/100M/1,000M
• POE Power Supply Detection: 4-core/8-core
• POE Voltage Detection Available
• Continuity Test: Detects the connectivity performance of wires and various conductors. The buzzer will sound when resistance is below 50Ω.
• Diode Test: Identify the polarity and forward voltage drop of diodes (0-3.3V).
• NCV Function: Inductive voltage detector (0-4 levels)
• Resistance Measurement: 600Ω-60MΩ (Accuracy: ±1.0%+5)
• AC/DC Voltage Measurement: 600mV-610V (DC Accuracy: ±0.5%+3, AC Accuracy: ±0.5%+3)
• Current Measurement: 1mA-3A DC (Accuracy: ±0.8%+3)
• Frequency: 0-10MHz (Accuracy: ±1.0%+3)
• Power: 3.7V/1500mA lithium battery
• Ambient Temperature Display: Yes

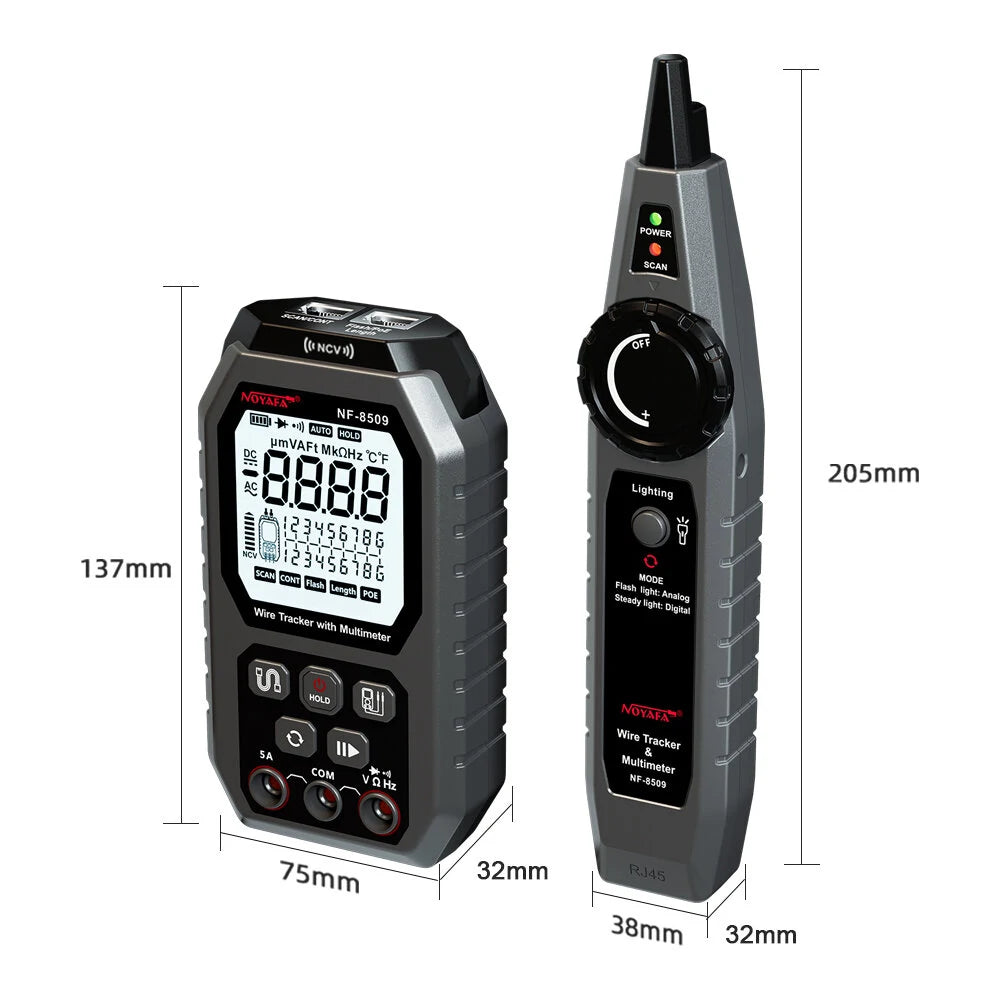

• Dimensions: 137.5 x 76 x 34 mm
• Receiver LED Light: Yes
• Telephone Function: Yes
• Power: DC 9V (exclusive)
• Maximum Working Current: ≤150mA
• Receiver Dimensions: 204.9 x 38 x 29 mm

Functions:

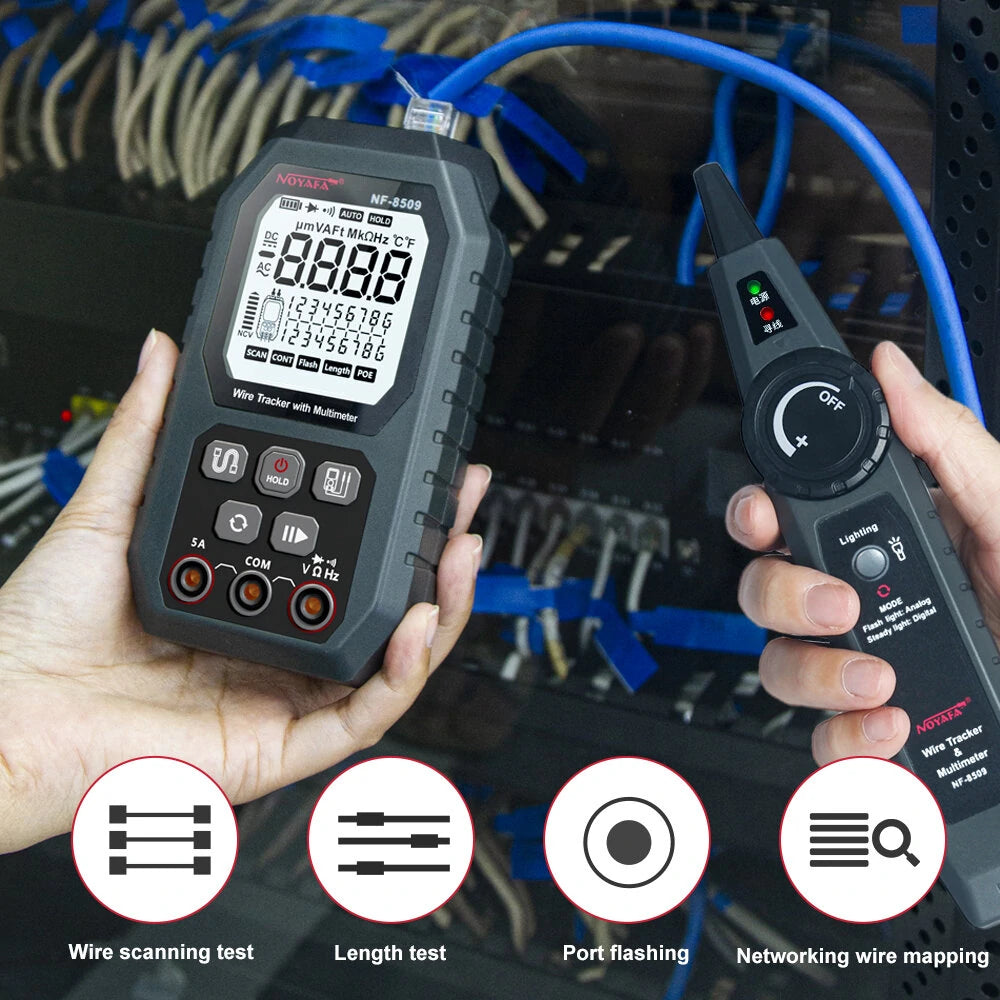

1. Network Cable Testing: Cable length test, wire continuity test, wire scan test, POE test, and port flash test.
2. Digital Multimeter Functions: AC/DC voltage test, continuity test, diode test, temperature test, NCV test, resistance test, and AC/DC current test.

Note: Wire scan is enabled by default when the device is turned on.

Package Included:

• 1 x Emitter
• 1 x Receiver
• 2 x Multimeter Pen
• 1 x Carry Bag
• 1 x Type-C USB Cable
• 1 x Earphone
• 1 x Cable Adaptors
• 1 x User Manual
