Product Details

Specifications

Rated Parameters

• Rated Voltage: 12V~24V/DC (Operating range: 11V to 30V, limit voltage)
• No-load current: 1,000,000 cycles at full load (conservative estimate)

Limit Parameters

• Voltage Limit: 11V-30V/DC (Maximum)
• Current Limit: 10A ± 0.2A (Maximum)
• Working Angle: 180° or 0°~360° (Maximum)

RC Mode

• 1ms Pulse Mode: 1ms~2ms pulse width, Frequency: 50Hz~333Hz
• 2ms Pulse Mode: 0.5ms~2.5ms pulse width, Frequency: 50Hz~333Hz
• Analog Voltage Mode: 0V-3.3V input voltage; 0V corresponds to 0°, 3.3V corresponds to 360°

Weight: 510g~560g

Features

• Compatible with ostrich aircraft controllers, model aircraft wireless remote control, and analog voltage control.
• Features high power alloy gear motor with high torque output.
• Includes an ultra-lightweight aluminum alloy reduction box.
• Designed for easy installation, robust, and durable.

Application Scope

• Heavy-load motion control for arm and leg joints of large robots.
• Automation in industrial production line robotics.
• Precise control of door cutting angles.
• Remote control applications for large camera pan/tilt systems.
• Suitable for various high torque angle control scenarios.

Package Includes

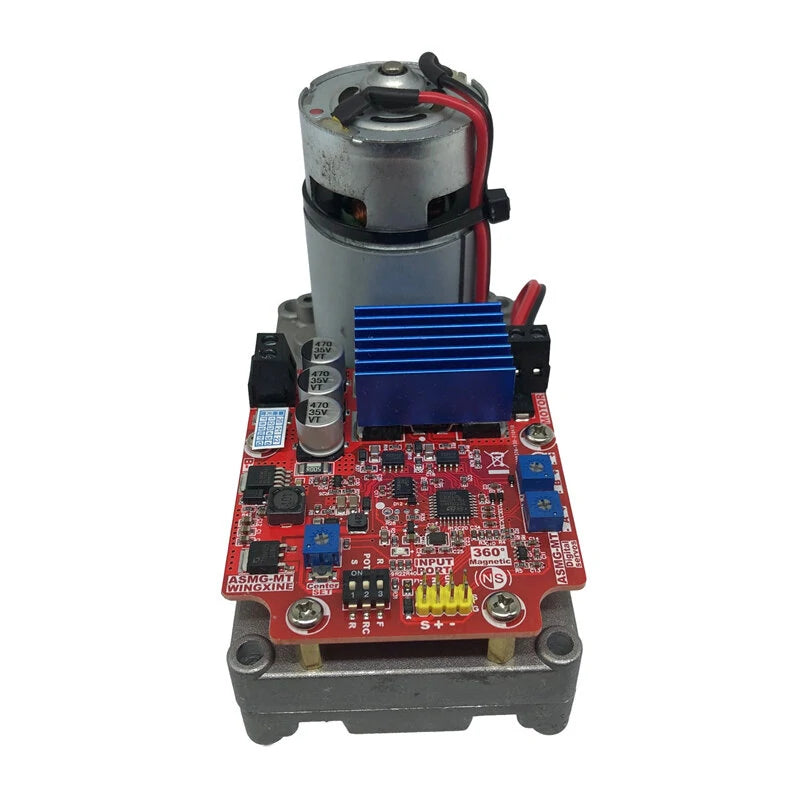

1x ASMG-MTB Module Board
