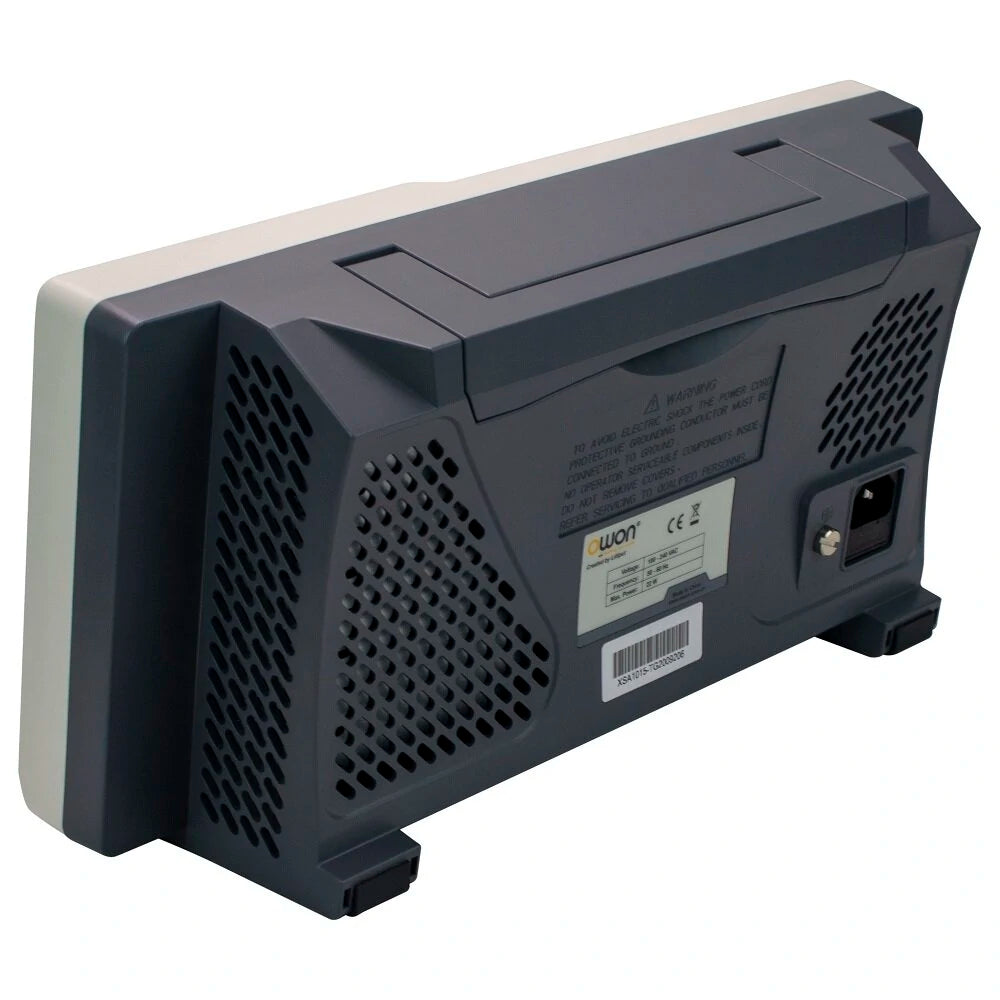

Spectrum Analyzer X Series

Key Features

• Model: XSA805-TG
• Frequency Range: 9kHz-500MHz
• Displayed Average Noise Level (DANL): -160 dBm
• Phase Noise: -80 dBc/Hz @ 1GHz, 10 kHz offset
• Total Amplitude Accuracy
• Minimum Resolution Bandwidth (RBW): 1 Hz
• EMI Pre-Compliance Test Kit: Optional EMC test software available
• Optional Tracking Generator: Can be remotely upgraded as needed
• Advanced Functions: Waterfall plot, modulation signal analysis, audio demodulation, and more
• Standard Pass/Fail Alerts: On-site testing and alerts
• Technological Adoption: All-digital intermediate frequency technology
• Connectivity: USB Host, USB Device, LAN, earphone interface, HDMI
• Display: 9-inch LCD with 1280x800 pixels resolution

Specifications

Model No.	Frequency Range	Frequency Resolution
XSA805(-TG)	9kHz-500MHz	1Hz
XSA810(-TG)	9kHz-1GHz	1Hz
XSA815(-TG)	9kHz-1.5GHz	1Hz

General Specifications

• Frequency Span Range: 0 Hz, 100 Hz to the maximum frequency range
• Frequency Counter Resolution: 1Hz, 10 Hz, 100 Hz, 1 kHz
• Resolution Bandwidth (-3 dB): 1Hz to 1MHz at 1-10 step, 1 MHz, 3MHz
• Video Bandwidth (-3 dB): 1Hz to 1MHz
• Level Unit Options: dBm, dBuW, dBpW, dBmV, dBuV, W, V
• Trace Detectors: Positive-peak, negative-peak, sample, normal, RMS, average, quasi-peak
• Trace Functions: Clear write, max hold, min hold, view, blank, average, trace math
• VSWR: 300 kHz to 1.5 GHz when input > 10 dB

Tracking Generator

• Frequency Range: 100kHz to 500MHz
• Output Power Level Range: -40dBm to 0 dBm
• Output Power Level Resolution: 1dB

Package Included

• 1 x Spectrum Analyzer
• 1 x USB Cable
• 1 x Power Cord
• 1 x Manual

Download the English Manual
