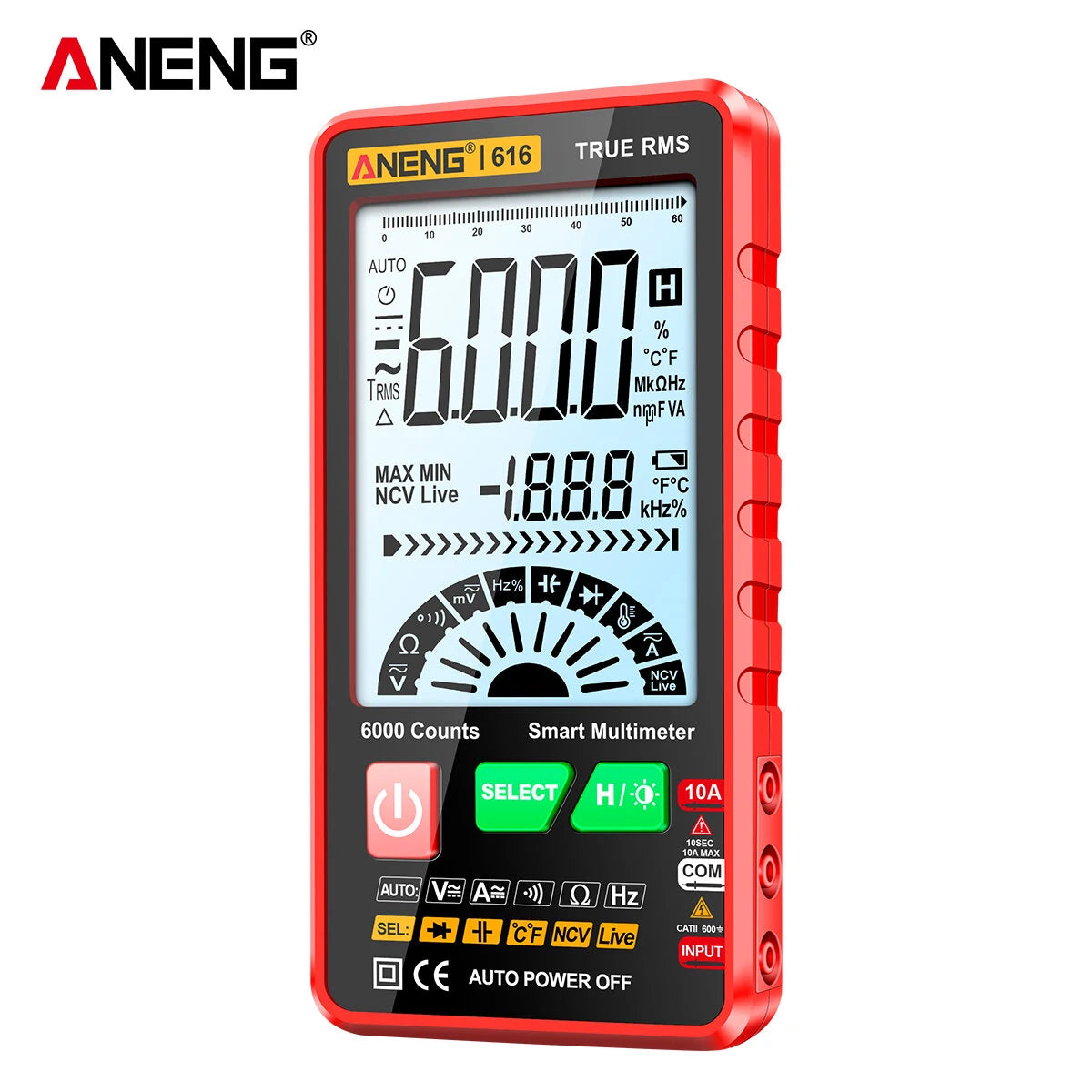

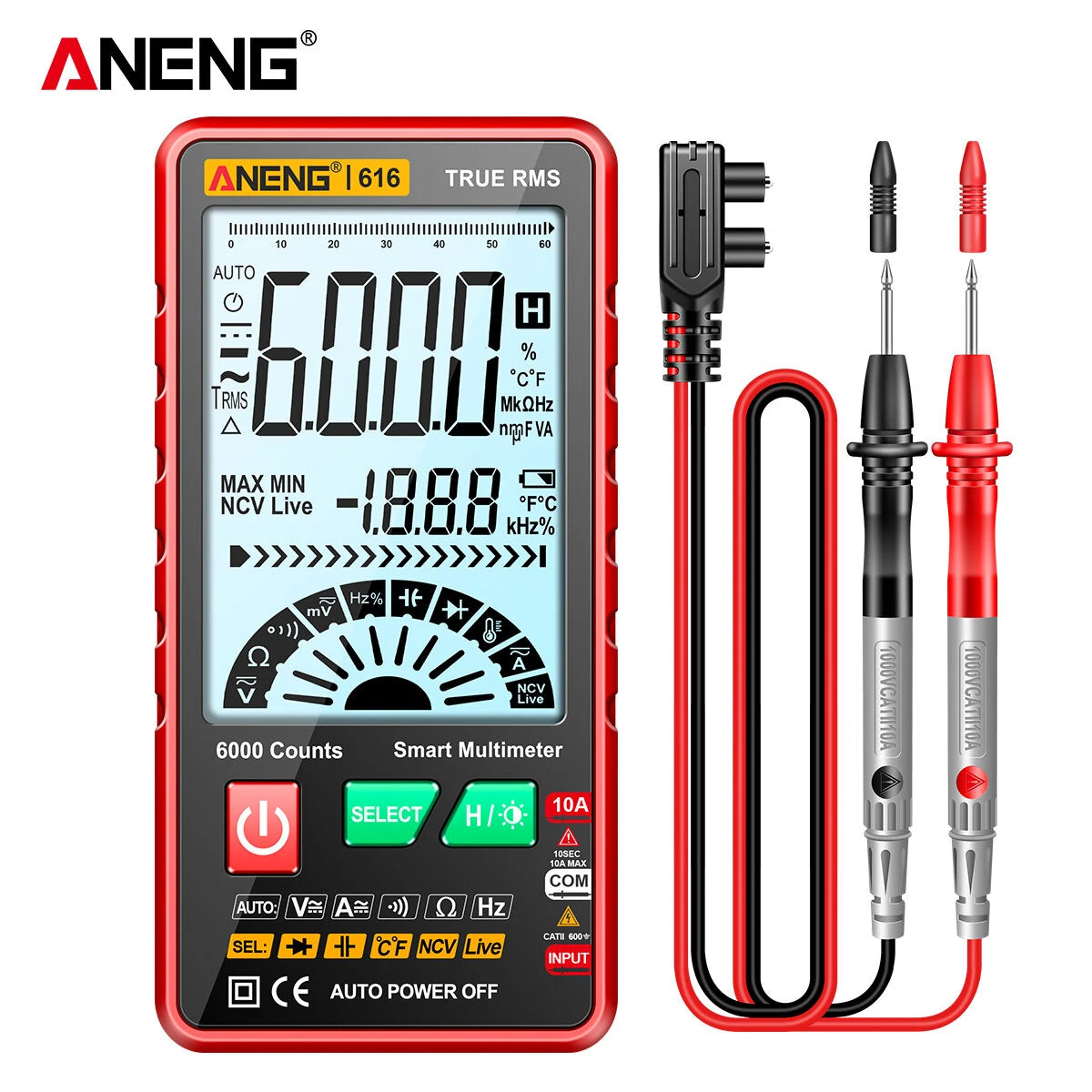

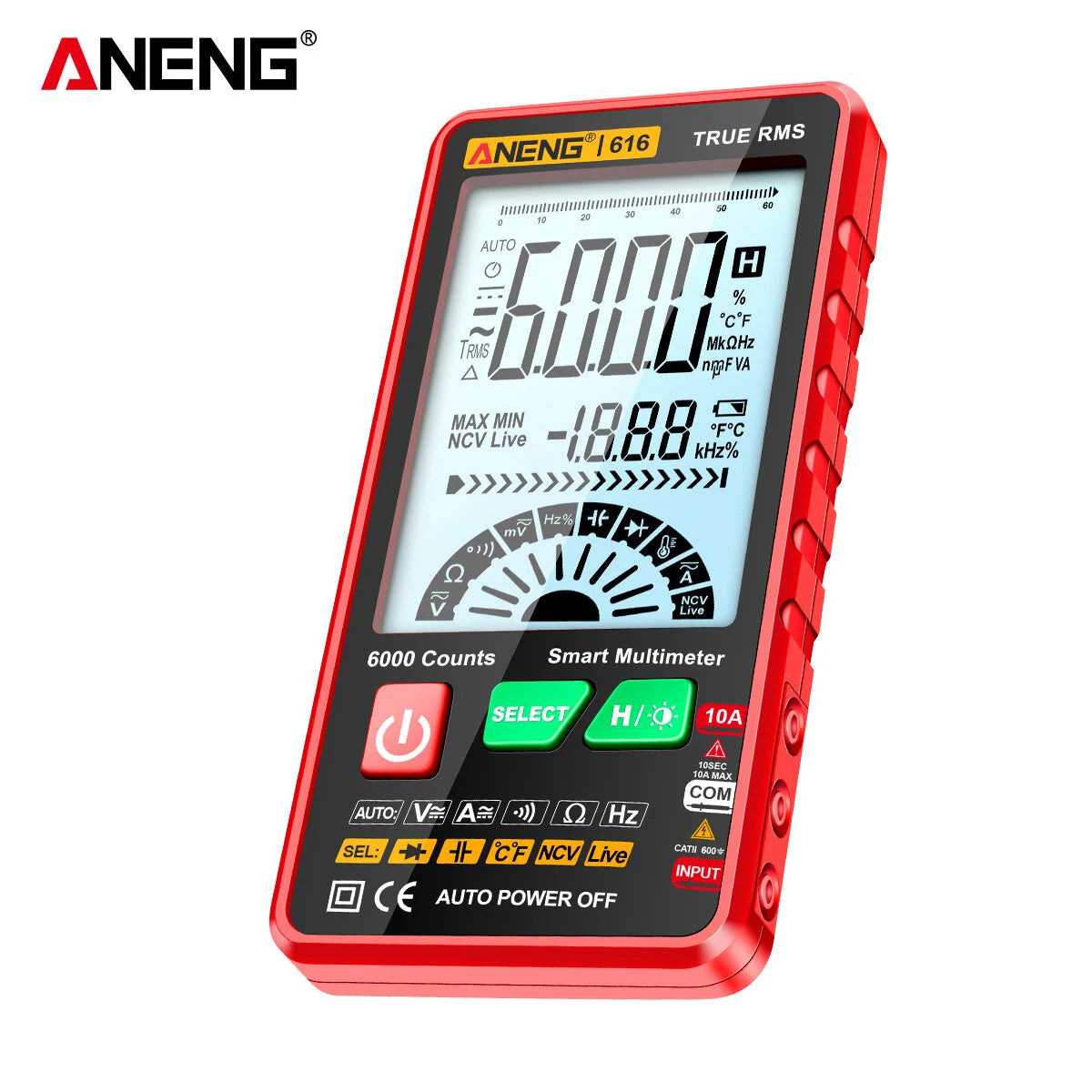

ANENG 616 Large Screen Backlight Digital Multimeter

Discover the ANENG 616, a sleek, ultra-thin multimeter designed with precision and convenience in mind. Perfect for electronic enthusiasts, educators, and factory professionals, it offers versatile performance and easy operation.

Key Features

• Advanced Display: Equipped with a 6000 counts LCD screen for clear readings.
• True RMS: Provides accurate measurements with true RMS technology.
• Auto-Recognition: Effortlessly identifies and measures voltage, current, resistance, and more.
• Additional Functions: Includes a flashlight for easy use in dark environments.
• Compact Design: Lightweight and pocket-sized for portability.

Specifications

Function	Range	Resolution	Accuracy
AC Voltage	0~600V	0.1mV~1V	±(1.5%+8d)
DC Voltage	0~600V	0.1mV~1V	±(1.2%+5d)
AC Current	0~10A	0.1mA~10mA	±(2.5%+8d)
DC Current	0~10A	0.1mA~10mA	±(2.2%+8d)
Capacitance	6nF~60mF	1pF~10μF	±(10%+8d)
Resistance	0~60MΩ	0.1Ω~10kΩ	±(1.5%+10d)
Frequency (Hz)	0~10MHz		±(4.0%+10d)

Additional Features

• NCV Induction: Yes
• Live Zero Fire: Yes
• Diode and Continuity Test: Yes
• Real-time Temperature: Yes
• Data Retention: Yes
• Auto Shut-down: After 10 minutes of inactivity

Specifications

• Battery: AAA*2
• Material: ABS
• Wire Material: PVC/Brass
• Maximum Display: 6000 counts
• Total Wire Length: 100cm / 39.37in
• Net Weight: 105g (without battery)
• Product Size: 137.4 x 68.4 x 14.5mm / 5.4 x 2.7 x 0.57in

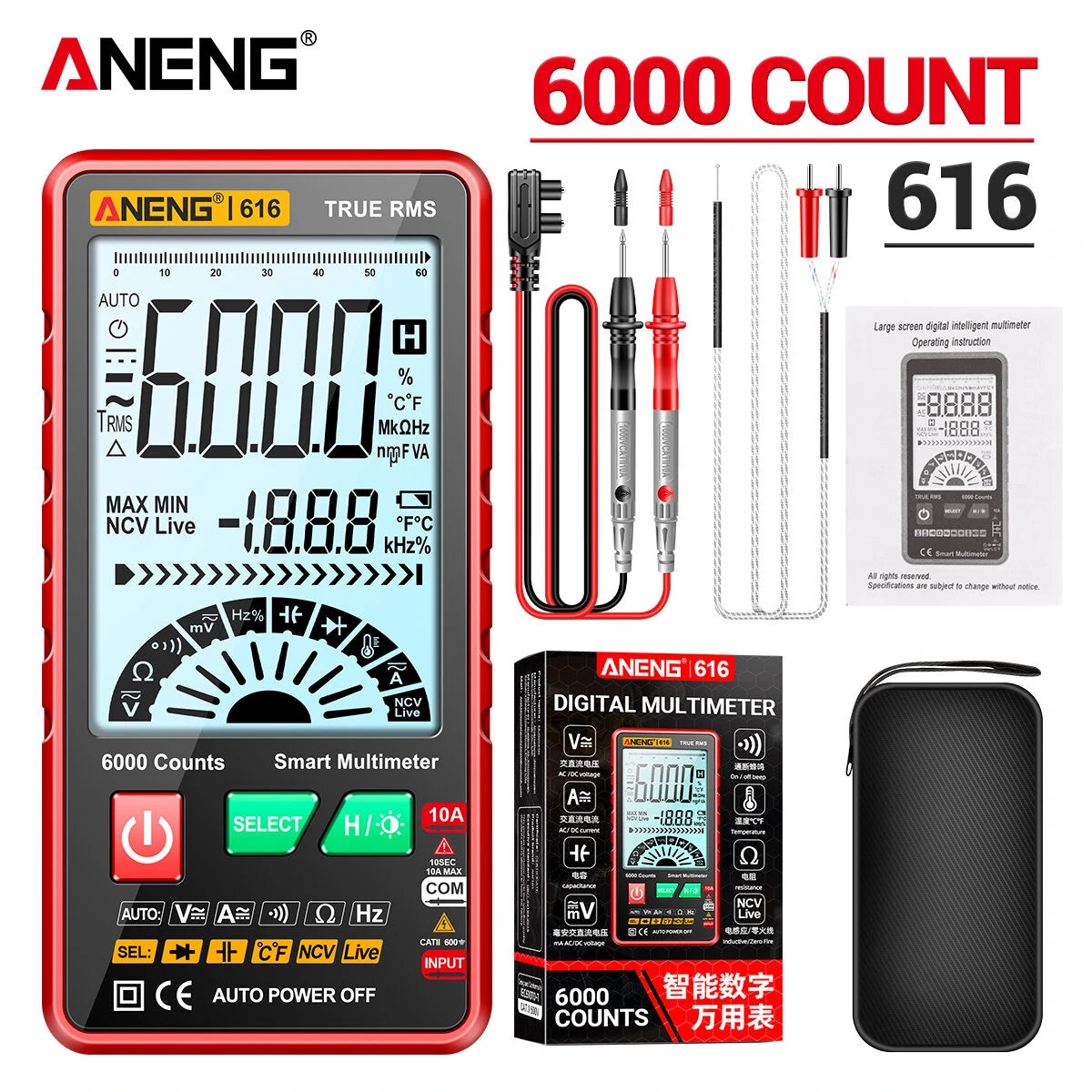

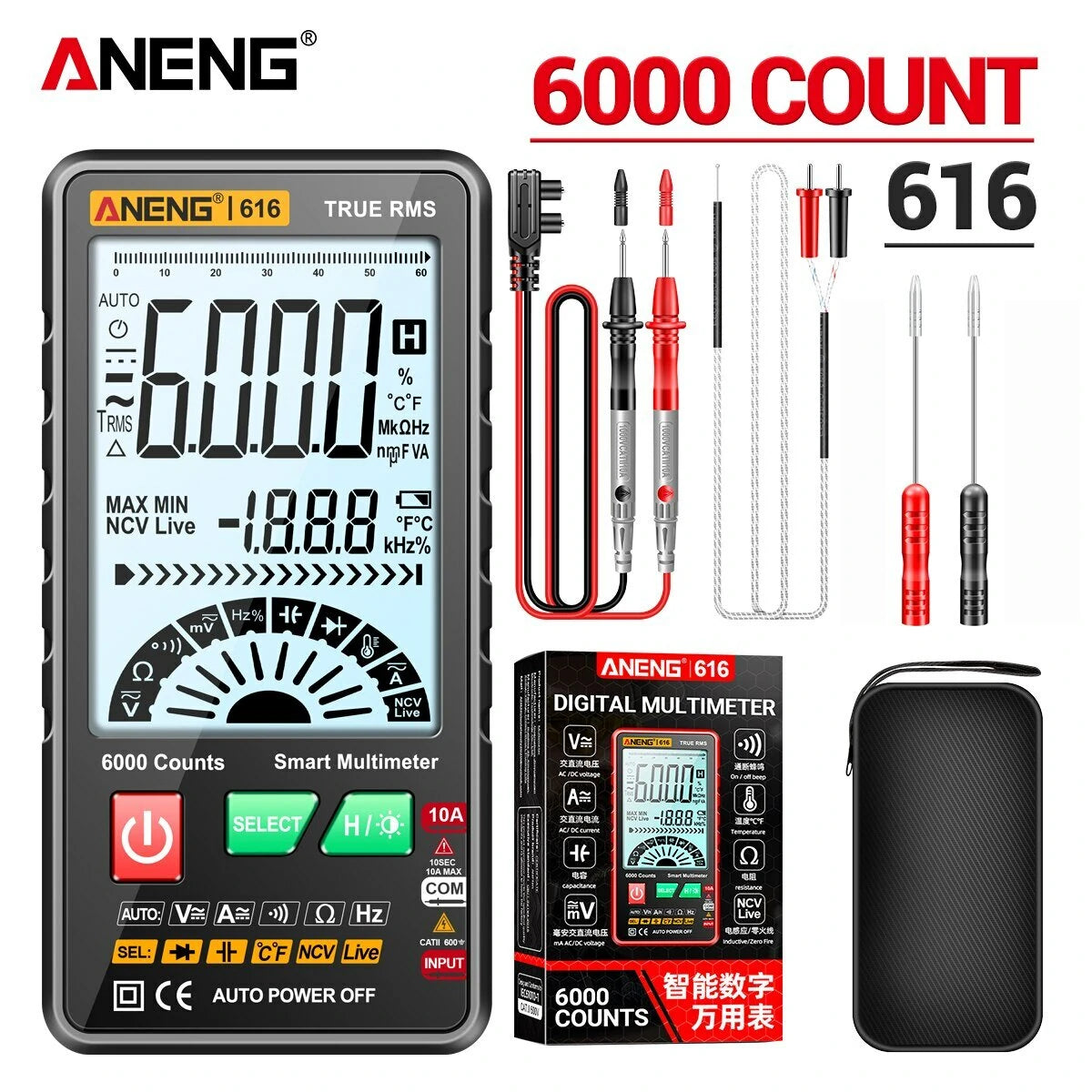

Package Includes

• 1 x Digital Multimeter
• 1 x Set of Test Leads
• 1 x English User Manual
• 1 x Temperature Line
• 1 x Storage Bag
• 2 x Needle Tip Probes
• 1 x Packing Box
