DEMOKE 250 Series Quick Change Tool Post System: High Precision Tool Holders 250-101 to 250-111 for Versatile Lathe Use

Features

Versatile Quick-Change Tool Post System

This quick-change tool post system is an essential accessory for standard lathes, featuring a robust tool post and various compatible tool holders. It is designed to handle diverse machining tasks such as cylindrical facing, end facing, grooving, drilling, reaming, and boring, offering unmatched versatility. The tool holders can be rapidly exchanged using the dovetail slot installation, enhancing productivity across multiple machining processes.

High Precision and Exceptional Rigidity

The dovetail installation mechanism ensures precise positioning and outstanding rigidity during operations. It surpasses traditional square turrets by allowing quick tool mounting and removal outside the machine tool. The high precision and strong structural integrity contribute to superior workmanship and efficient machining, making it an optimal replacement for square turrets.

Wide Range of Tool Bit Compatibility

Equipped to hold a broad range of tool bit sizes, our tool holders meet various machining needs. Models such as 250-101 and 250-102 accommodate tool bit ranges of 3/16" to 1/2", while others like 250-110 offer extended clamping ranges. This makes the system adaptable to specific machining requirements, ensuring comprehensive coverage for different tasks.

Rugged and Weight-Optimized Construction

Crafted to endure demanding use, the tool holders vary in size and weight to fit different operational needs. Whether it's the compact and light 0.40 kg models or the more robust 2.23 kg Model 250-111, each holder is tailored to specific machining intensities. This diversity in construction allows for reliable performance in both light and heavy machining operations.

User-Friendly Design for Efficient Setup and Operation

The ergonomic design of the quick-change tool post system enables swift tool changes, significantly reducing setup time and improving operational efficiency. Each component is designed for easy and straightforward installation, with a user manual providing clear instructions. This ensures that users, regardless of technical expertise, can quickly set up and operate the system, optimizing workflow and productivity.

Specifications

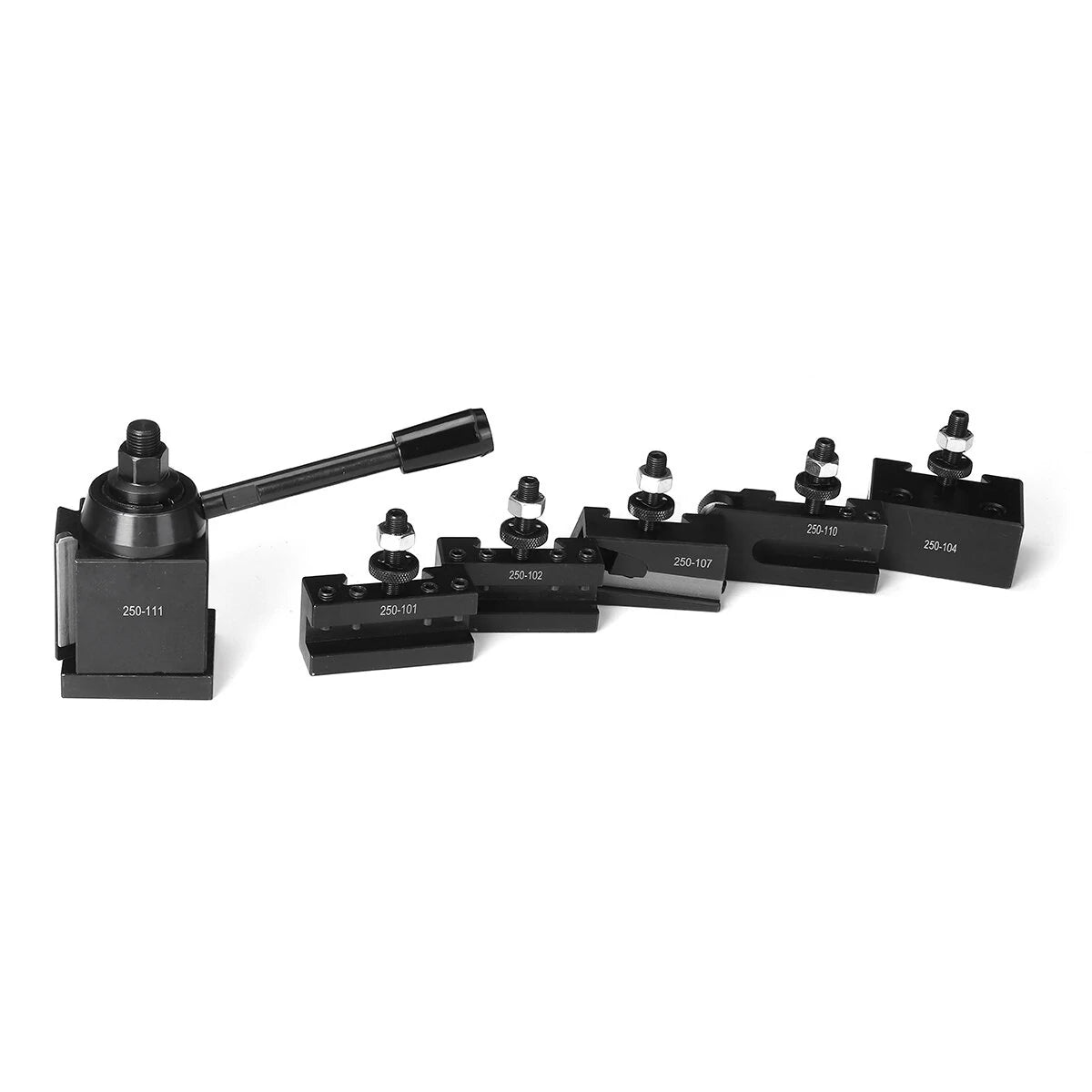

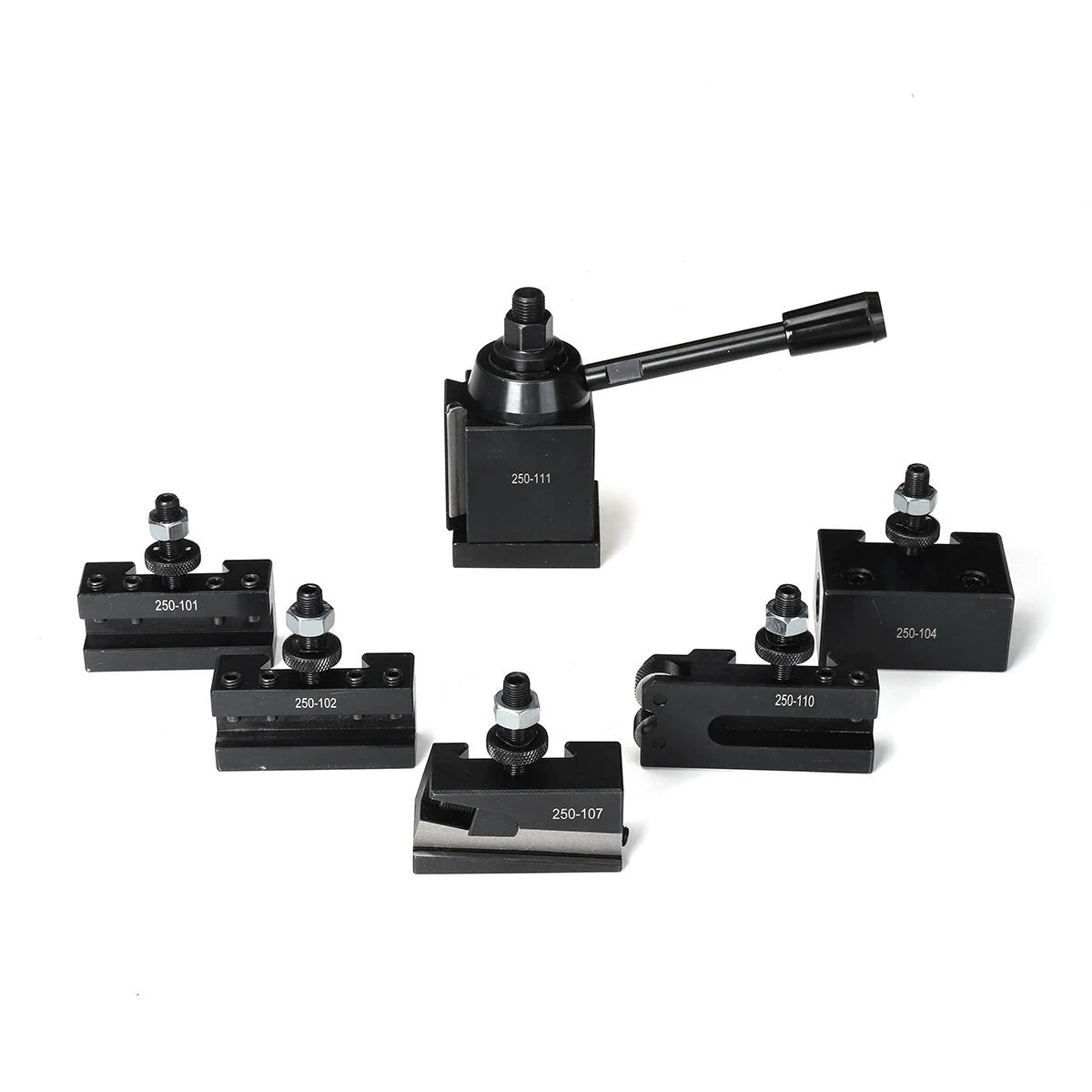

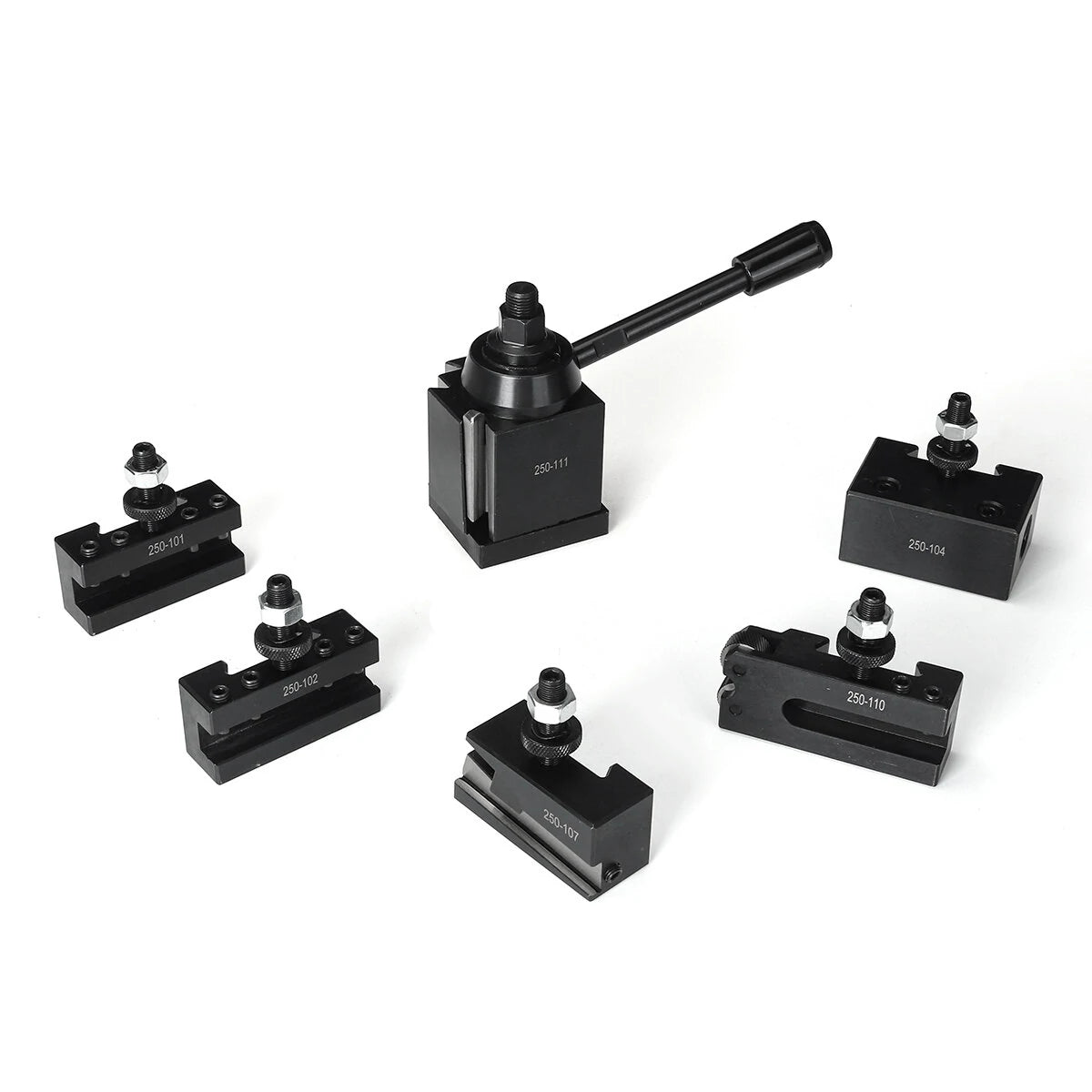

• Model: 250-101, 250-102, 250-104, 250-107, 250-110, 250-111

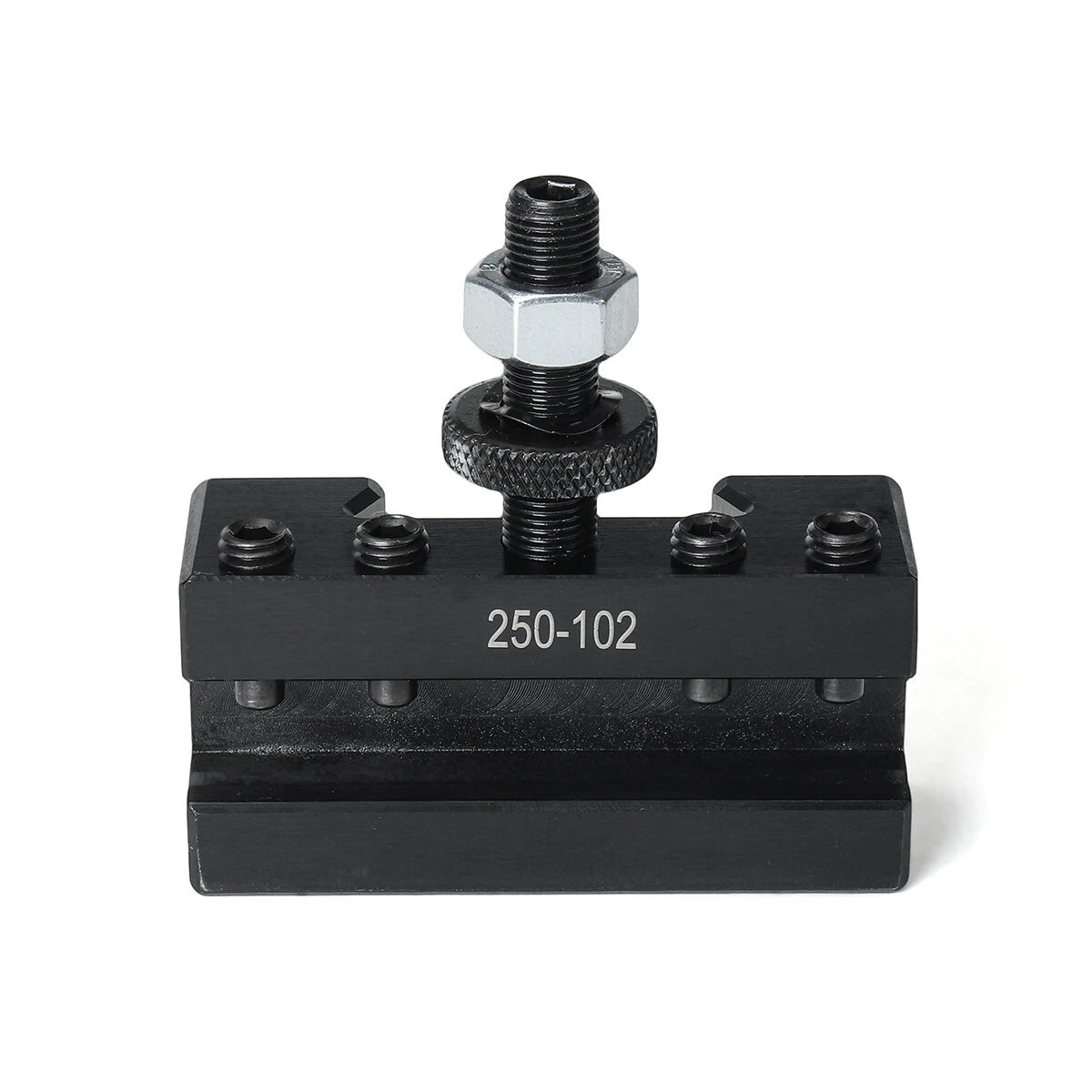

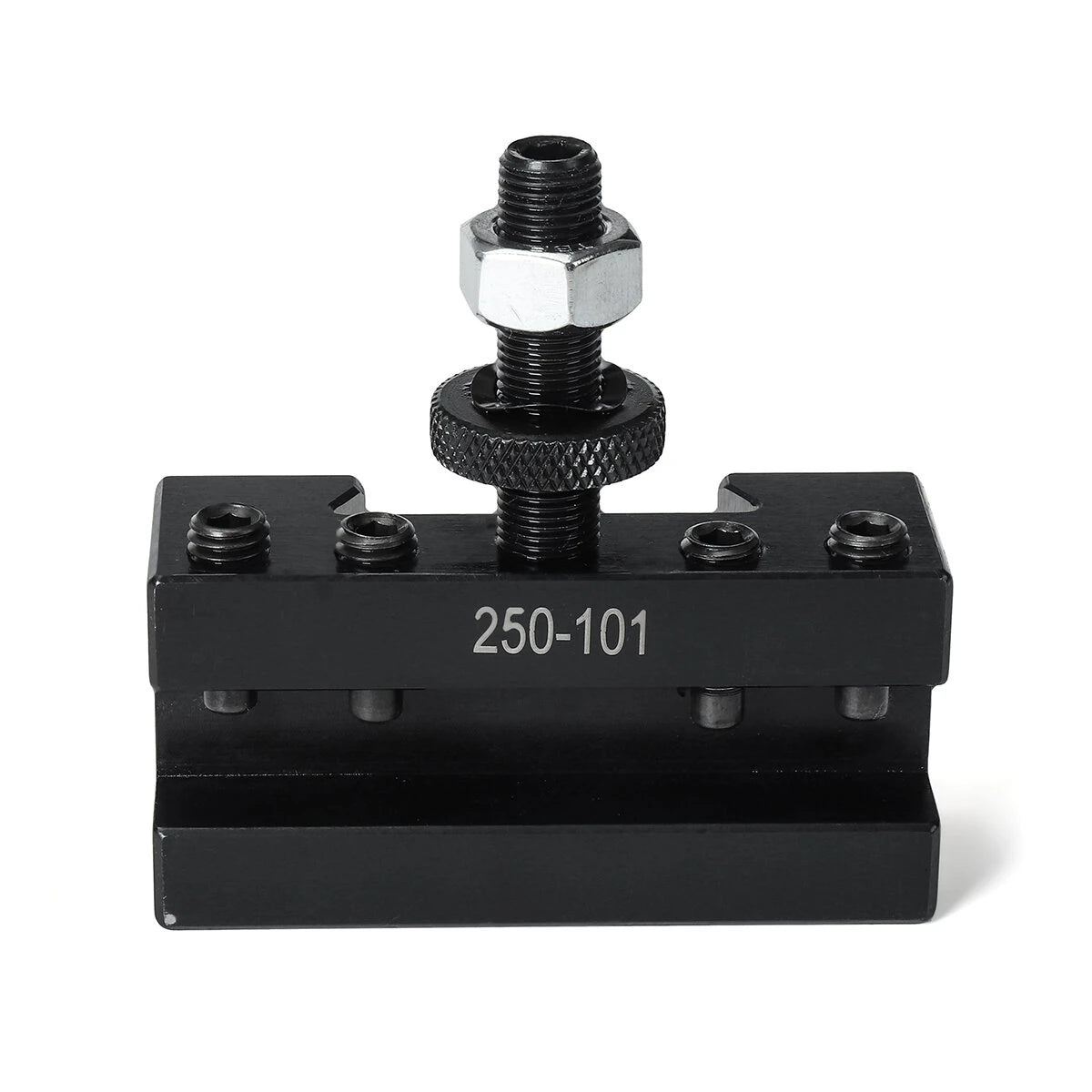

• For Models 250-101 and 250-102:
• A (in): 1
• B (in): 1/2
• C (in): 29/64
• D (in): 1-1/2
• Tool Bit Range (in): 3/16-1/2
• Weight (kg): 0.40

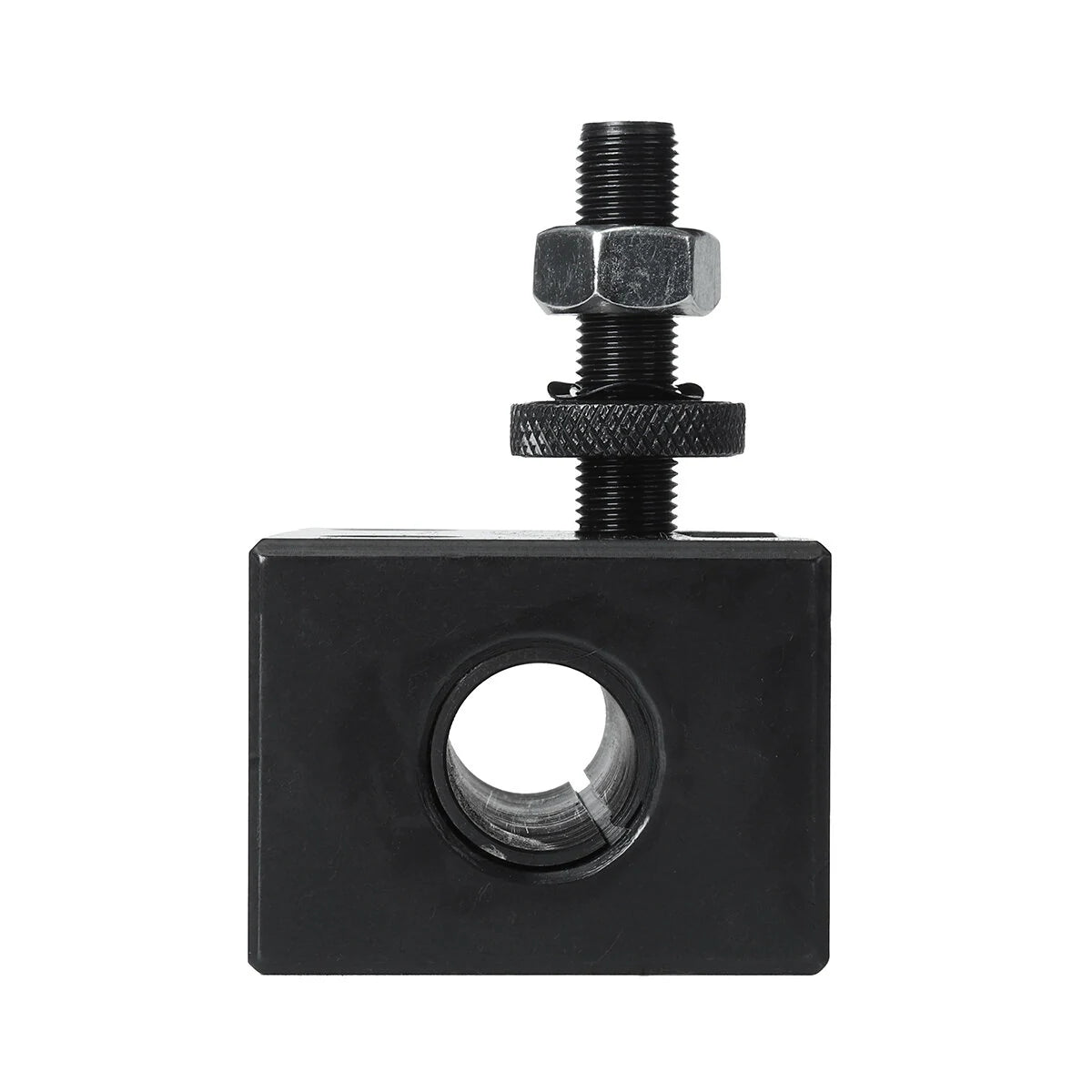

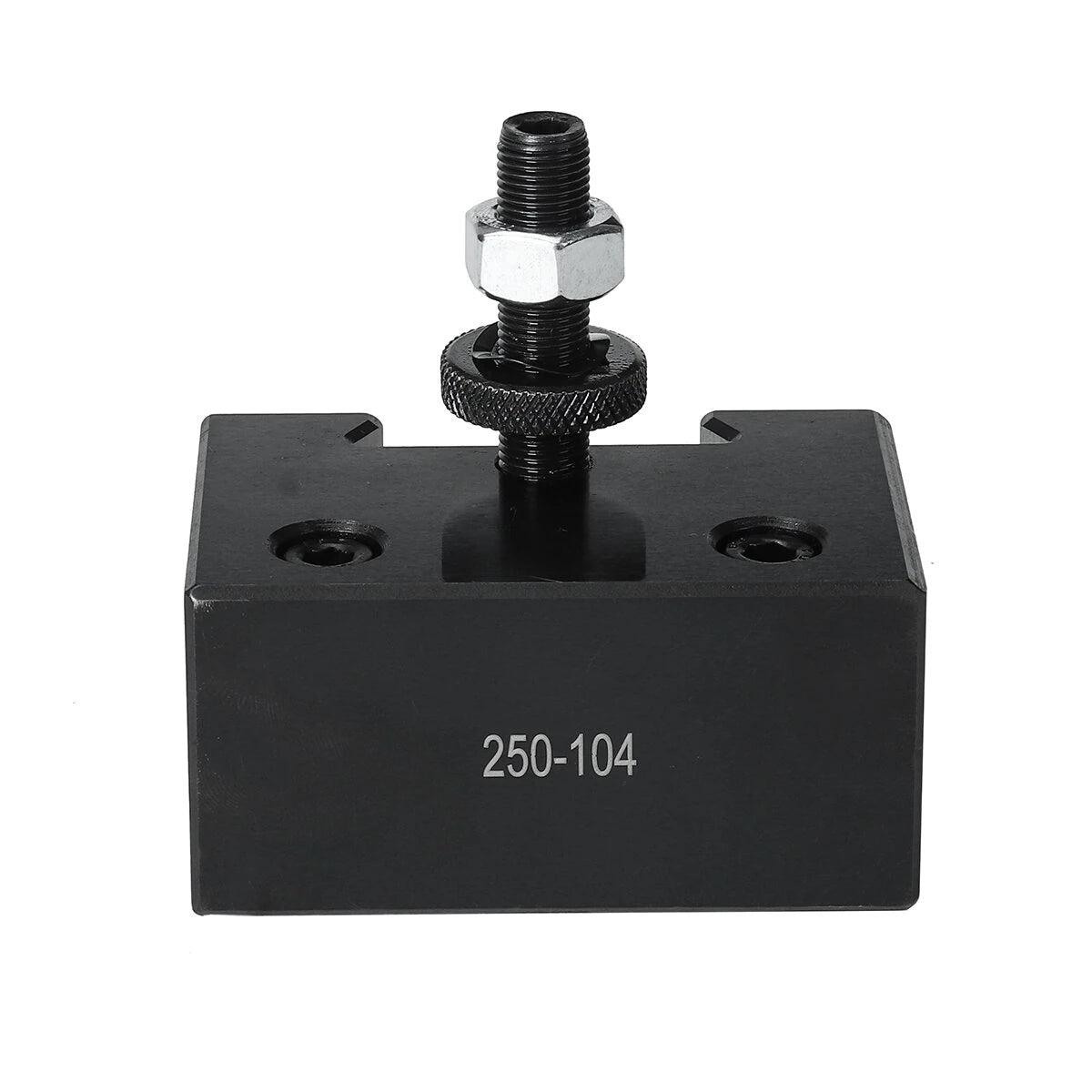

• For Model 250-104:
• A (in): 3/4
• B (in): 1-1/2
• C (in): 5/8
• D (in): 3/4
• Weight (kg): 0.90

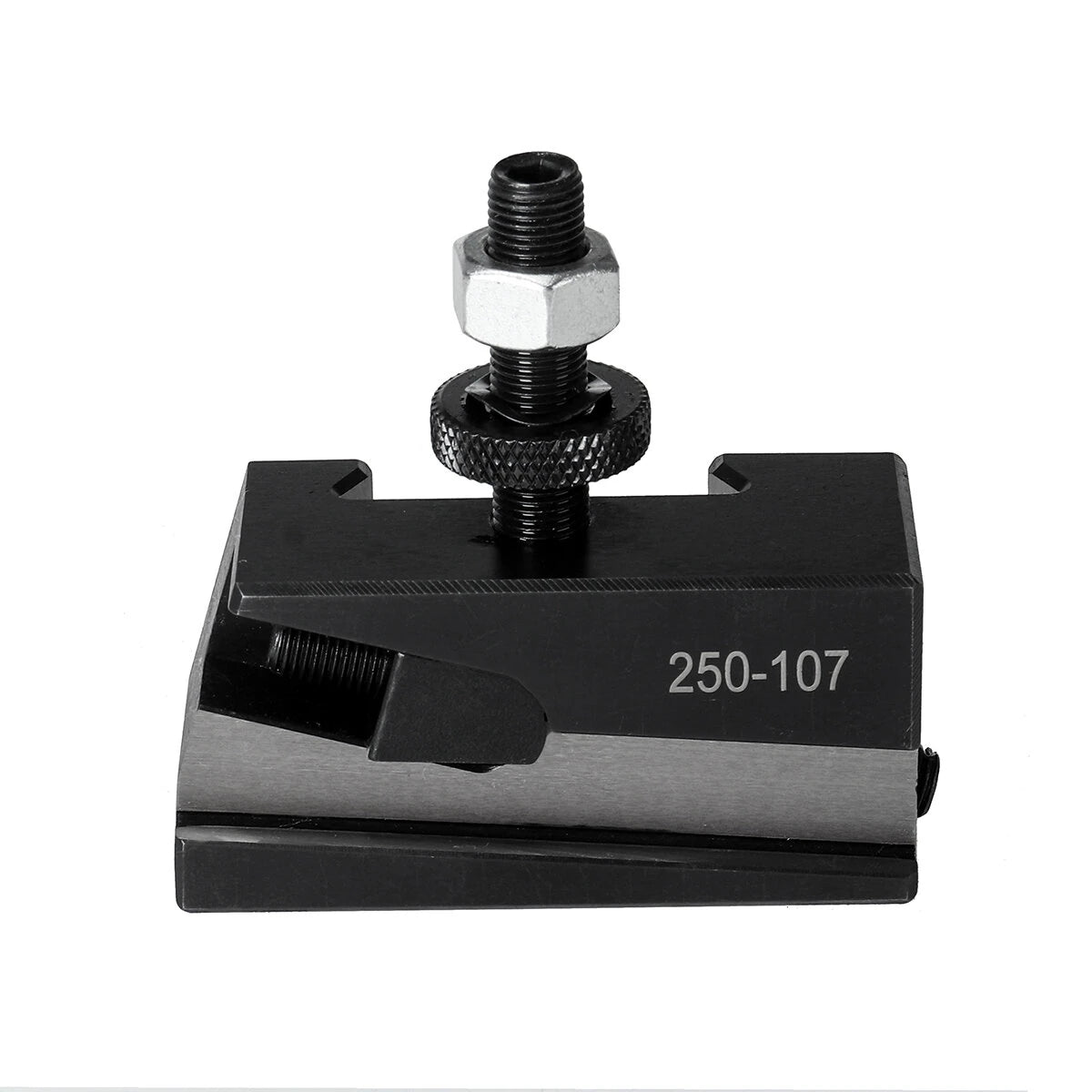

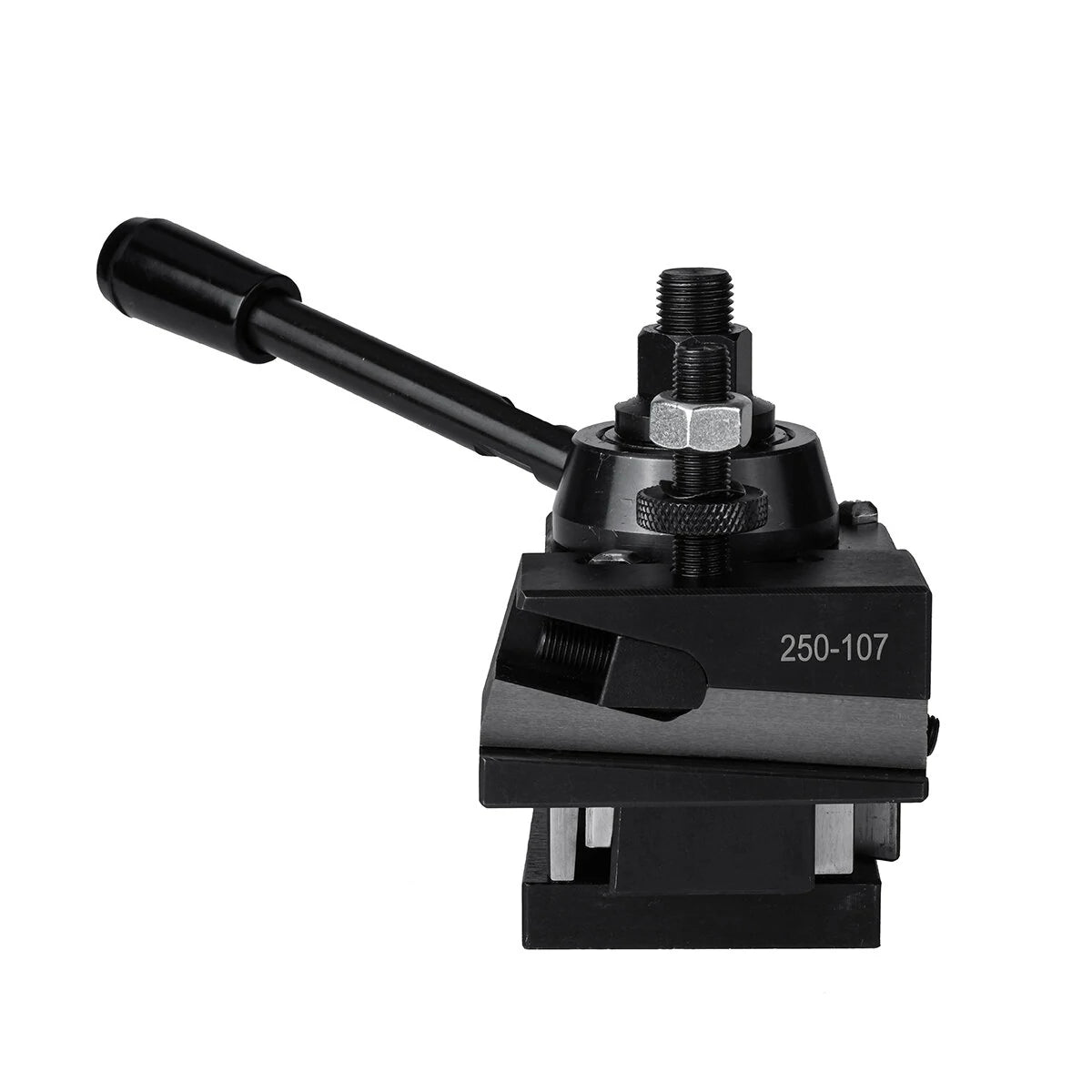

• For Model 250-107:
• A (in): 3/16
• B (in): 1/2
• C (in): 1-1/2
• Blade Height (in): 1/2
• Weight (kg): 0.53

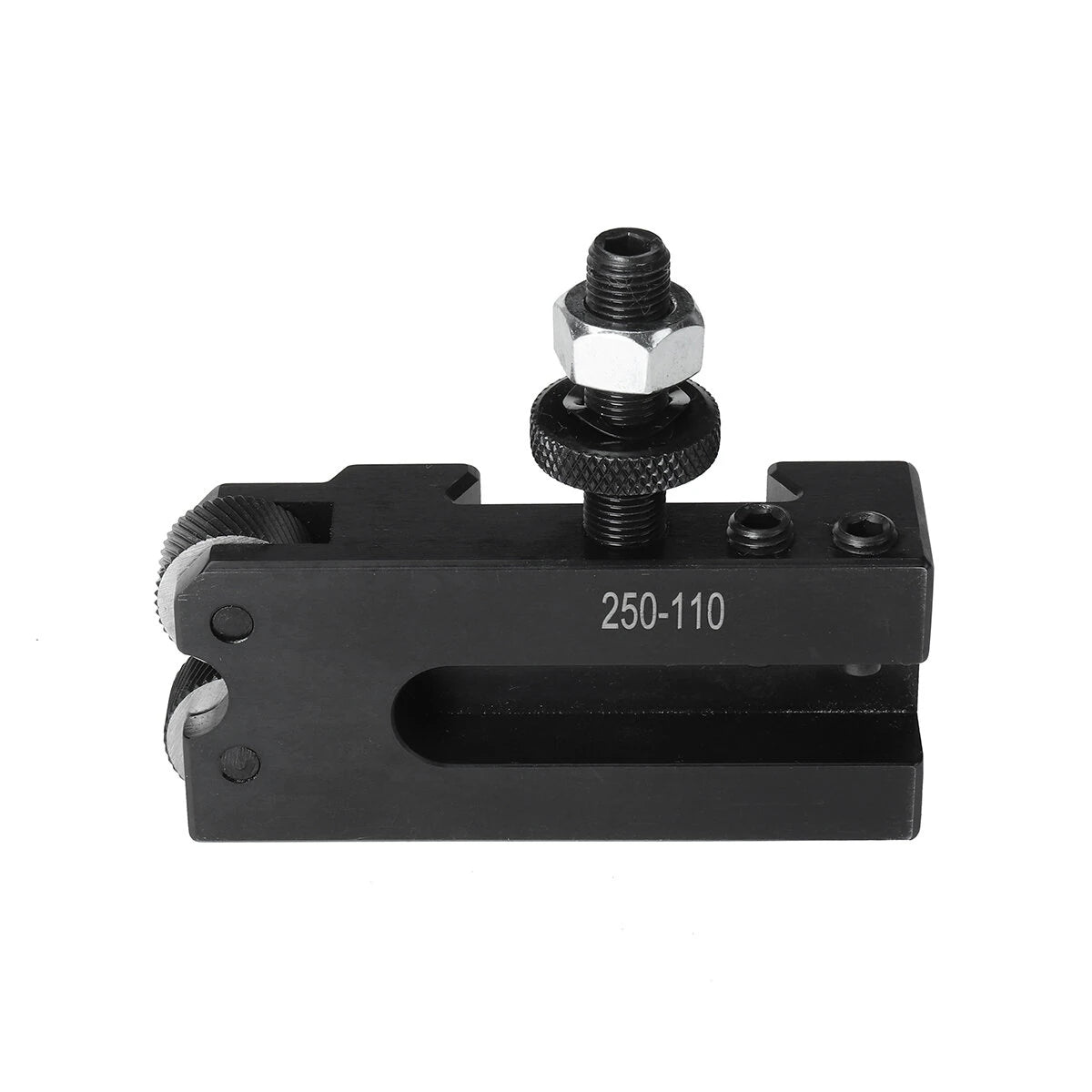

• For Model 250-110:
• A (in): 7/8
• B (in): 2-1/2
• C (in): 1-9/16
• Clamping Range (in): 3/16-1/2
• Tool Bit Range (in): 3/4x3/8x1/4
• Weight (kg): 0.48

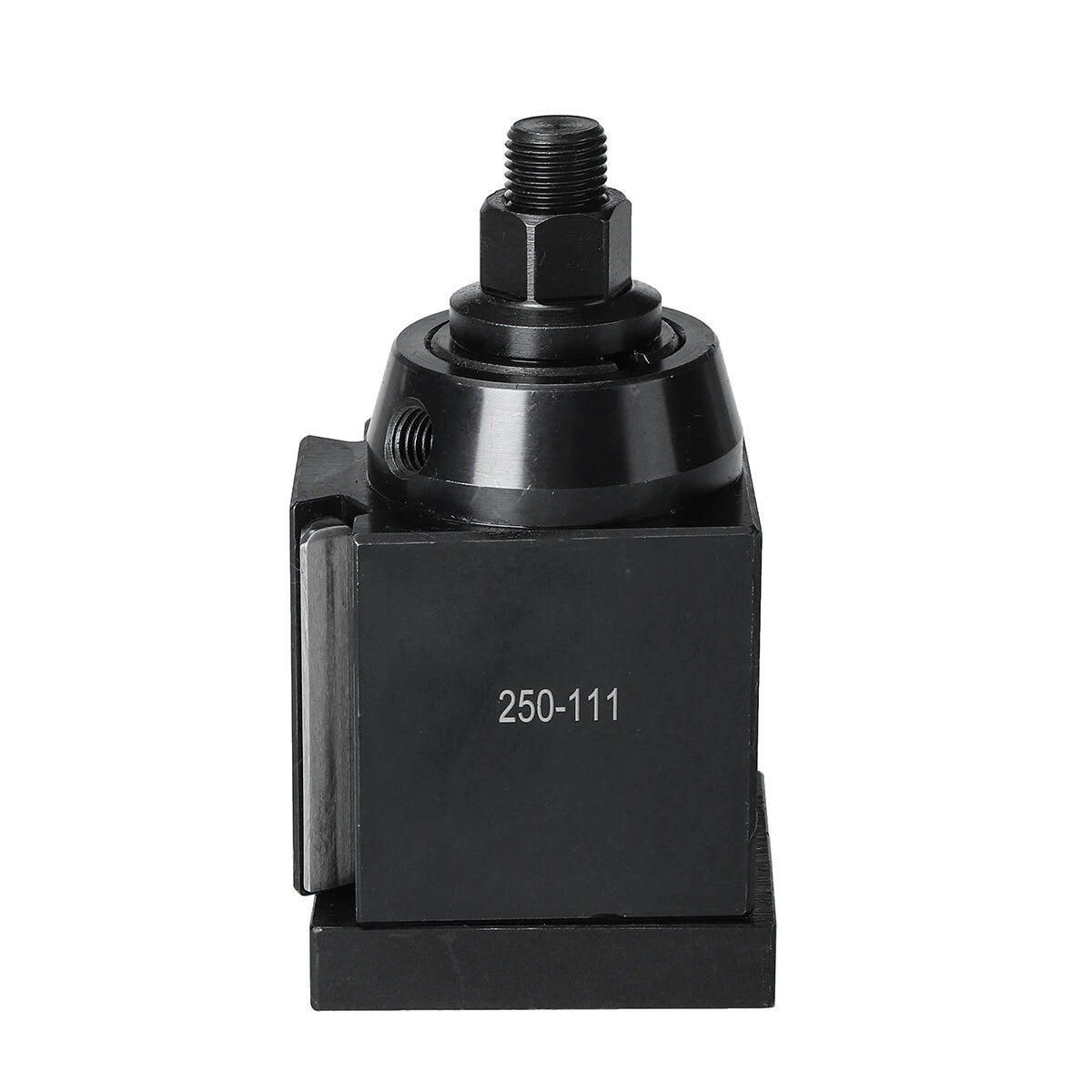

• For Model 250-111:
• A (in): 2-1/2
• B (in): 3-7/8
• C (in): 2-1/4
• D (in): 9/16
• Swing Diameter (in): 12
• Weight (kg): 2.23

Package Included

• Type A: 1 x 250-101 Tool Holder
• Type B: 1 x 250-102 Tool Holder
• Type C: 1 x 250-104 Tool Holder
• Type D: 1 x 250-107 Tool Holder
• Type E: 1 x 250-110 Tool Holder
• Type F: 1 x 250-111 Tool Holder
