Multi-Function LCR-T7 Transistor Tester with Full Color Display for Capacitance, Resistance, Diode, Triode, NPN, PNP, MOSFET

Product Description

This highly versatile and cost-effective transistor detector is perfect for various electronic testing needs. It can efficiently detect components such as NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, triacs, IGBTs, JFETs, and batteries.

Key Features:

• Compatible with a wide range of electronic components including zener diodes.
• Equipped with self-calibration for enhanced accuracy.

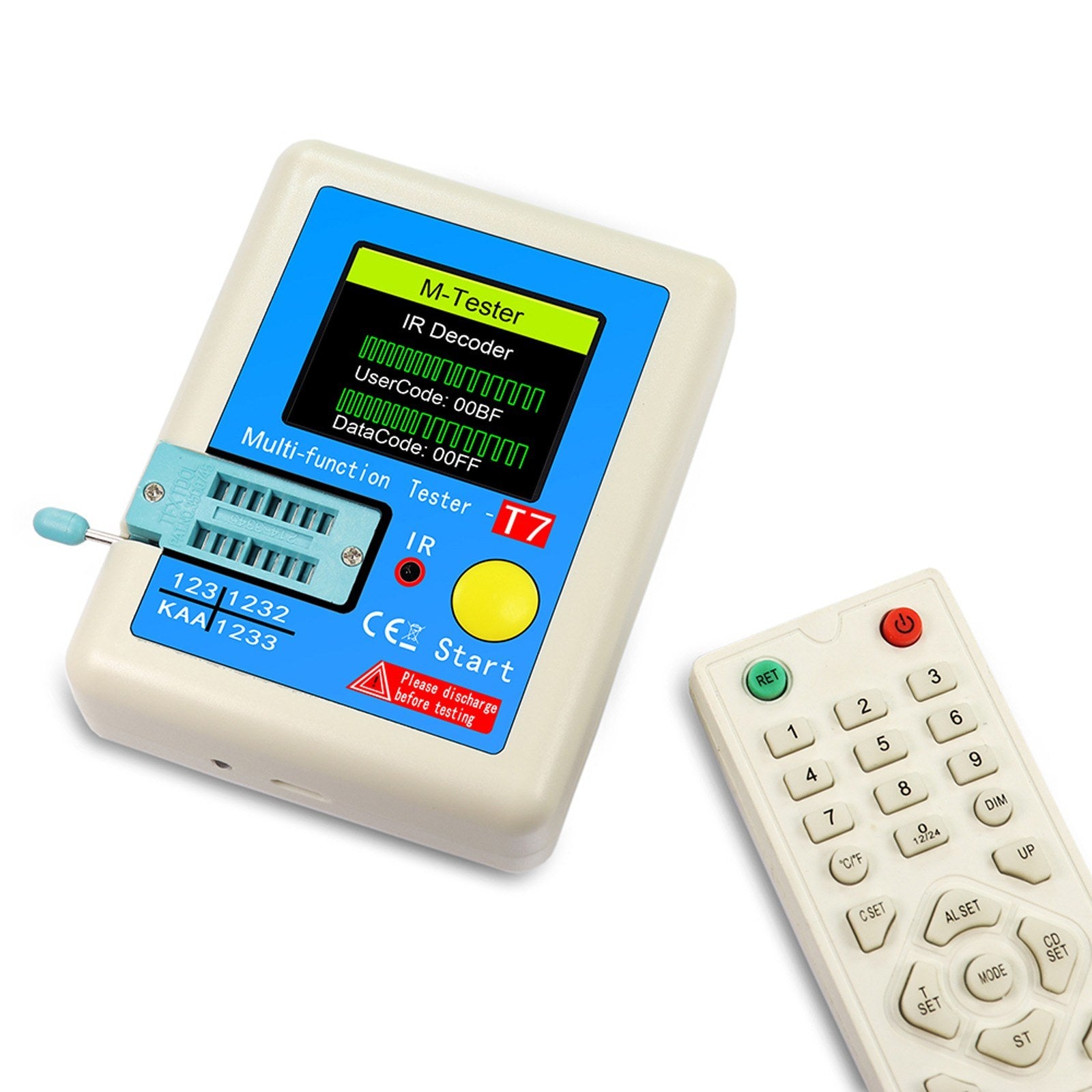

• Features infrared remote control decoding and waveform display.
• Simple one-button operation with automatic detection and shutdown functionality.

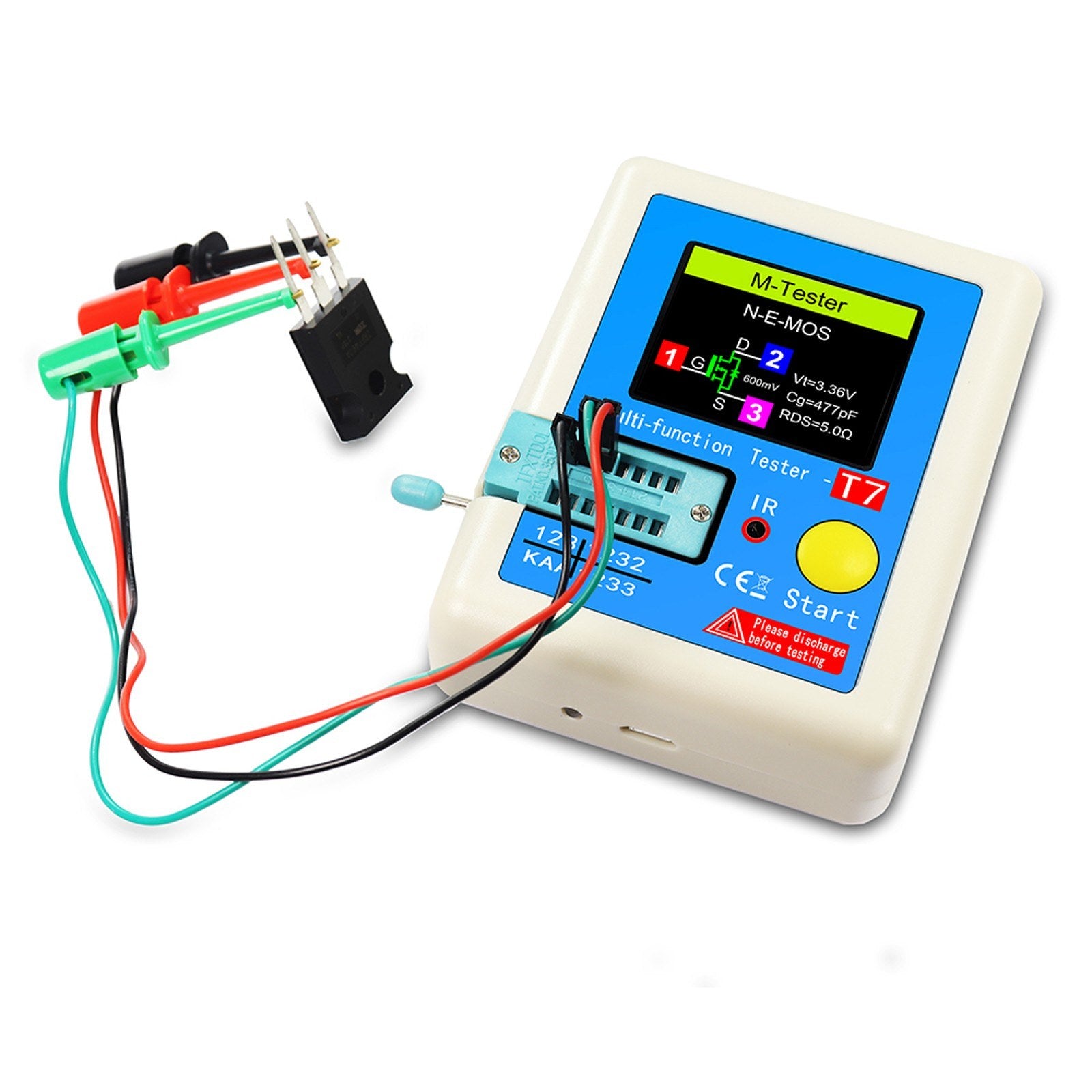

• Components are easily tested by placing their pins in the designated area and engaging the handle, with results displayed clearly on the backlit color TFT screen.

Specifications:

• Material: ABS
• Power Mode: Rechargeable Lithium Battery

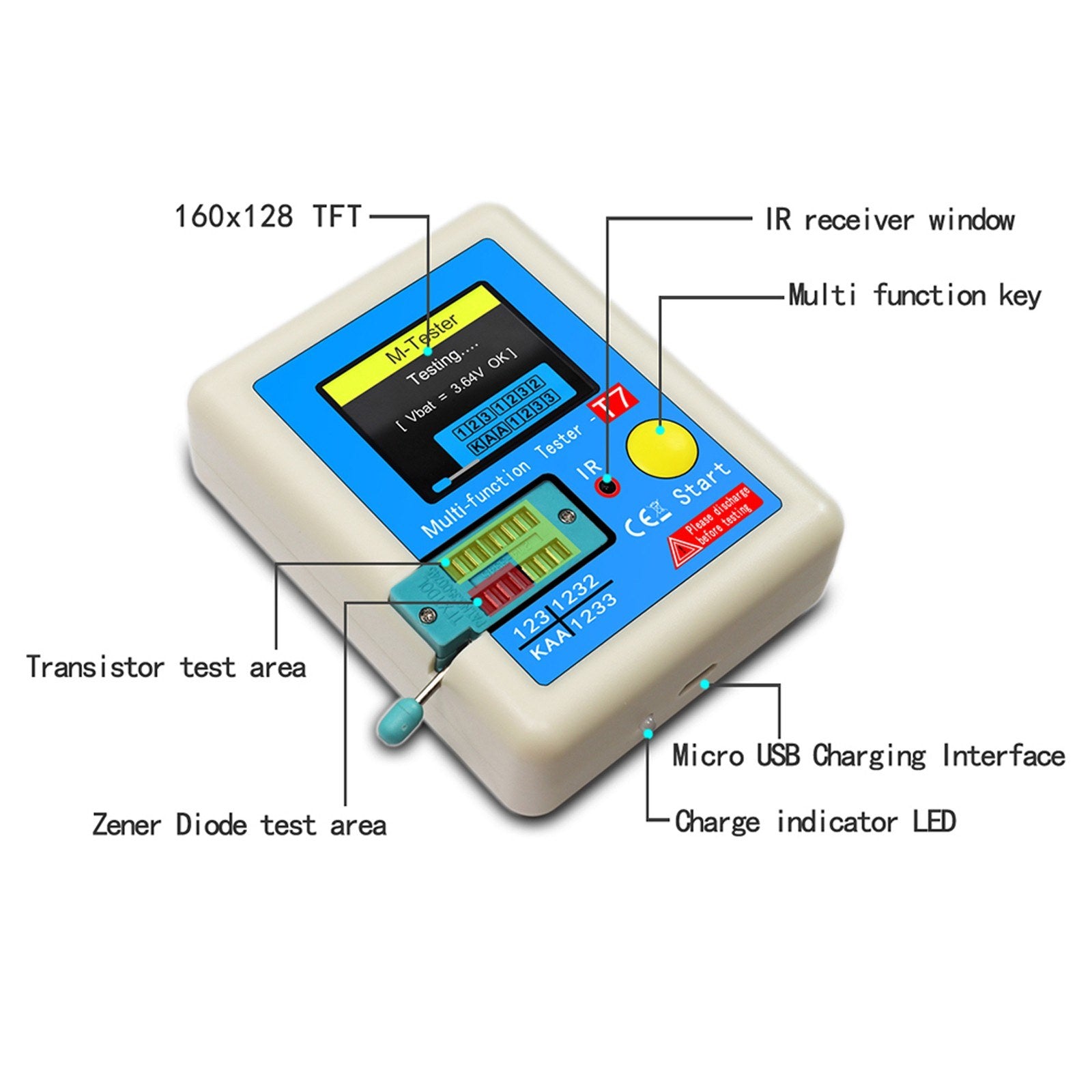

• Display: 160 x 128 TFT Screen
• Diode Range: Forward voltage <4.50V
• Zener Diode Test Range: Transistor: 0.01-4.5V, Zener Diode: 0.01-20V
• Triac Range: Gate trigger current <6mA
• Capacitance: 25pF-100mF
• Resistor: 0.01-50MΩ
• Inductor: 0.01mH-20H
• Battery Testing Range: 0.1-4.5V

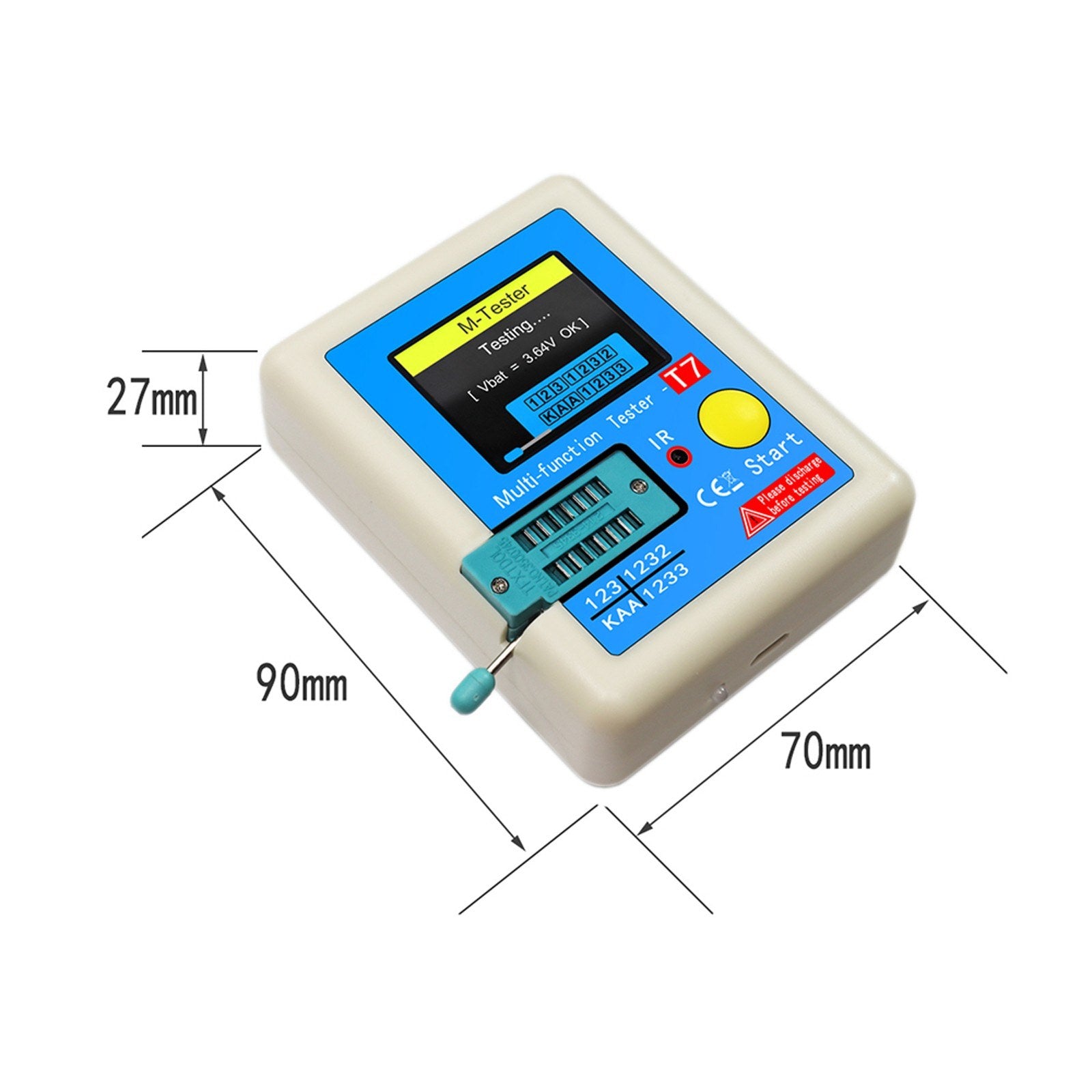

• Item Size: 9 x 7 x 2.7mm / 3.5 x 2.8 x 1.1in
• Item Weight: 84g / 2.9oz
• Package Size: 19 x 10 x 3cm / 7.5 x 3.9 x 1.2in
• Package Weight: 132g / 4.7oz

Note:

• Ensure all electronic components are discharged before testing to protect the detector.
• If the internal battery voltage is below 3V, charge before use.
• Use a 5V battery or USB interface for charging.

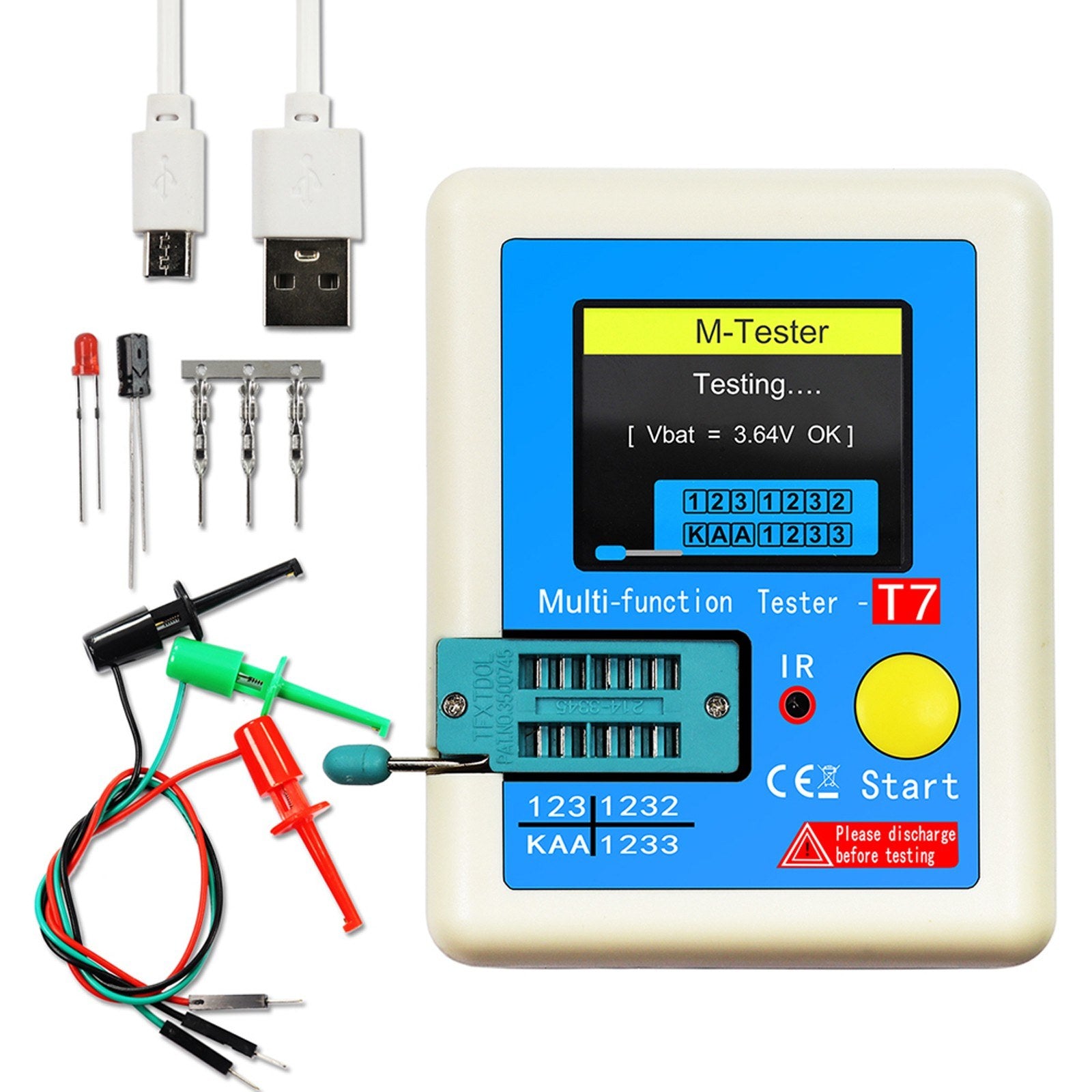

Package Includes:

• 1 x Transistor Tester
• 1 x Electronic Component Set
• 1 x Cable
• 3 x Test Hooks
