BSIDE A2 TechMaster TM-2000 Digital Multimeter, Auto-Range Electrical Tester, LCD Display, 6000 Count Precision

Product Features

• Versatile Functionality: This meter offers automatic identification of AC voltage, DC voltage, resistance, continuity, and more. It eliminates the need for multiple specialized tools, making it a versatile solution for various electrical measurement needs.
• Wide Measuring Range: With a maximum display value of 6000 digits and full measuring range overload protection, this meter allows users to measure a wide range of values accurately. Whether it's voltage, current, resistance, or capacitance, this device has you covered.
• User-Friendly Design: The LCD display provides clear readings, and the self-indicating polarity indication simplifies the measurement process. Additionally, the over-range display and automatic range selection feature make it convenient and hassle-free to use.
• Reliable and Precise: Offering high accuracy with its specified tolerances, the meter ensures reliable measurements in various conditions. The sampling time of approximately 0.4 seconds ensures quick and efficient readings, enhancing productivity.
• Compact and Portable: With a lightweight design weighing only 95g and a compact dimension of 146 x 44 x 25.2mm, this meter is highly portable and easy to carry. It is suitable for both professional electricians and DIY enthusiasts, allowing them to take it wherever they go.

Specifications

Feature	Specification
Automatic range	Yes
Full measuring range overload protection	Yes
Auto mode	Automatic identification of AC voltage, DC voltage, Resistance, and Continuity
Display	LCD
Maximum display value	6000 digits
Polarity indication	Self-indicating, '-' means Negative polarity
Over-range display	'OL' or '-OL'
Sampling time	Approximately 0.4 seconds
Automatic Power off time	15 minutes
Battery low voltage indication	LCD display Ca symbol
Operational temperature and humidity	0 to 40℃, 0 to 80% RH
Storage temperature and humidity	-10 to 60℃, 0 to 70% RH

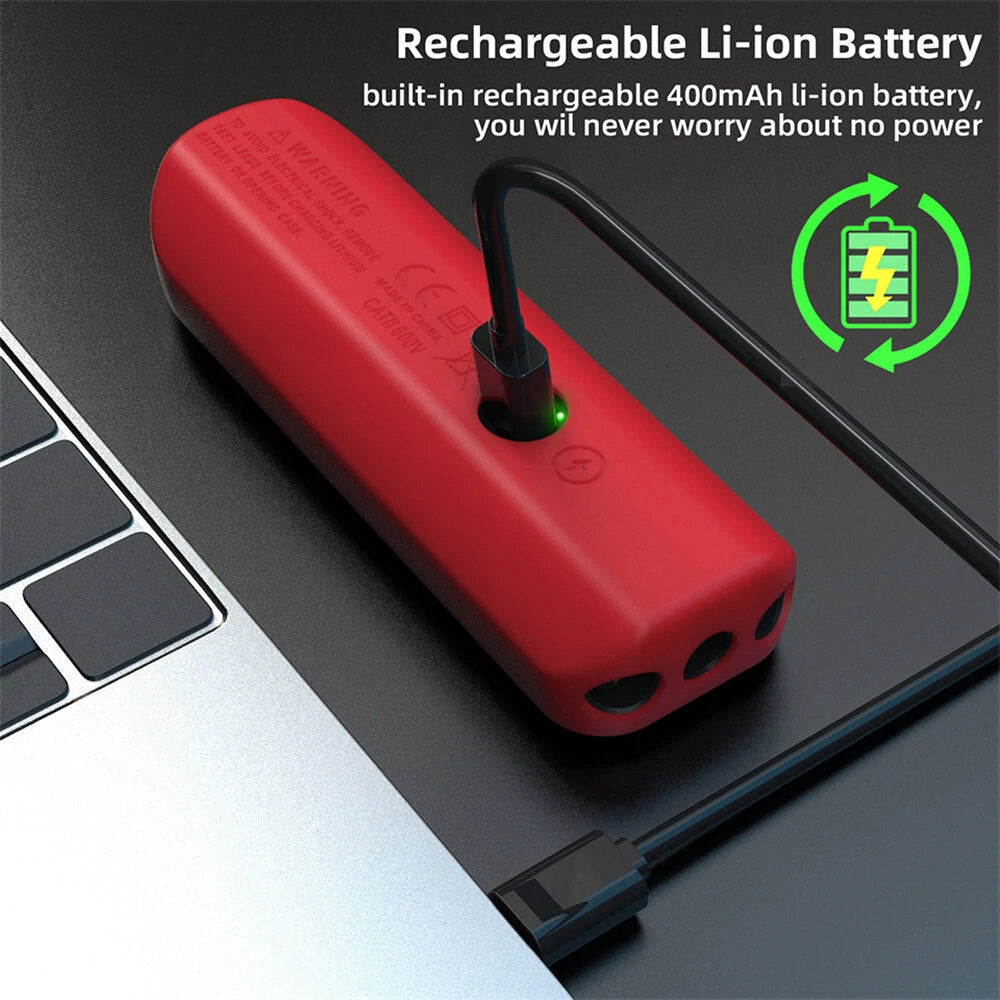

Battery	3.7V Li-ion battery inside
Operating altitude	≤ 2000m

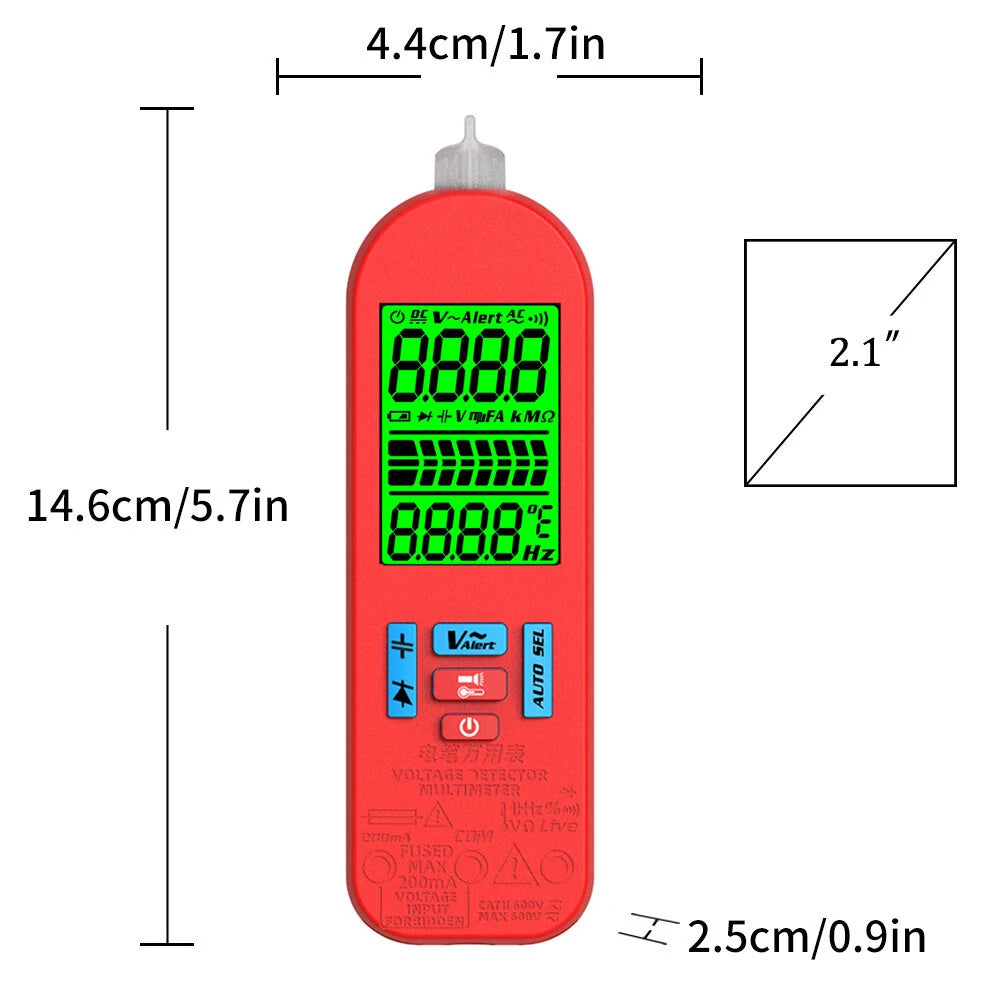

Boundary dimension	146 x 44 x 25.2mm
Weight	95g

Technical Index

Test Condition	Specification
Environmental temperature	18 ℃ to 28 ℃
DC voltage - Resolution	0.01V
DC voltage - Range	0V to 620V (DC mode), 0.8V to 620V (Auto mode)
DC voltage - Accuracy	±(0.8%+3counts)
AC voltage - Resolution	0.01V

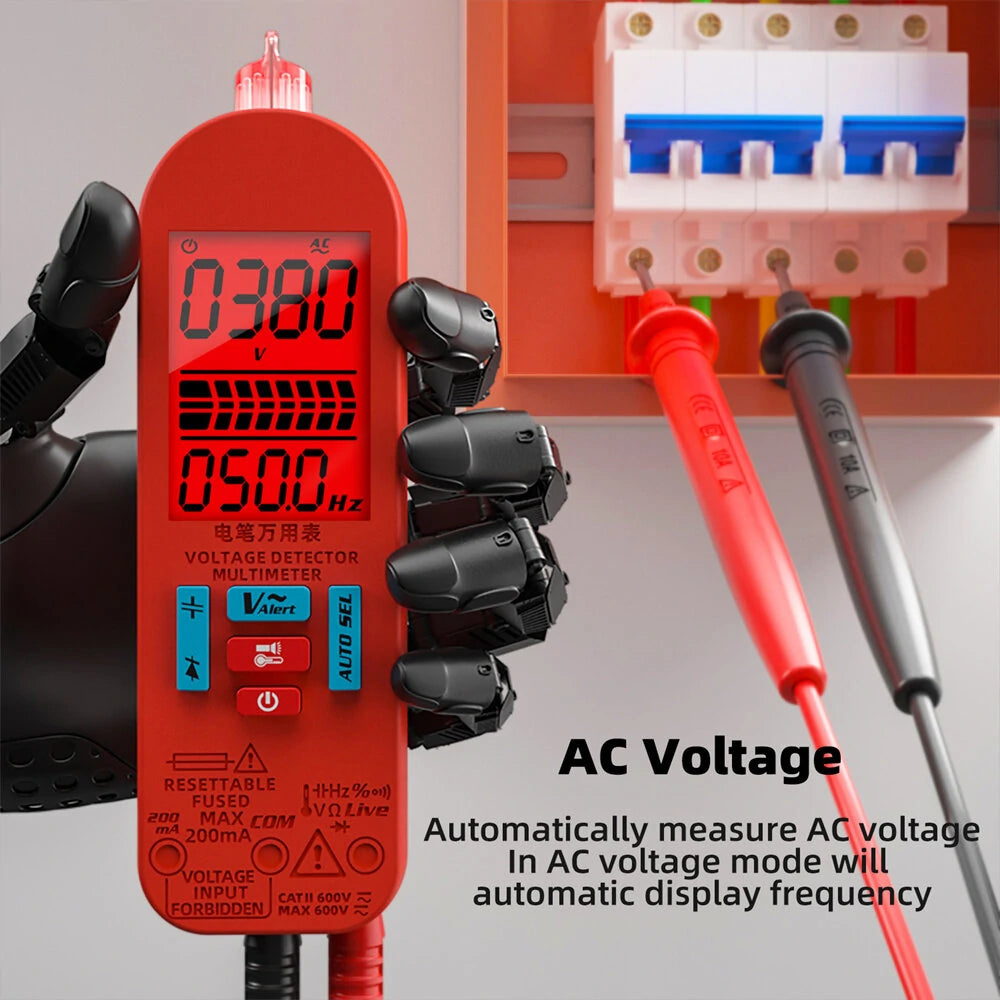

AC voltage - Range	60mV to 620V (AC mode), 0.8V to 620V (Auto mode), 10V to 620V (VFC mode)
AC voltage - Accuracy	±(1.2% +5counts) for 60mV to 620V (AC mode), ±(4.0% +3counts) for 0.8V to 620V (Auto mode), ±(4.0% +3counts) for 10V to 620V (VFC mode)
AC voltage - Frequency range	10Hz to 1000Hz (2V to 620V)
DC Current - Resolution	0.1mA
DC Current - Range	1.0 to 610mA
DC Current - Accuracy	±(1.5%+3counts)
AC Current - Resolution	0.1mA
AC Current - Range	1.0 to 610mA
AC Current - Accuracy	±(1.5%+3counts)
Resistance - Resolution	0.1Ω
Resistance - Range	0Ω to 6.000MΩ, 6.000MΩ to 60.00MΩ
Resistance - Accuracy	±(1.2%+3counts) for 0Ω to 6.000MΩ, ±(2.0%+10counts) for 6.000MΩ to 60.00MΩ
Capacitance - Resolution	0.001μF
Capacitance - Range	0.5

Package Included

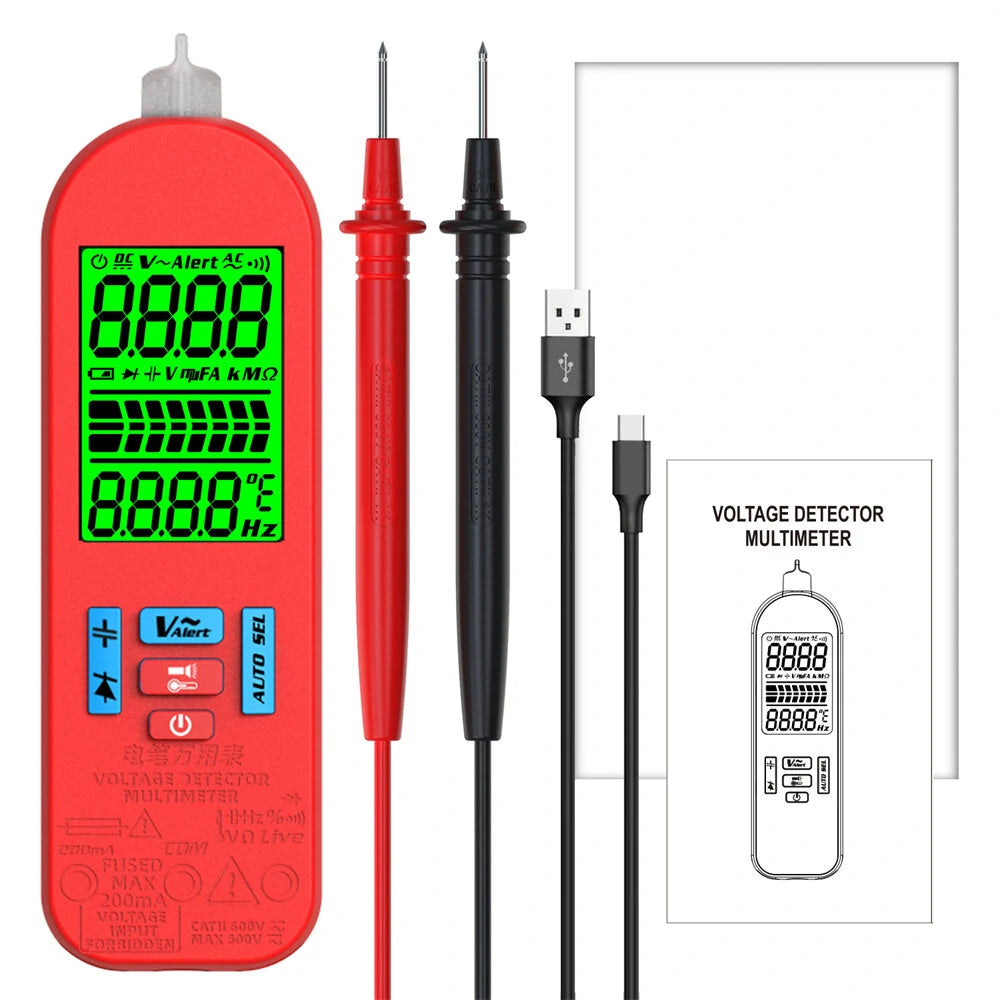

Type A:

• 1 x Multimeter
• 1 x Test Lead
• 1 x USB Cable
• 1 x Manual

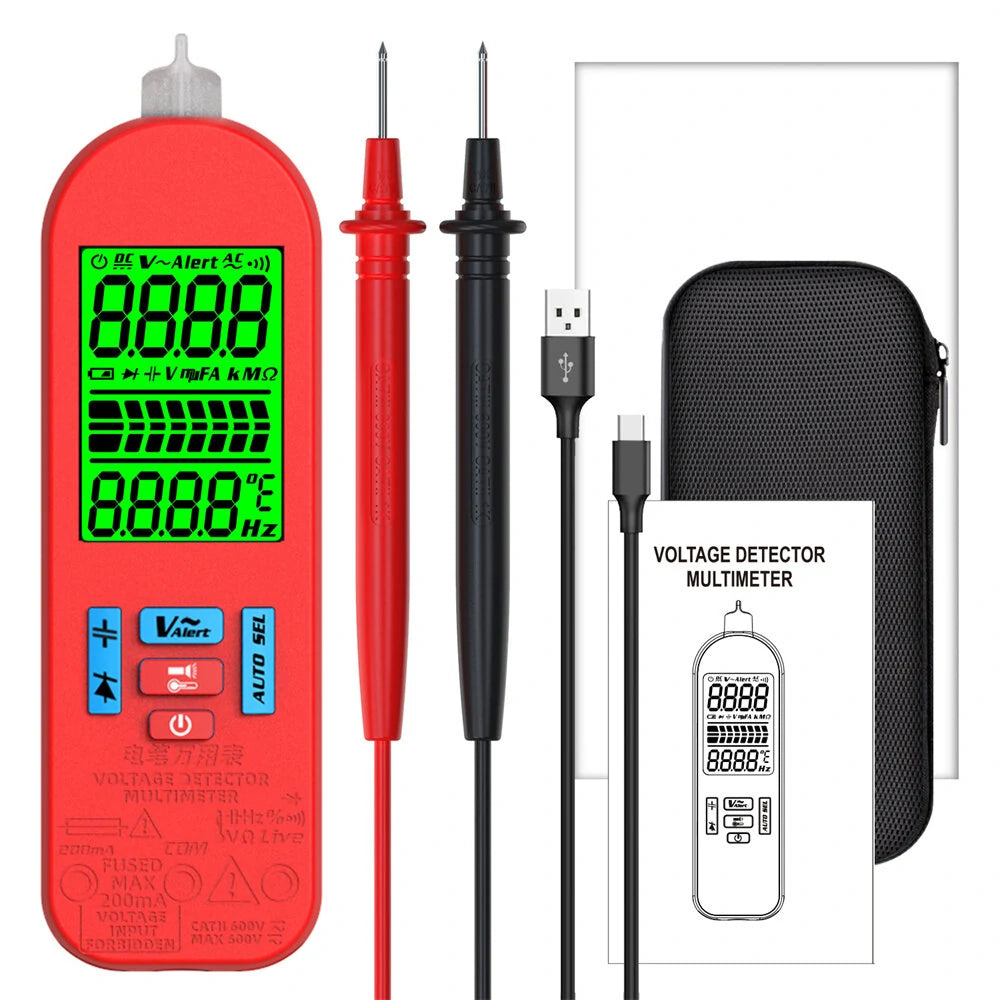

Type B:

• 1 x Multimeter
• 1 x Test Lead
• 1 x USB Cable
• 1 x EVA Box
• 1 x Manual
