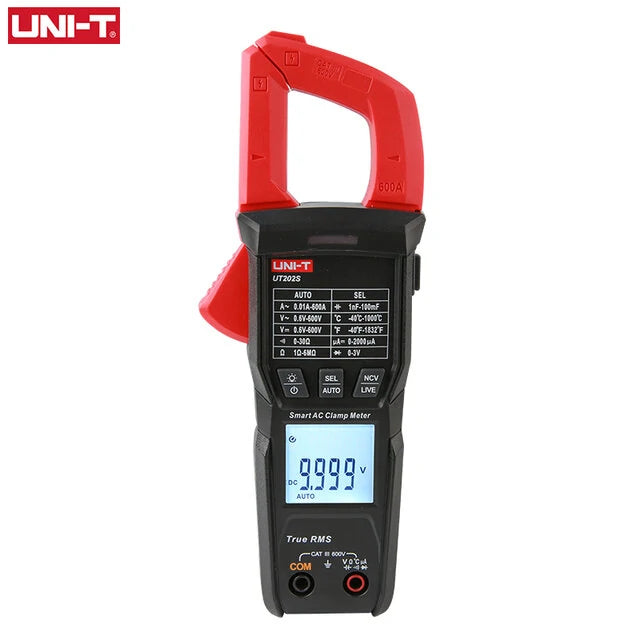

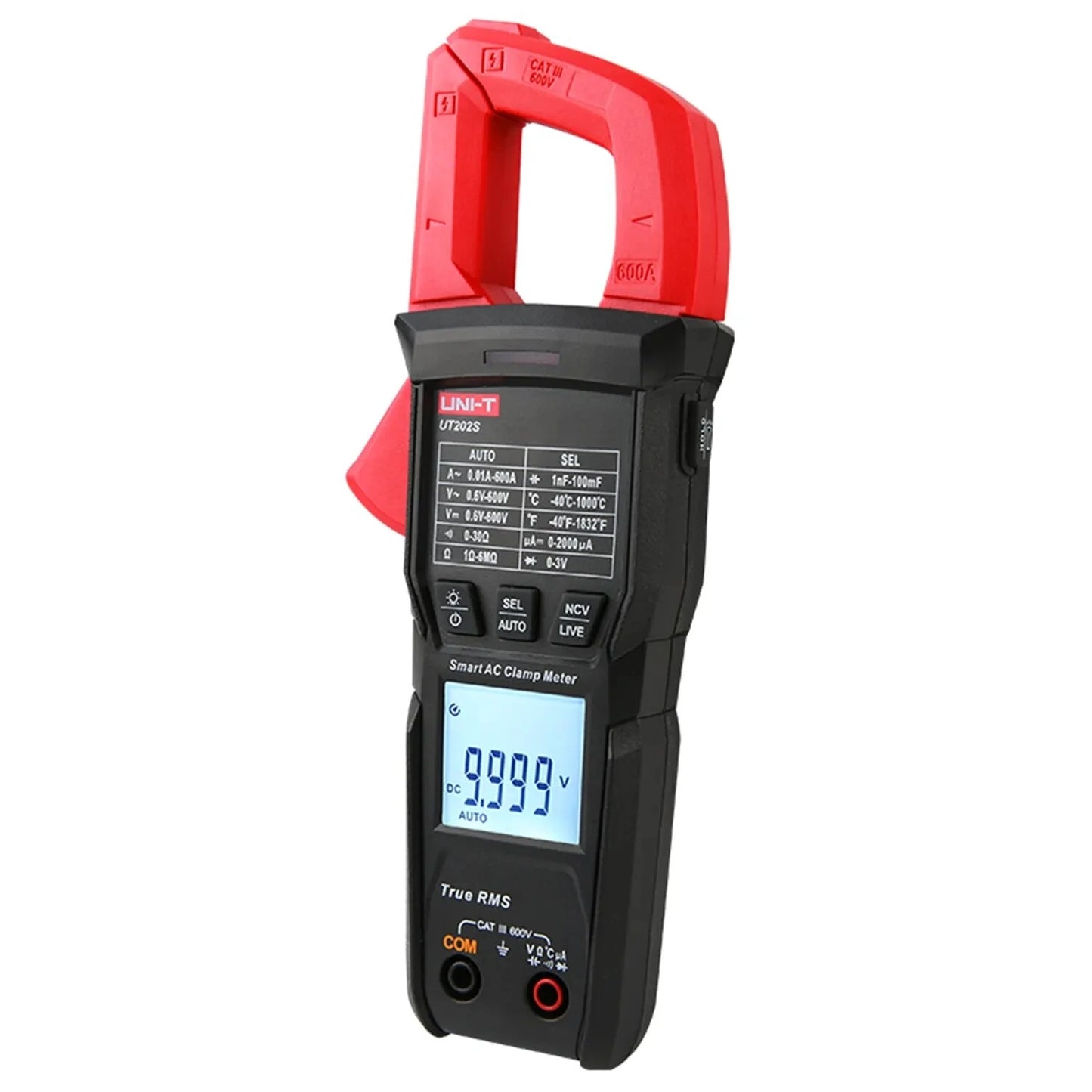

UT202S AC Clamp Meter

The UT202S is a handheld true RMS digital clamp meter designed for stable performance and high reliability. With a novel structure and enhanced safety features, this meter offers full-featured automatic range with a 9999-count display for superior performance.

Key Features

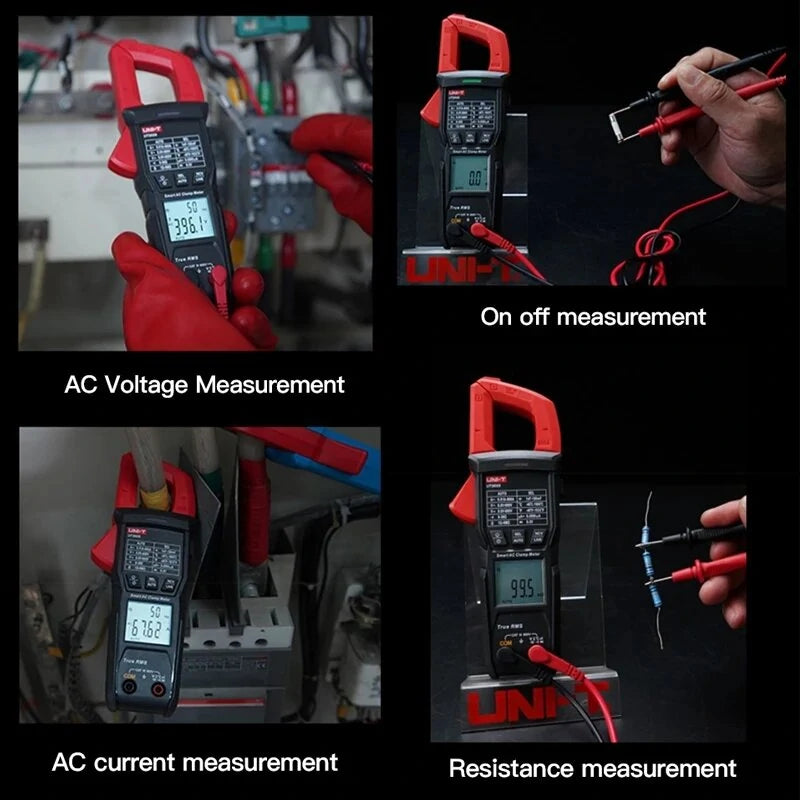

• Automatic identification and measurement of AC/DC voltage, AC current, resistance, and circuit continuity.

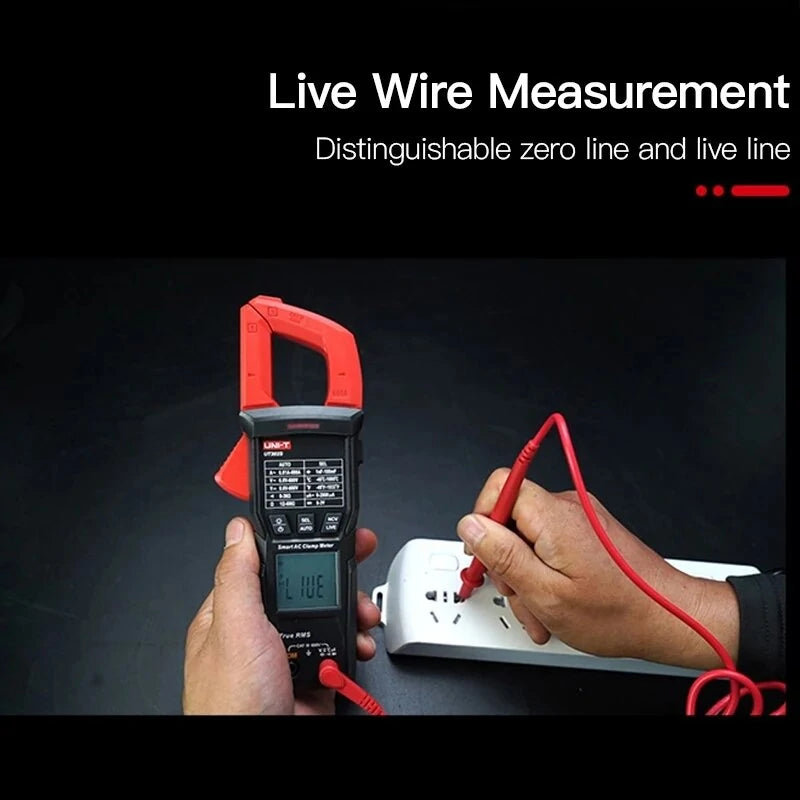

• Button selection for measuring capacitance, diode, DC microampere current, live wire neutral detection (LIVE), temperature, and non-contact AC voltage sensing (NCV).

Specifications

• DC Voltage (V): 600V ±(0.5%+3)
• AC Voltage (V): 600V ±(0.8%+3)
• AC Current (A): 600A ±(2.5%+5)
• DC Current (A): 2000µA ±(0.8%+5)
• Resistance (Ω): 6MΩ ±(0.8%+3), 100MΩ
• Frequency (Hz): 40Hz~1000Hz ±(1.0%+5)

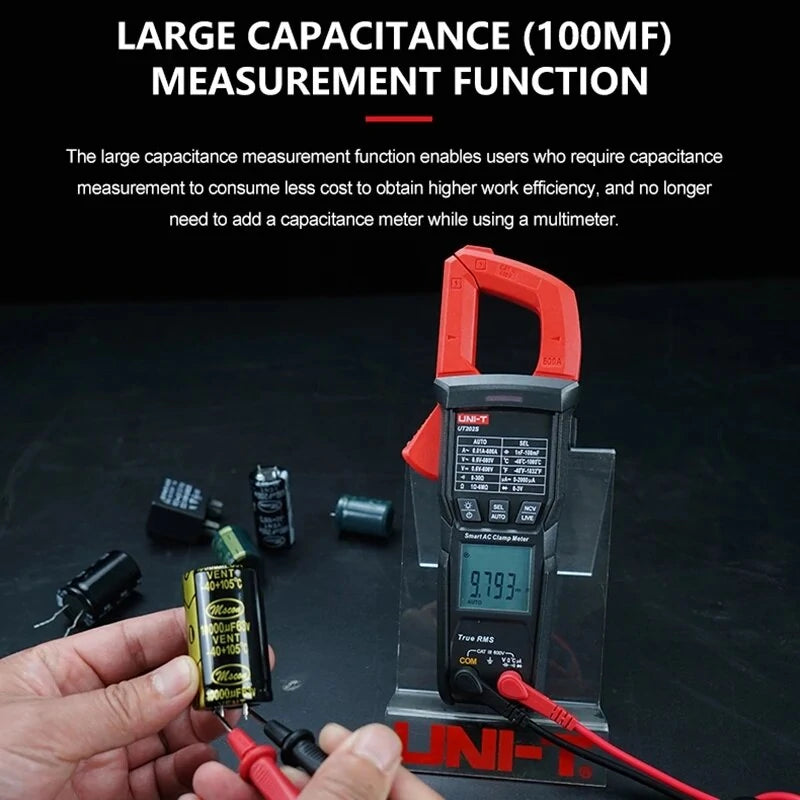

• Capacitance (F): 100mF ±(4%+5)
• Temperature: -40°C~1000°C / -40°F~1832°F ±5/±9

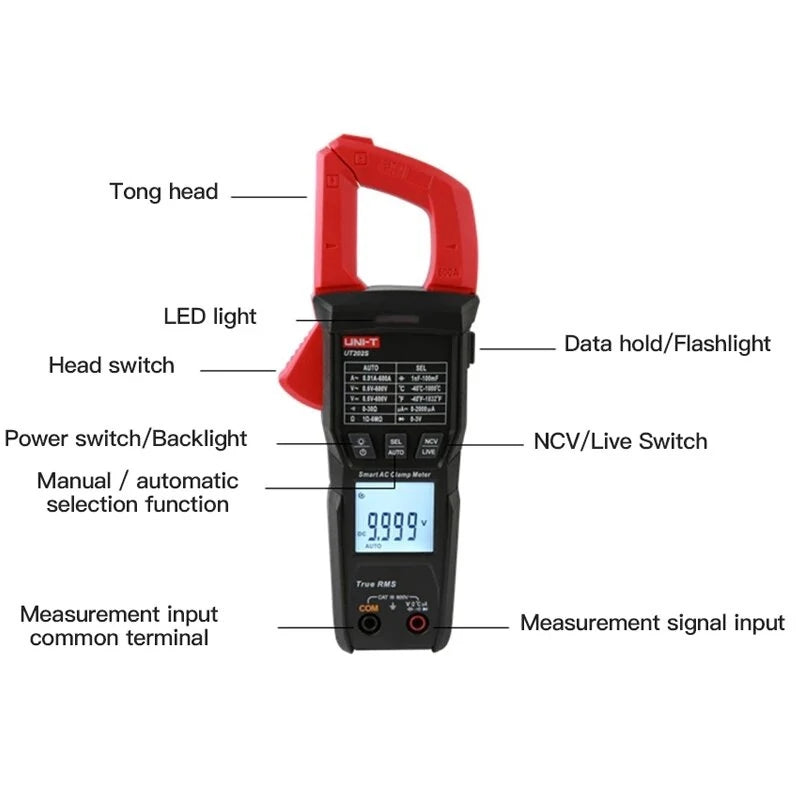

Product Features

• Jaw Opening: 28mm, suitable for large conductors
• Easy one-handed operation with a button design
• Dual display for V+Hz and A+Hz

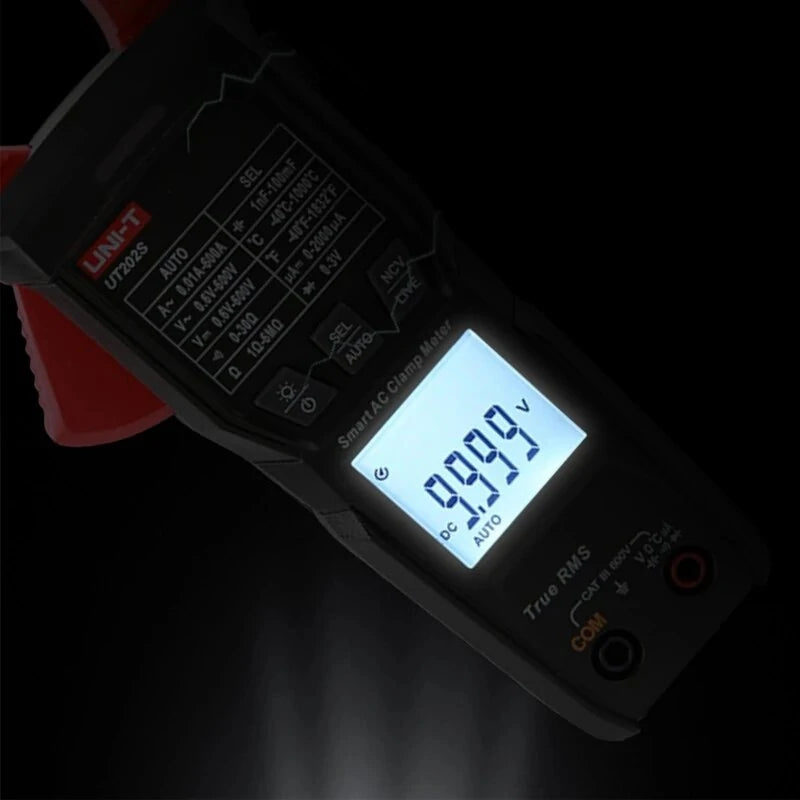

• Bright backlight and built-in flashlight for convenience in low-light areas
• Non-contact voltage sensing (NCV) for enhanced safety
• Audible and visual indication for continuity
• Automatic power off after approximately 15 minutes to save battery life
• Low battery indication when below 2.4V
• Safety rating: CAT III 600V

General Characteristics

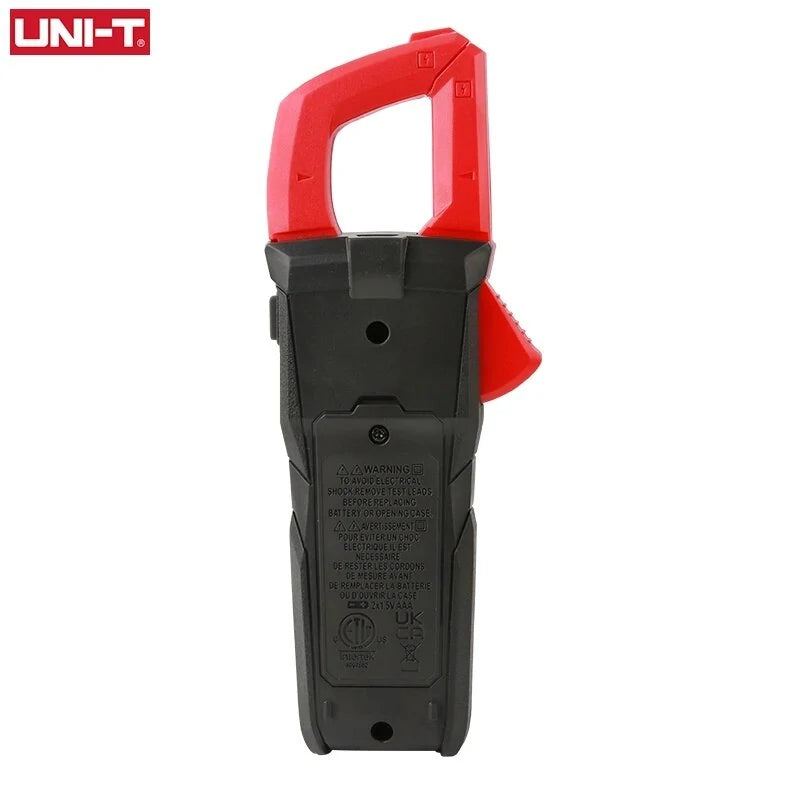

• Power Supply: 2 x AAA 1.5V batteries (not included)
• Product Color: Red + Gray
• Product Size: 201.5mm x 47mm x 28mm
• Included Accessories: Test leads and temperature probe

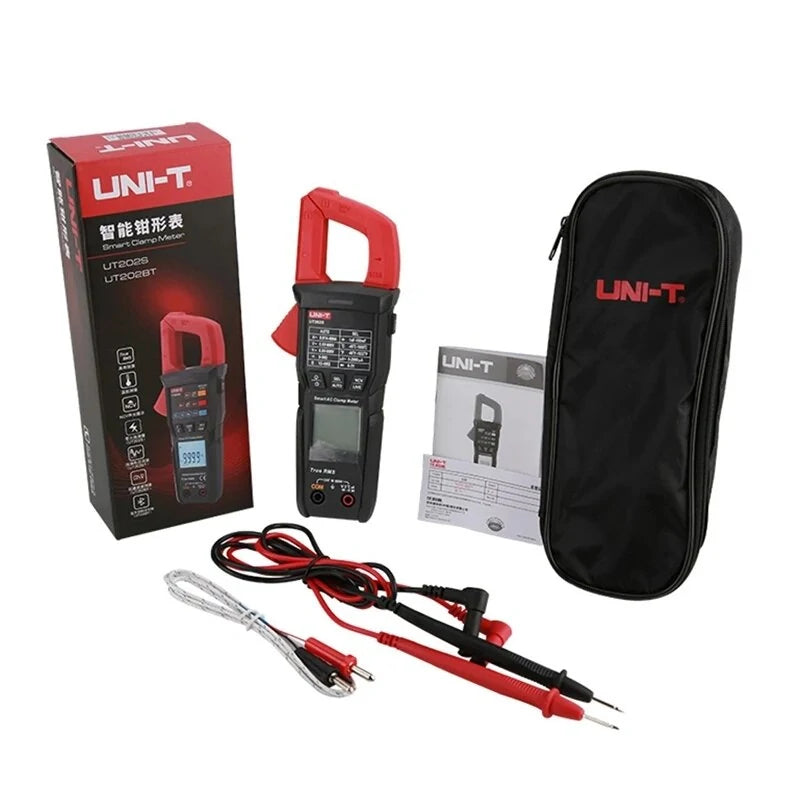

Package Contents

• 1 x UT202S AC Clamp Meter (battery not included)
• 1 x Set of Test Leads
• 1 x Temperature Probe
• 1 x Cloth Bag
• 1 x User Manual
