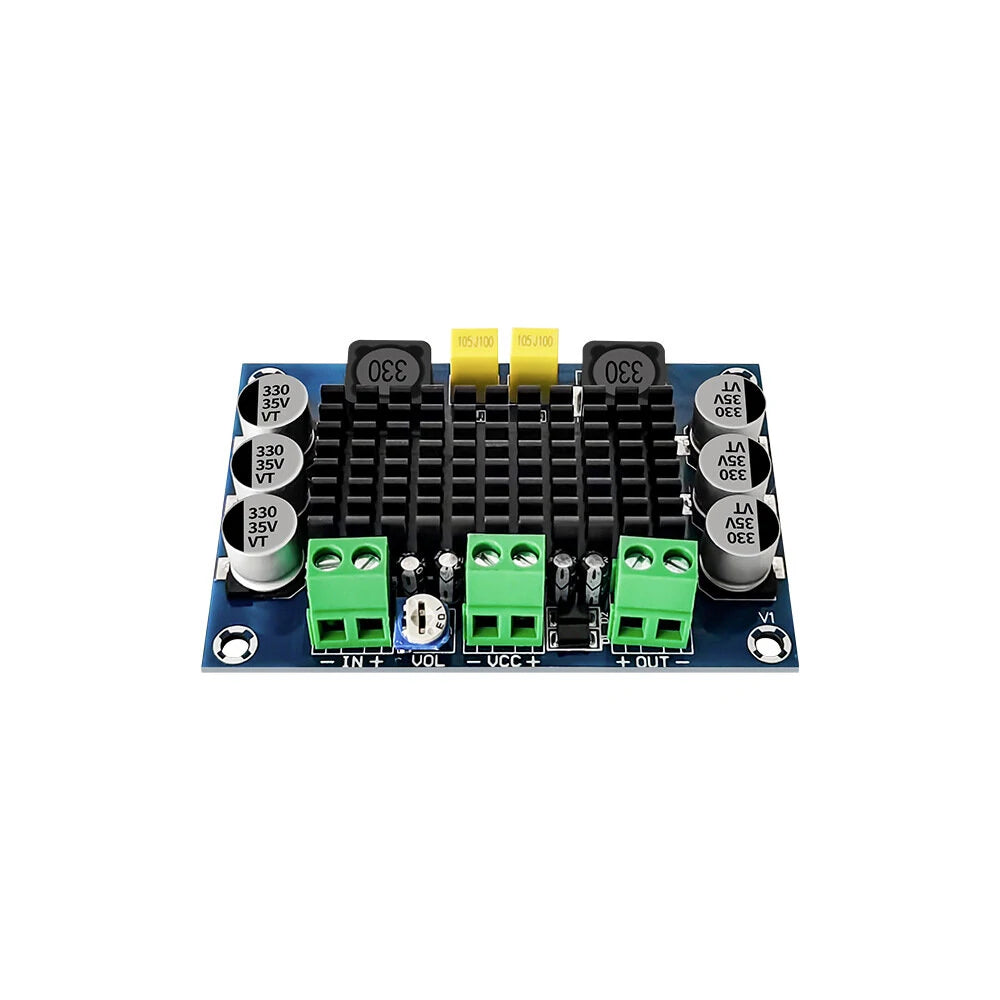

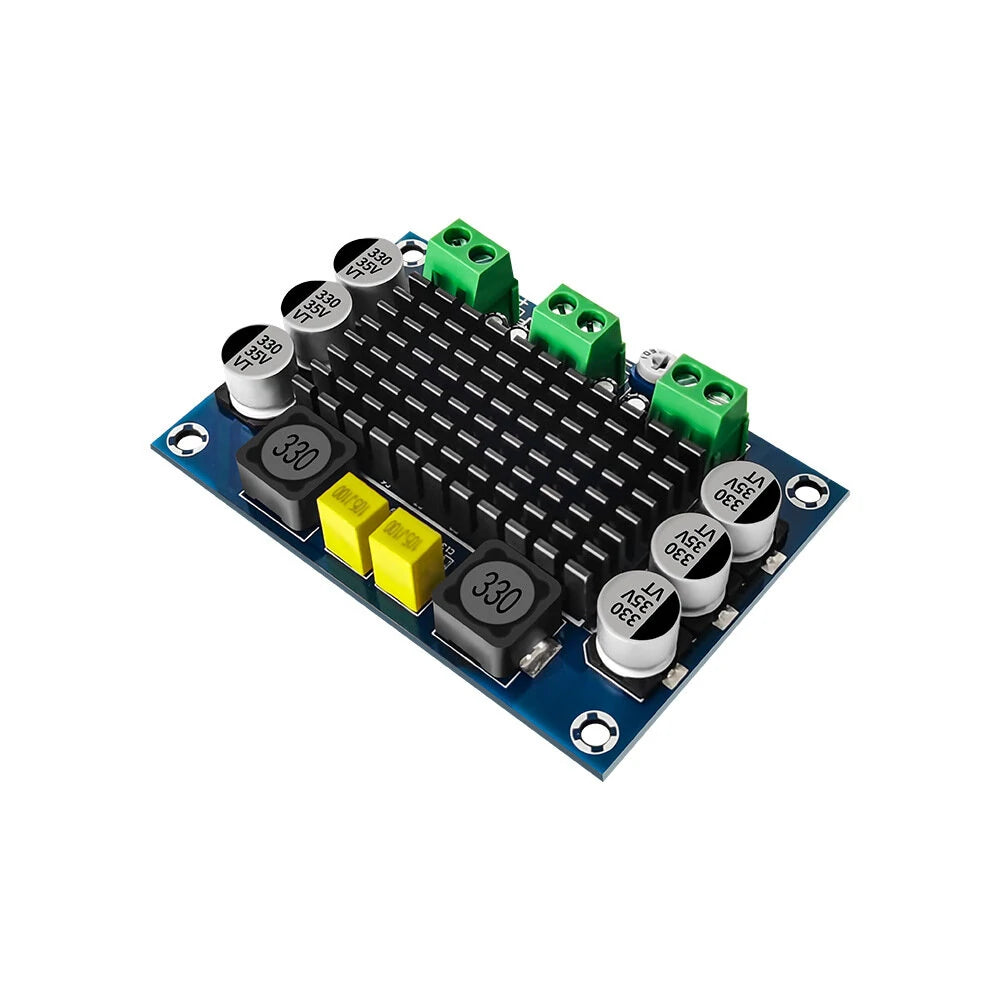

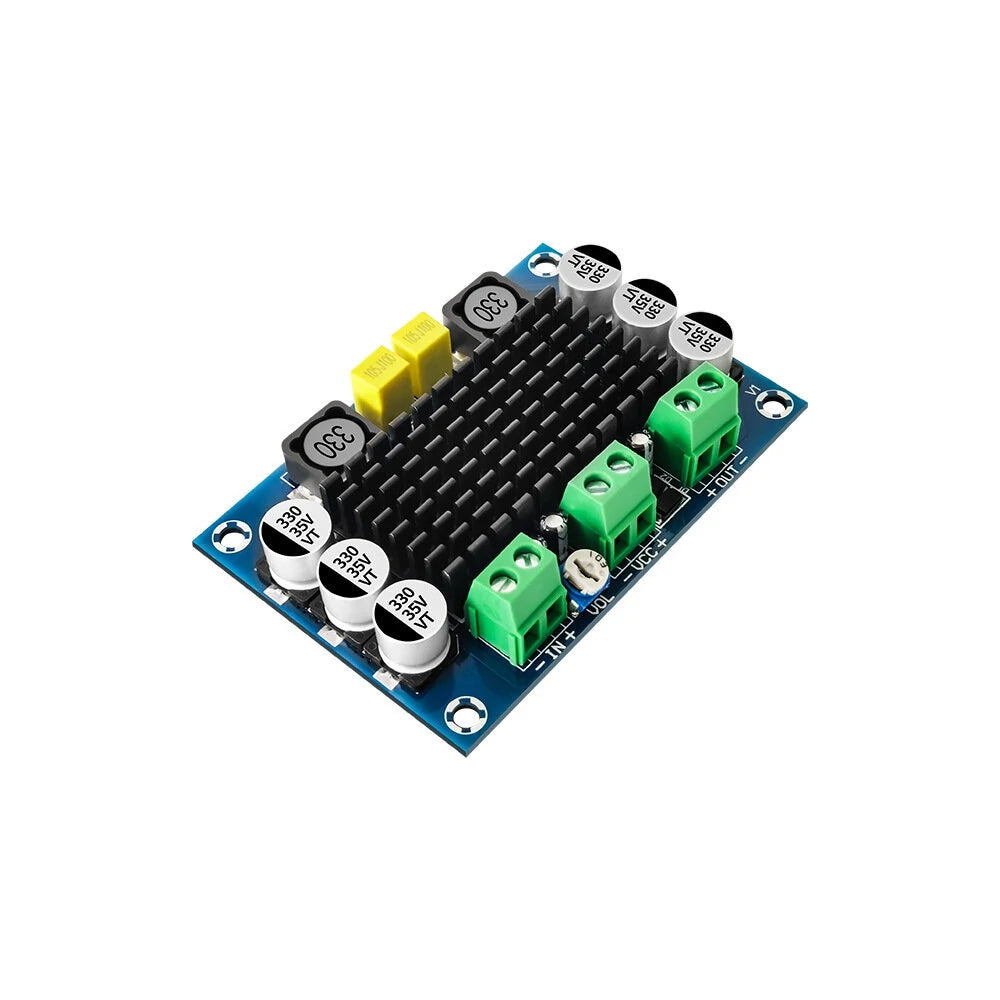

100W XH-M542 Digital Audio Amplifier Board 12-26V TPA3116

Introducing the Digital Audio Amplifier Board, a high-performance audio solution designed for precision and reliability.

Specifications:

• Product Name: Digital Audio Amplifier Board
• Type: XH-M542
• Chip Model: TPA3116D2
• Input Voltage: DC 12-26V
• Input Current: 3A or more
• Peak Power: Up to 100W
• Output Impedance: 2-8Ω
• Input Impedance: 10KΩ
• Signal to Noise Ratio: 100dB
• Number of Channels: Mono
• Net Weight: 54g
• Dimensions: 79 x 54 x 16mm

Features:

1. European-style Terminal: Built to European standards, ensuring excellent flame retardancy, safety, and environmental protection. The large terminal design focuses on power and quality.
2. Metallized Polyester Film Capacitor: Offers high pulse strength, reliability, and self-healing capabilities.
3. Patch Inductance: Regulates current with an opposing self-induced electromotive force, smoothing waveform and reducing pulsation.
4. Chip Aluminum Electrolytic Capacitor: Larger capacity with high-quality soldering for enhanced safety and performance without the risk of short circuits.
5. Convective Cooling Array: Efficient heat dissipation with a higher cooling efficiency design.
6. TPA3116D2 Chip: Manufactured by Texas Instruments, USA, it supports a wide voltage range (12-26V) and includes comprehensive protections against short circuits, overheating, overvoltage, undervoltage, and DC faults. In overload conditions, it reports to the processor to avoid damage.

Package Includes:

• 1 x Digital Audio Amplifier Board
