NanoVNA V2 SAA-2N 3GHz Vector Network Analyzer Kit with 4-Inch Display & 3000mAh Battery

SAA-2N NanoVNA V2.2 Vector Network Analyzer

Introducing the SAA-2N NanoVNA V2.2, a cutting-edge 3GHz vector network analyzer designed by OwOComm. Built under the LGPL license agreement and completely aligned with OwOComm's technical specifications, this device is your go-to solution for precise frequency and network analysis.

Key Features

• Frequency Range: 50kHz - 3GHz
• Frequency Tolerance & Stability: Ensures accurate readings
• Dynamic Range (Calibrated): Up to 70dB (1.5GHz), 60dB (3GHz)
• S11 Noise Floor (Calibrated): -50dB (1.5GHz), -40dB (3GHz)
• Sweep Rate: 100 points/s for fast results

Display & Power

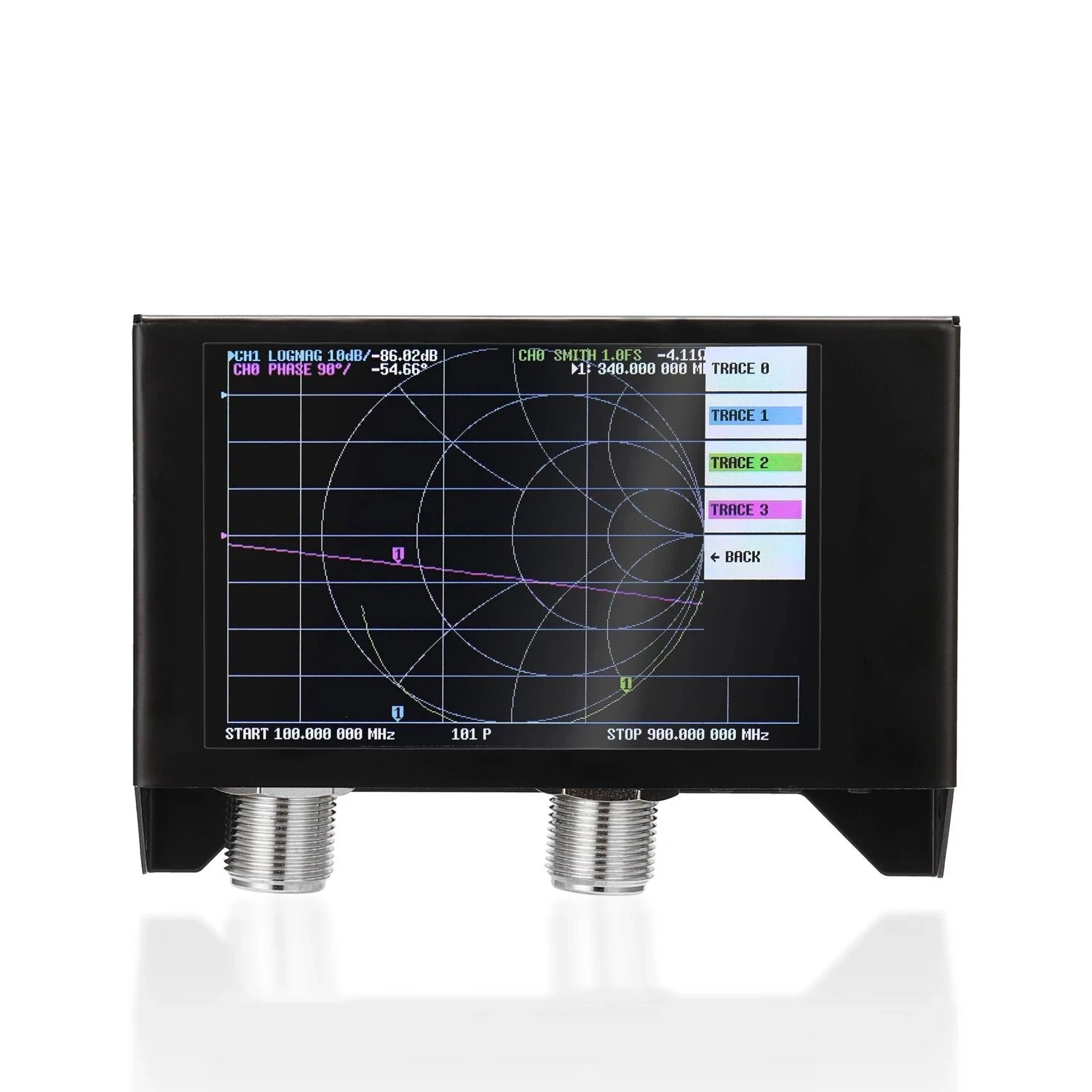

• Display: 3.95 inch, 320 x 480 resolution for clear visuals
• USB Interface: Micro USB for easy connectivity
• Power: USB powered with a maximum charge current of 1A
• Battery: Includes a 3000mAh lithium-ion battery

Sweep Points & Performance

• Maximum Sweep Points (Device): 201
• Maximum Sweep Points (USB): 1024
• Port 2 Return Loss: 20dB typ (1.5GHz), 13dB min (3GHz)

Software Compatibility

• Supported Platforms: Linux, Windows (7+), MacOS (planned)

Important Usage Information

The SAA-2N/NanoVNA V2.2 features a user-friendly interface similar to the NanoVNA, but with an updated technical architecture. Initial calibration data is not loaded at startup, and frequency changes necessitate recalibration or manual retrieval of calibration data. Please consult the user manual thoroughly before use to ensure optimal performance and prevent device damage.

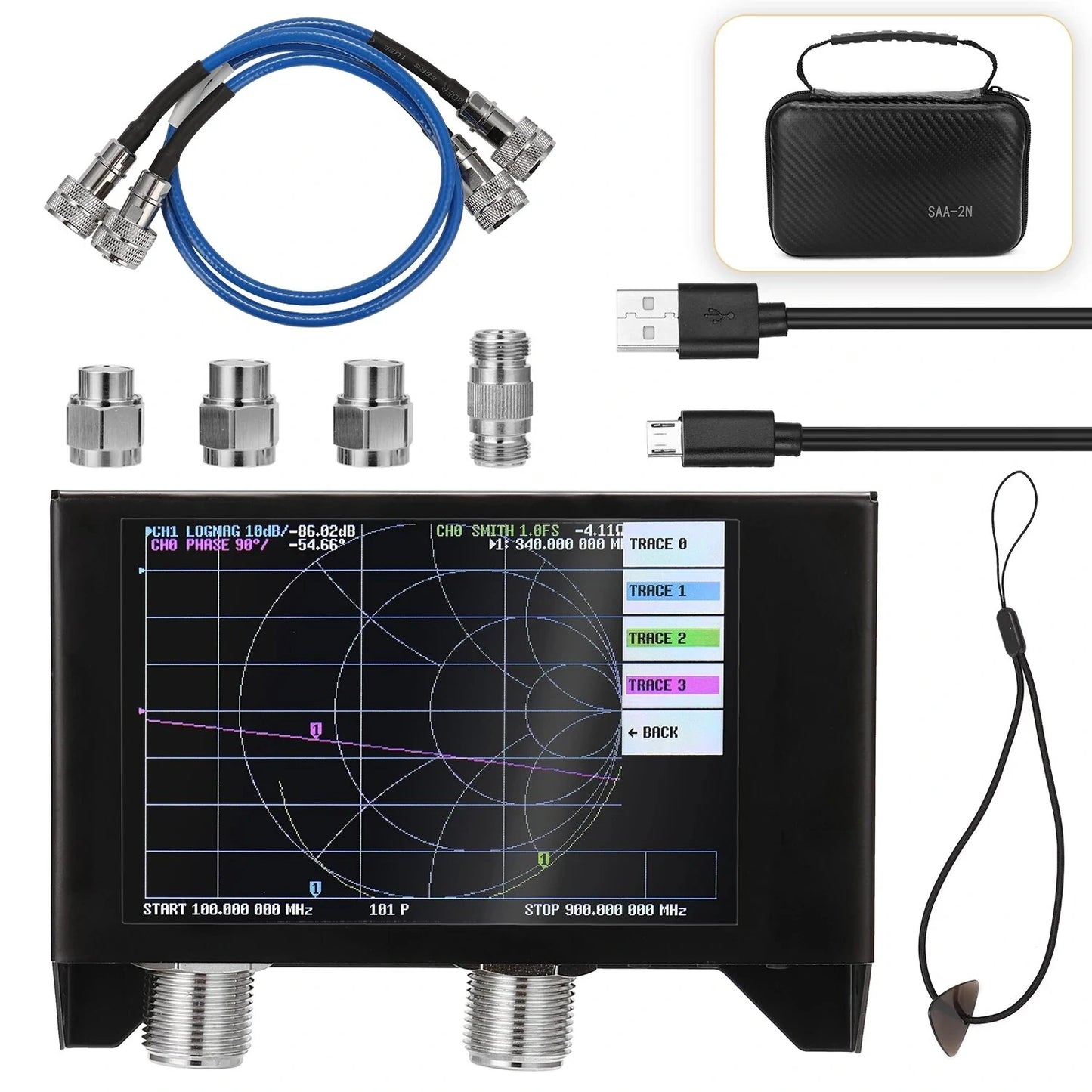

Package Includes

• SAA-2N Host (with 3000mAh battery) x 1
• Micro USB Data Cable x 1

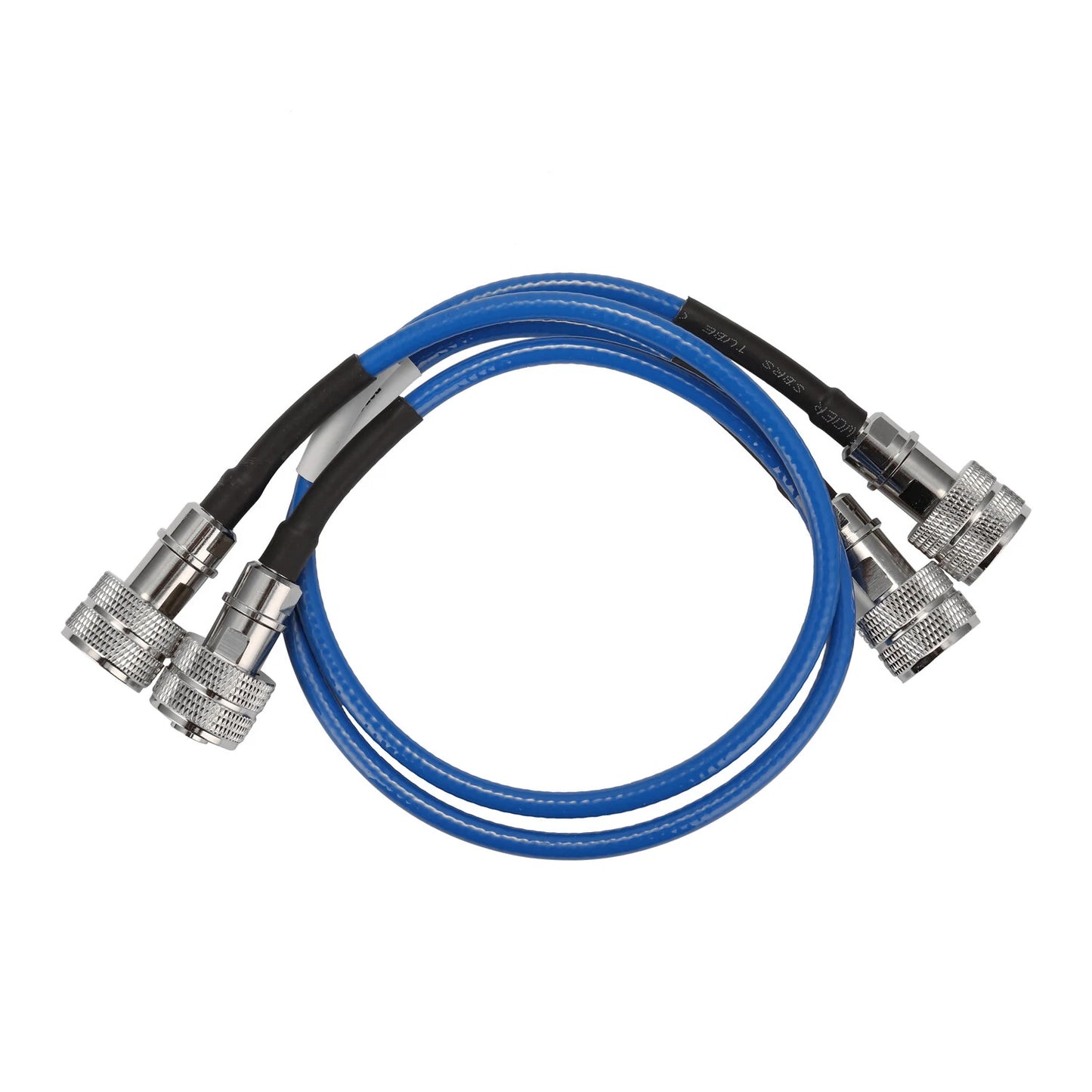

• 50cm N-Type Male to Male RG142-PUR RF Cable x 2

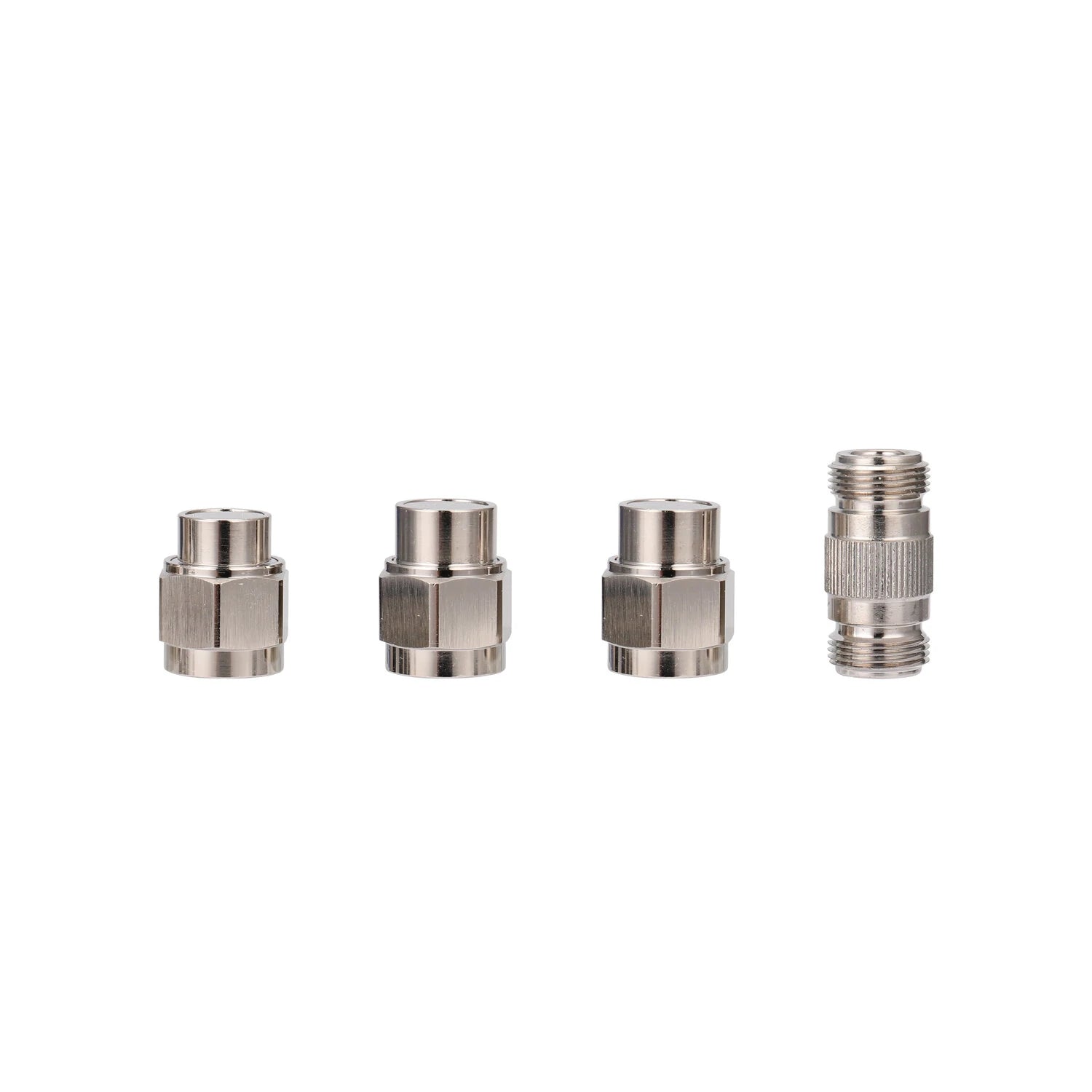

• N-Type Male Calibration Kit - OPEN x 1
• N-Type Male Calibration Kit - SHORT x 1
• N-Type Male Calibration Kit - LOAD x 1
• N-Type Female to Female Connector x 1
• Touch Screen Paddles and Lanyard x 1

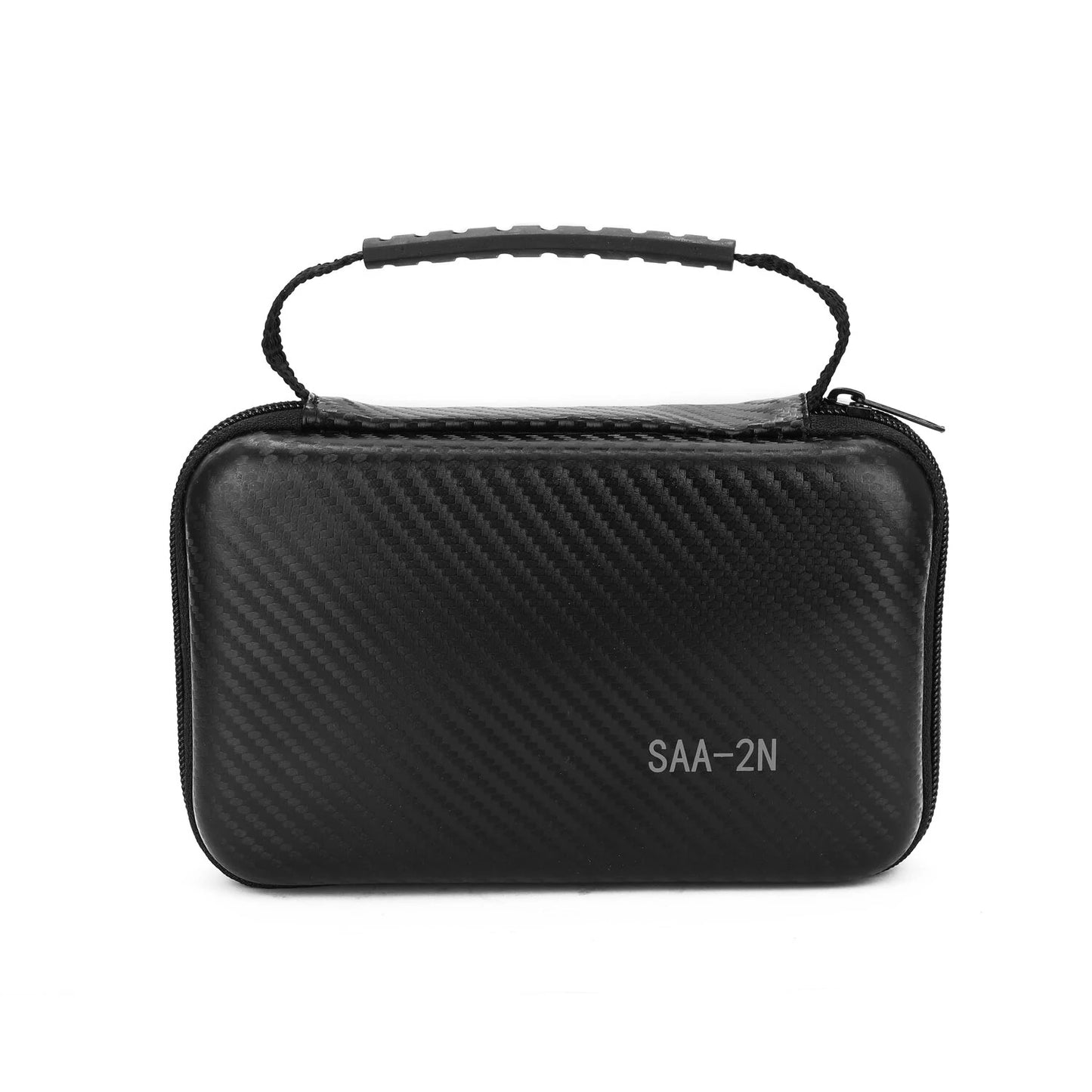

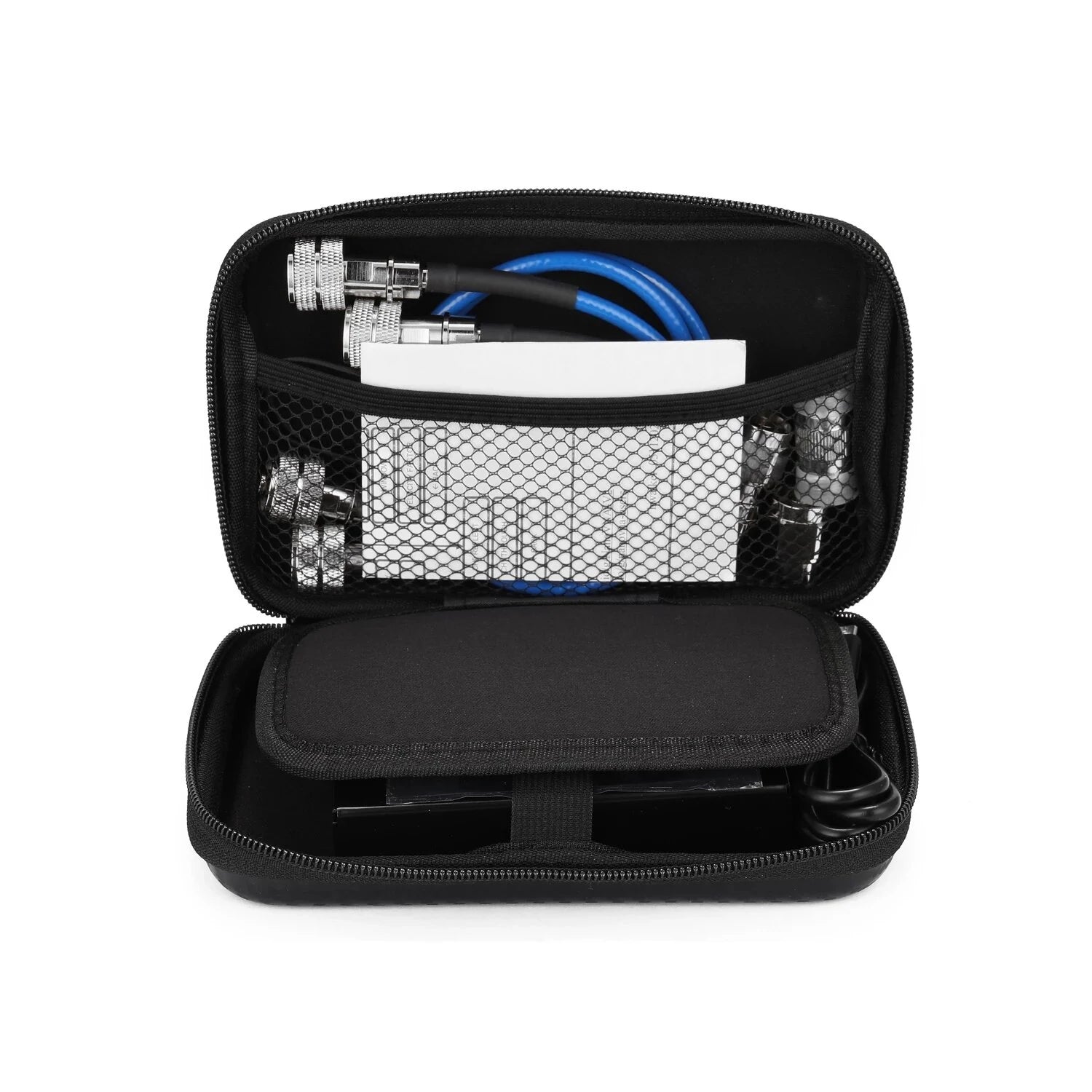

• EVA Storage Bag x 1

Enhance your network analysis experience with SAA-2N NanoVNA V2.2, ensuring unparalleled accuracy and reliability for your frequency measurement needs.
