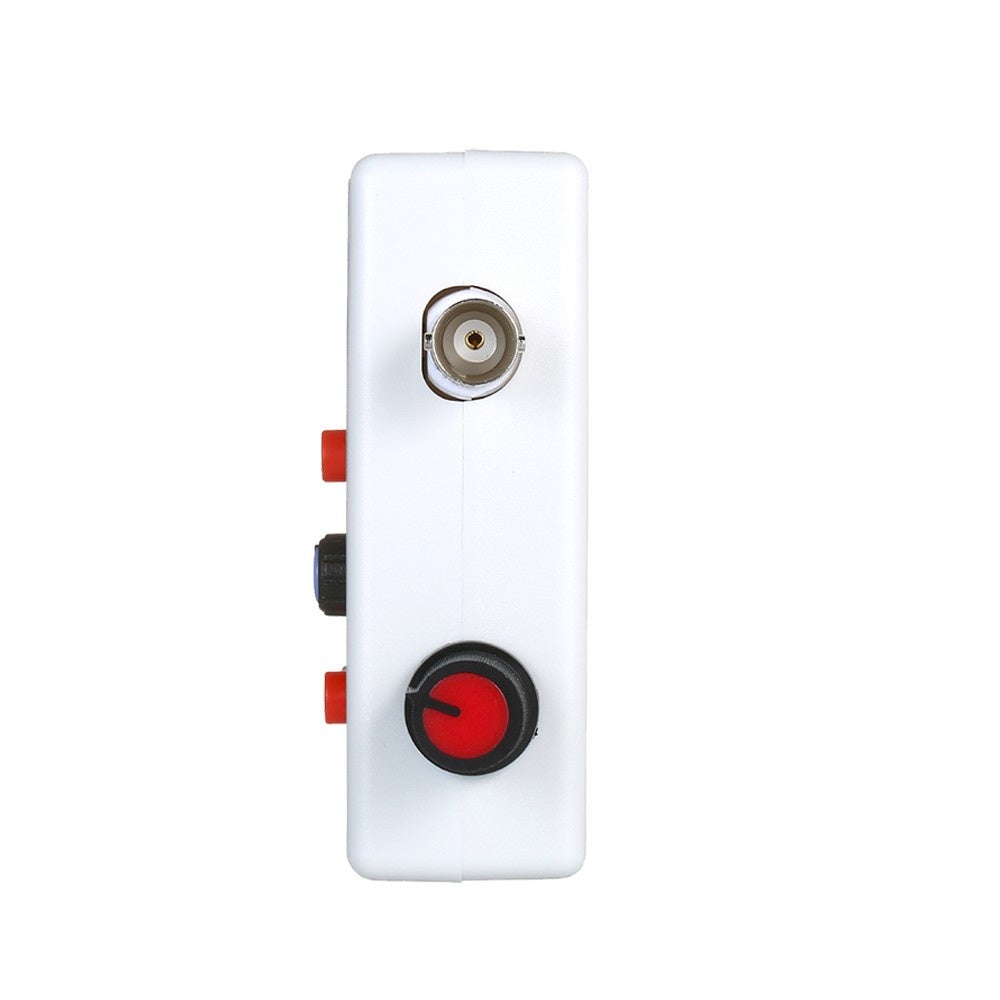

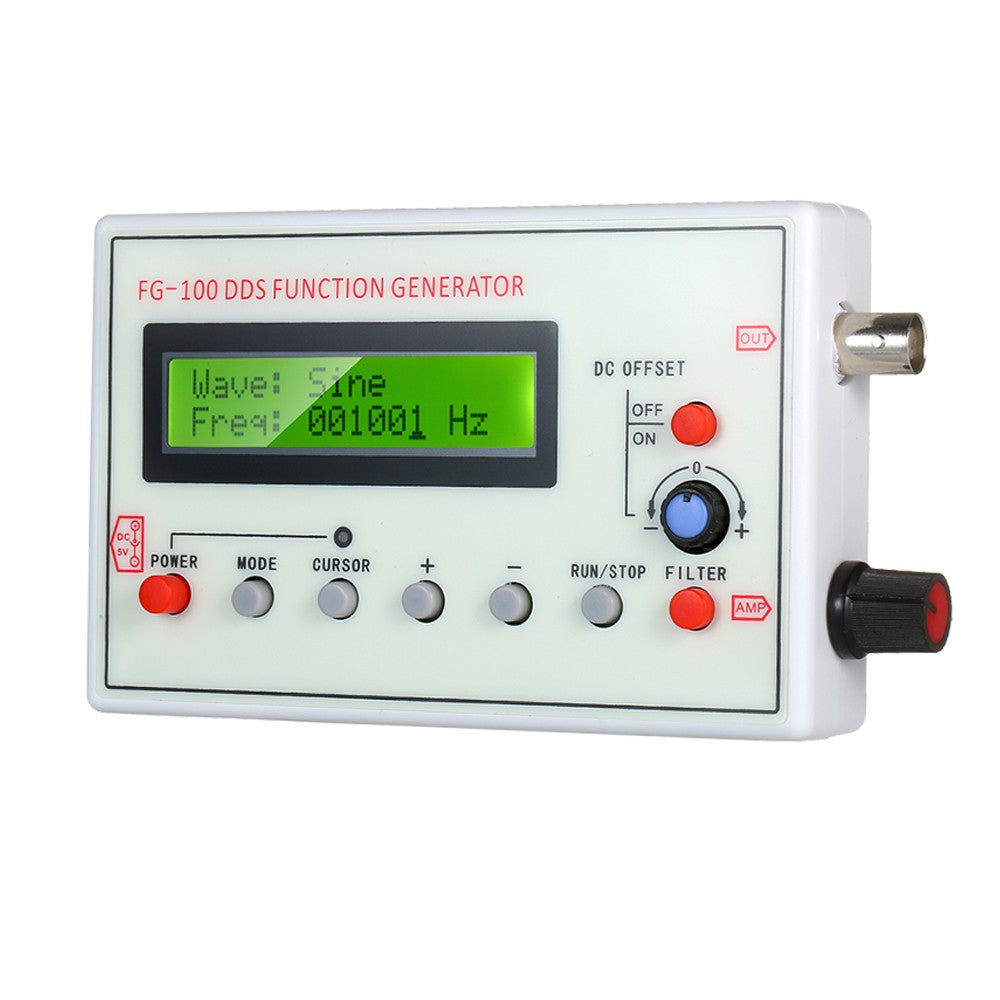

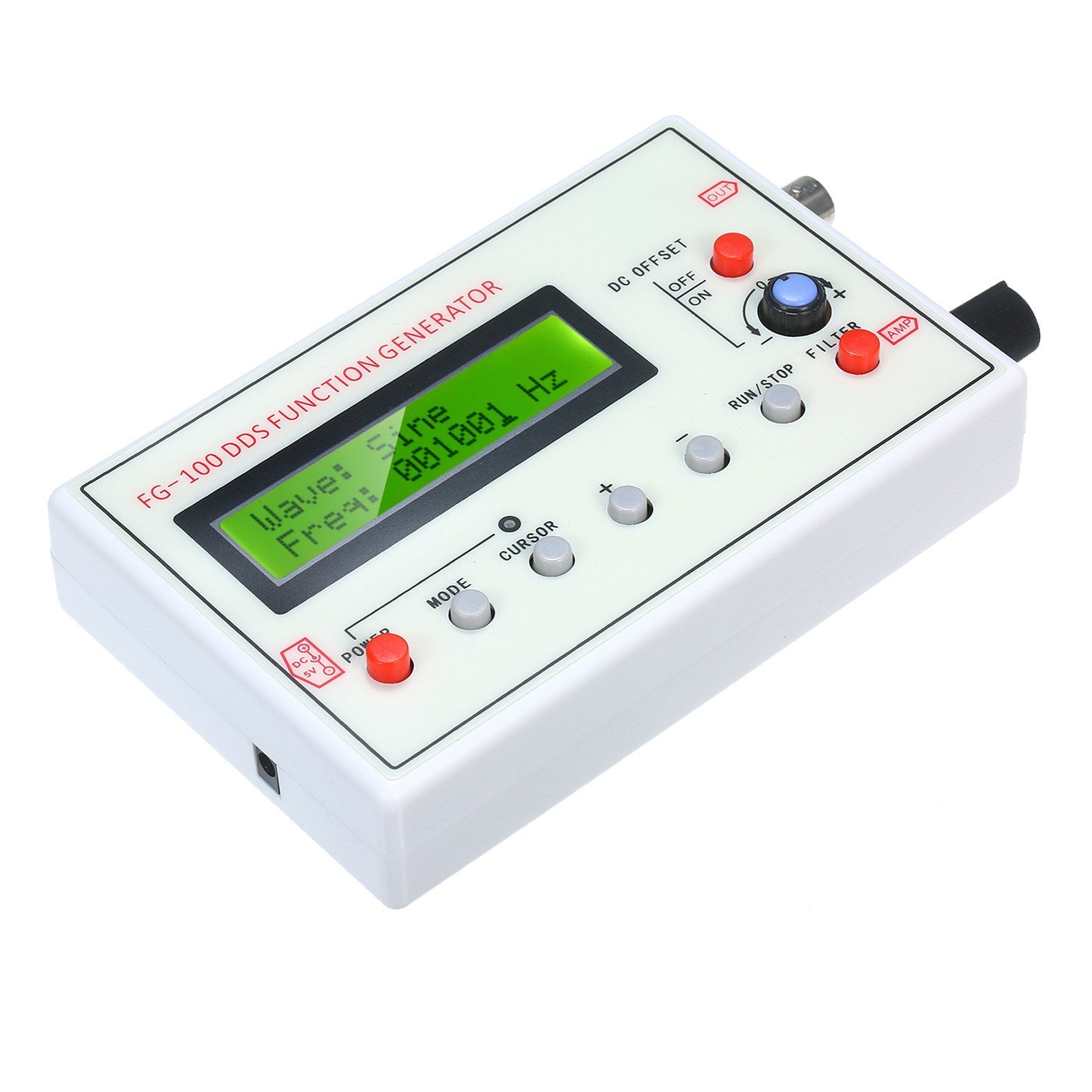

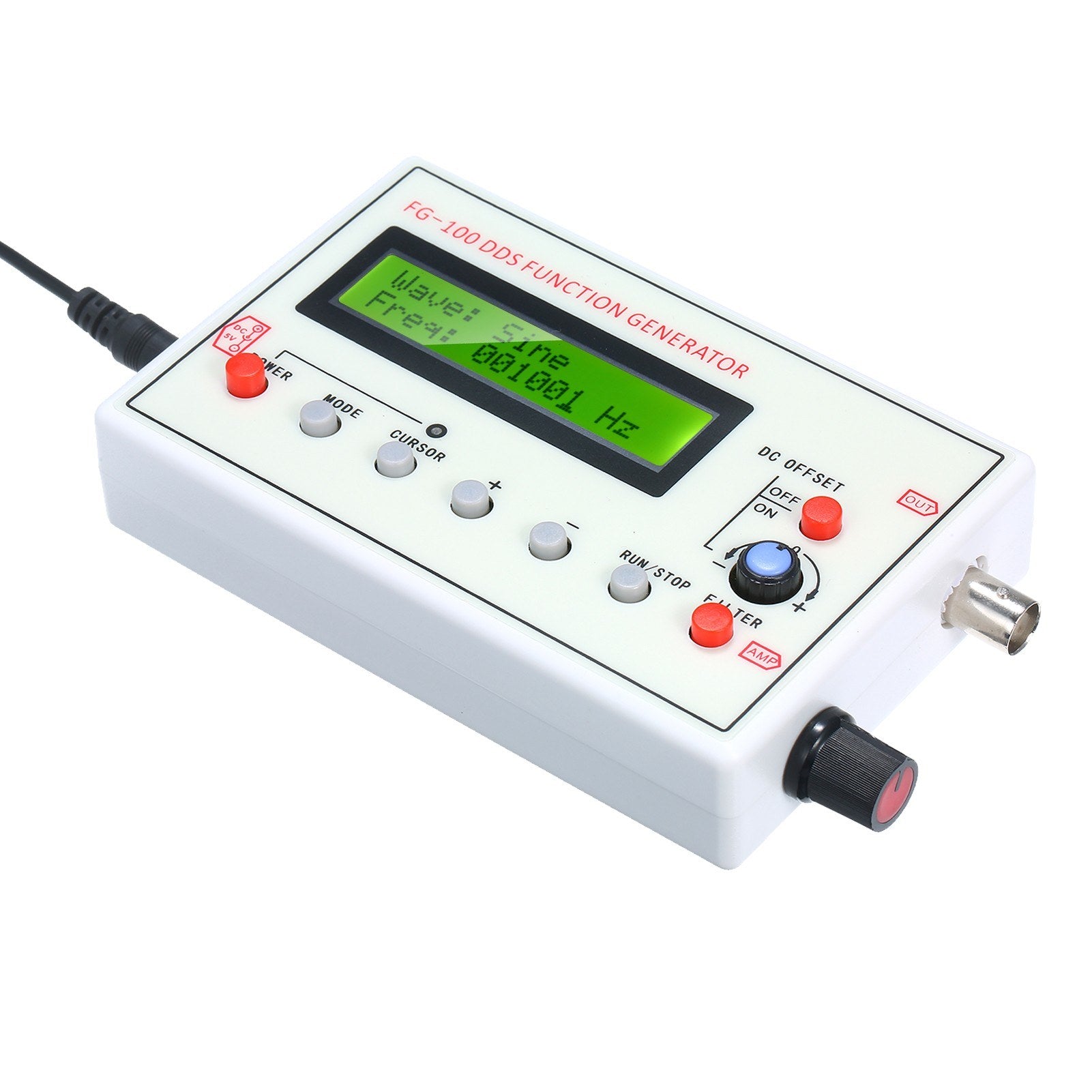

FG-100 DDS Signal Generator: 1Hz-500kHz Sine, Triangle, Square, Sawtooth, ECG Waveforms & Frequency Counter Module

Features:

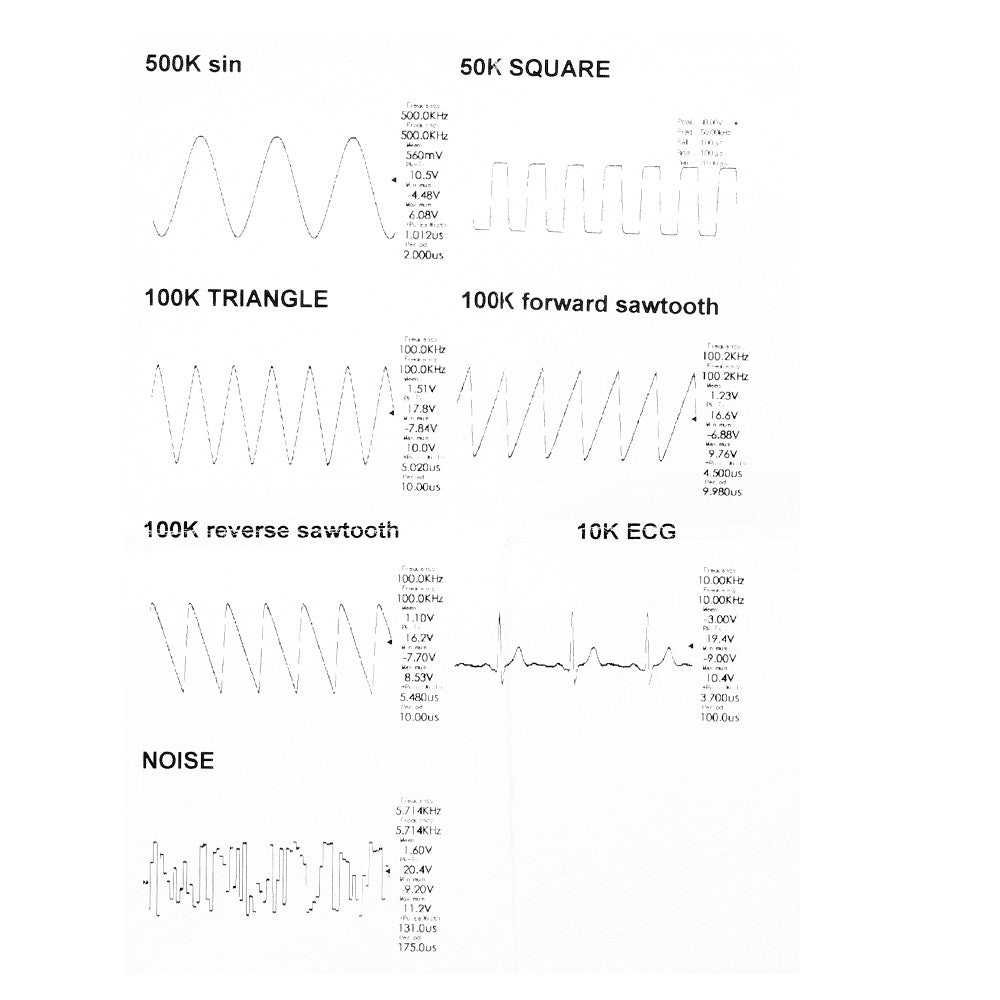

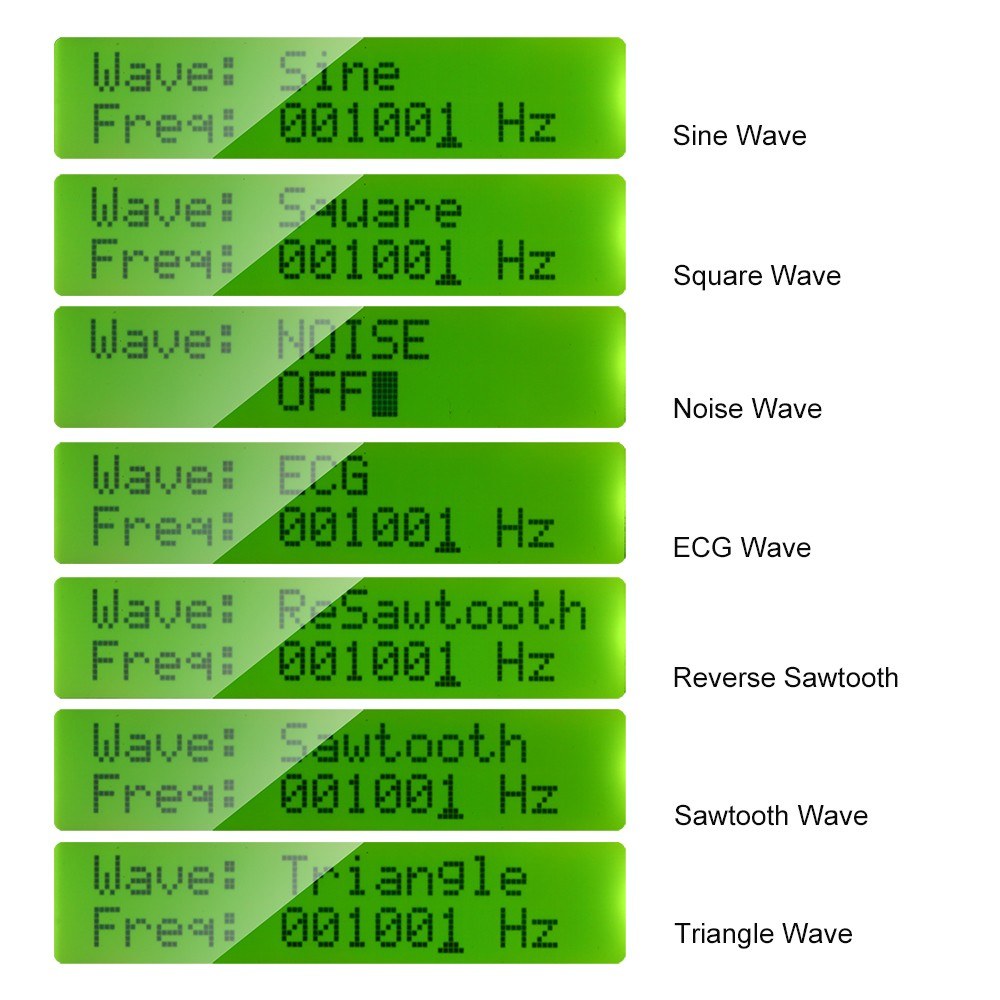

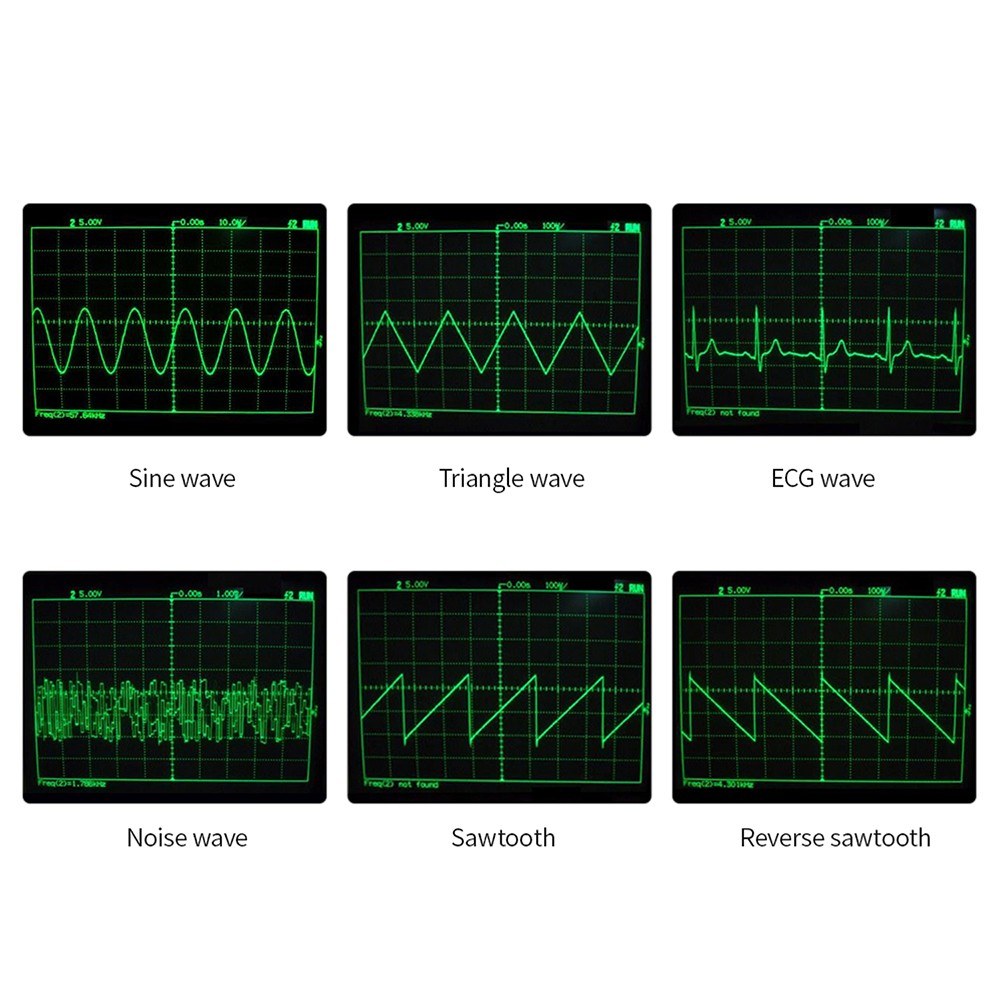

• Output Waveform: Choose from sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, ECG wave, and noise wave.
• DDS Frequency Range: Sine wave from 1 Hz to 500 kHz. For other waveforms, the range is 1 Hz to 50 kHz. Note: The output amplitude may decrease with higher frequencies. If low distortion and stability are not crucial, frequencies can be extended.

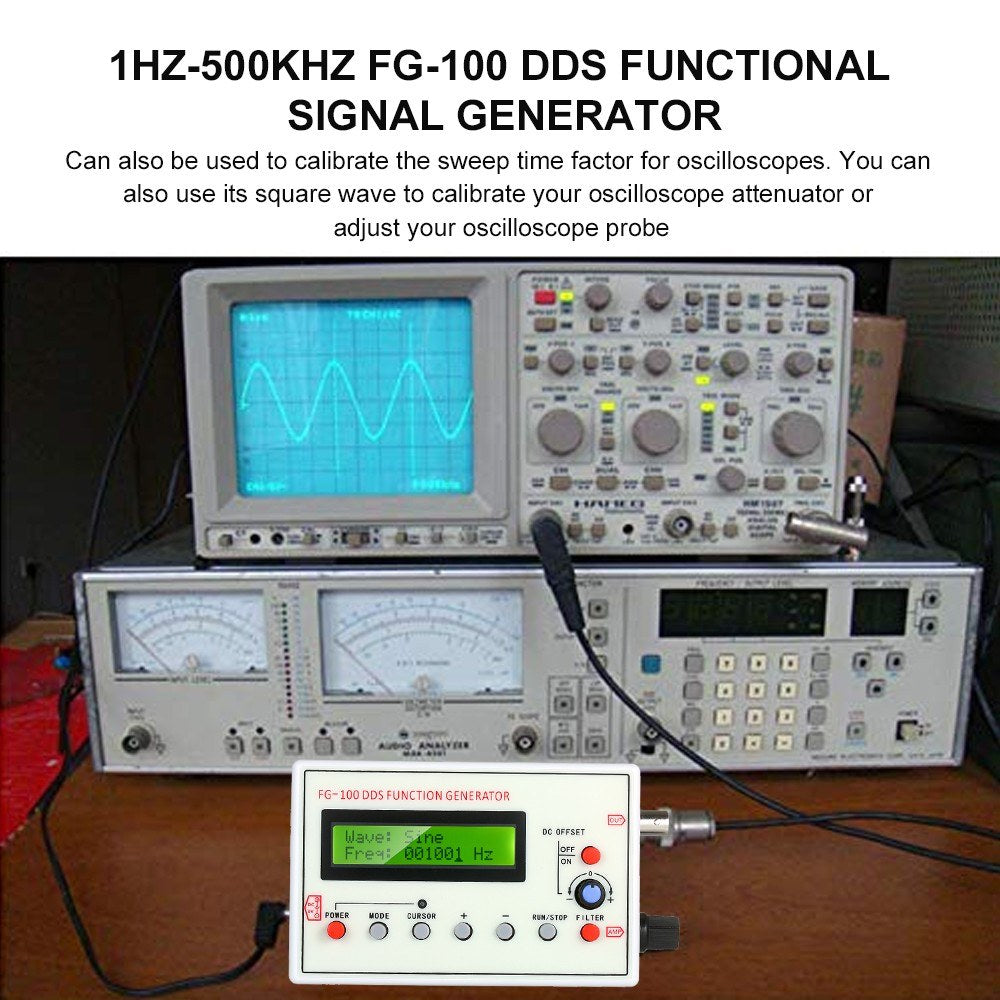

• Application: Calibrate oscilloscope sweep time factor using its precision DDS accuracy and frequency stability. Ideal for oscilloscope probe and attenuator calibration using the square wave output.
• Versatile Power Supply: Compatible with DC adapters or Lithium batteries. Recommended 5V DC for adapters and 3.7V for battery power. Accepts a supply range of DC 4-10V.

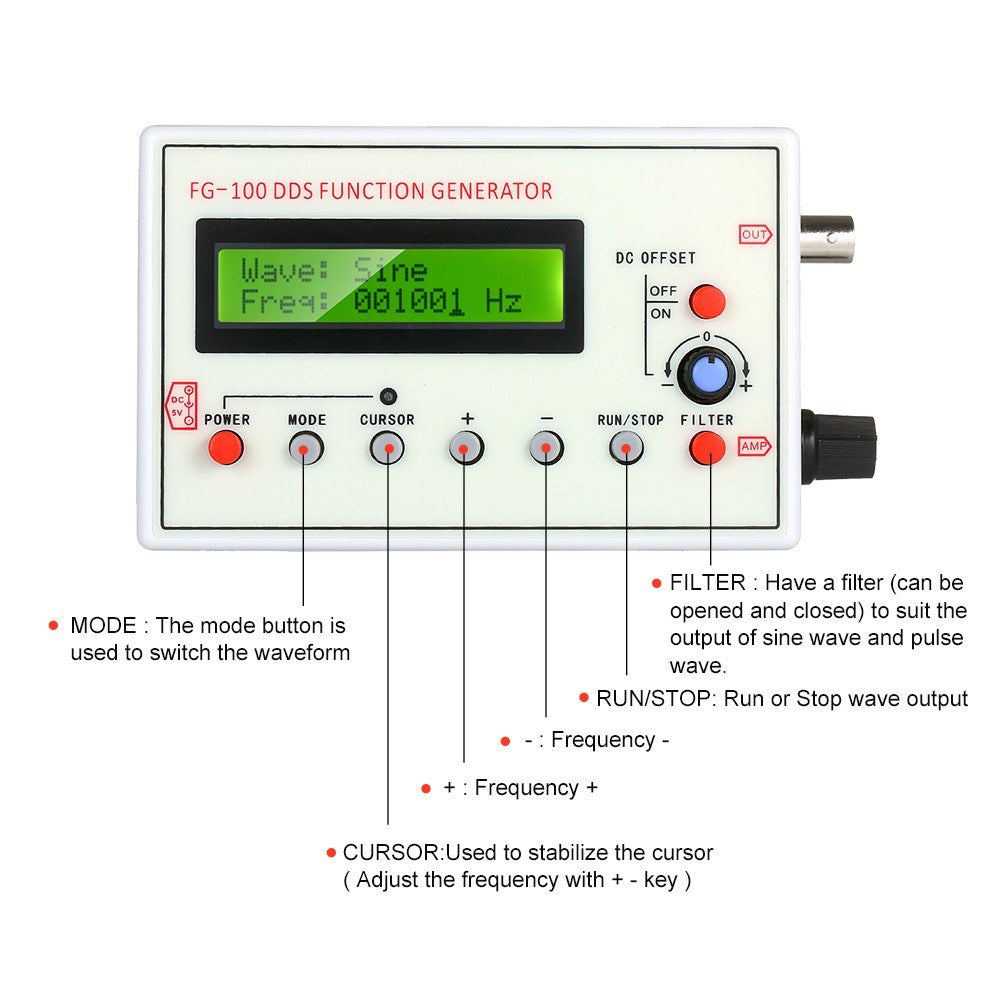

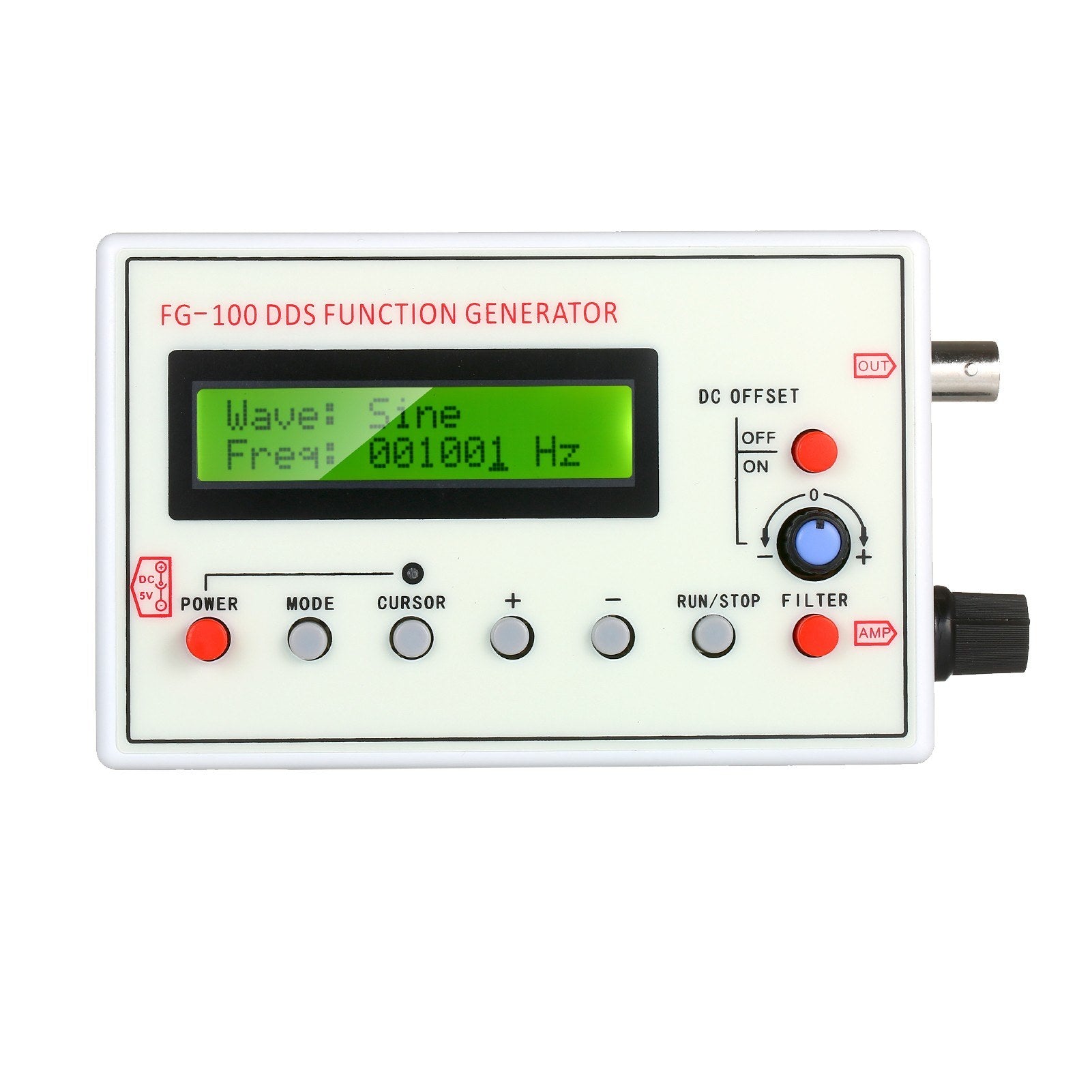

• Large LCD Screen: Features a backlit, easy-to-read display with labeled function buttons for straightforward operation. Together with an oscilloscope, it's perfect for troubleshooting electronic circuits, audio amplifier frequency response characterization, or impulse response measurements.
• Adjustable Filter: Includes switchable filter suitable for sine and pulse wave outputs.

Specification:

• Plug Type: US
• Power Supply: DC 4-10V
• Current: 250mA
• Frequency Range: Sine wave 1-500kHz
• Resolution: 1 Hz
• Sine Wave Distortion: Less than 1% below 1kHz, less than 0.5% above 1kHz
• Output Amplitude: Maximum +/- 10V (peak-to-peak)
• Output Impedance: 50 ohms
• DC Offset: Maximum +/- 10V with shutdown function
• Memory: All setting parameters can be saved

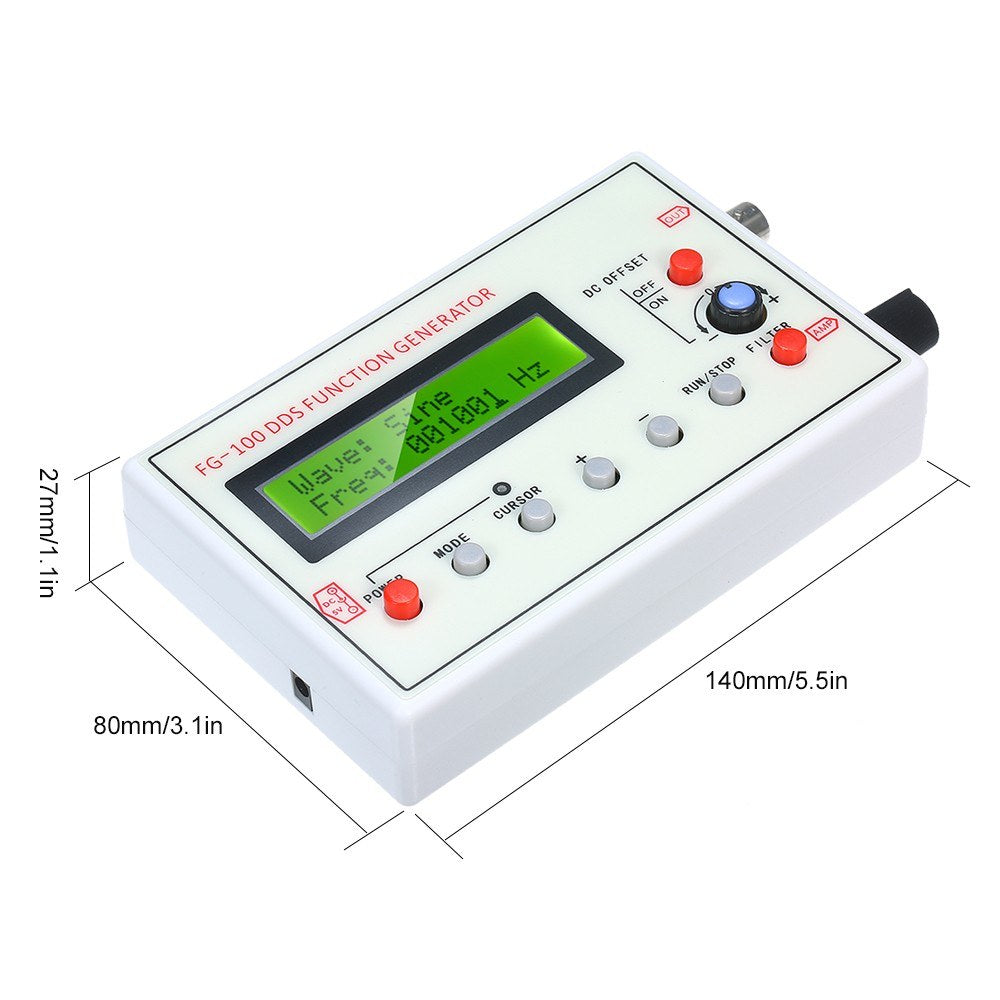

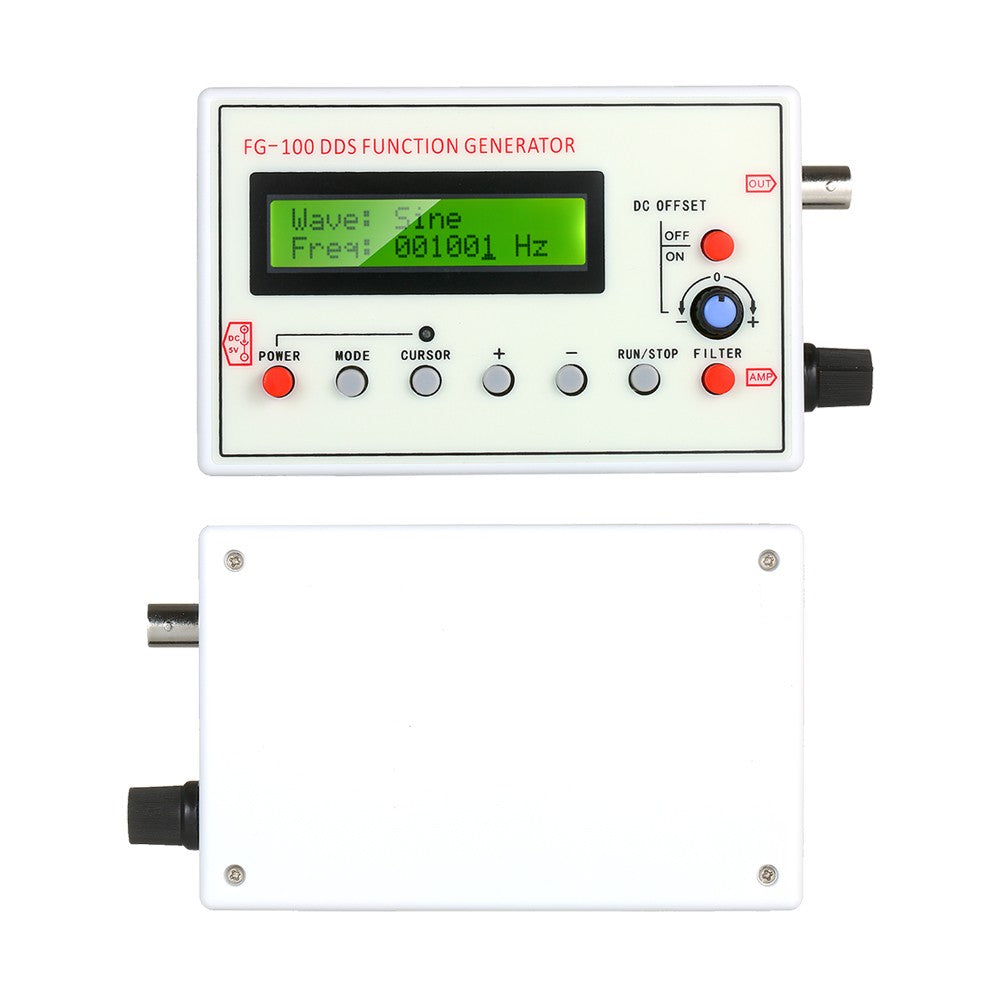

• Dimensions: 140 x 80 x 27mm (5.5 x 3.1 x 1.1in)
• Weight: 144g (5.1oz)

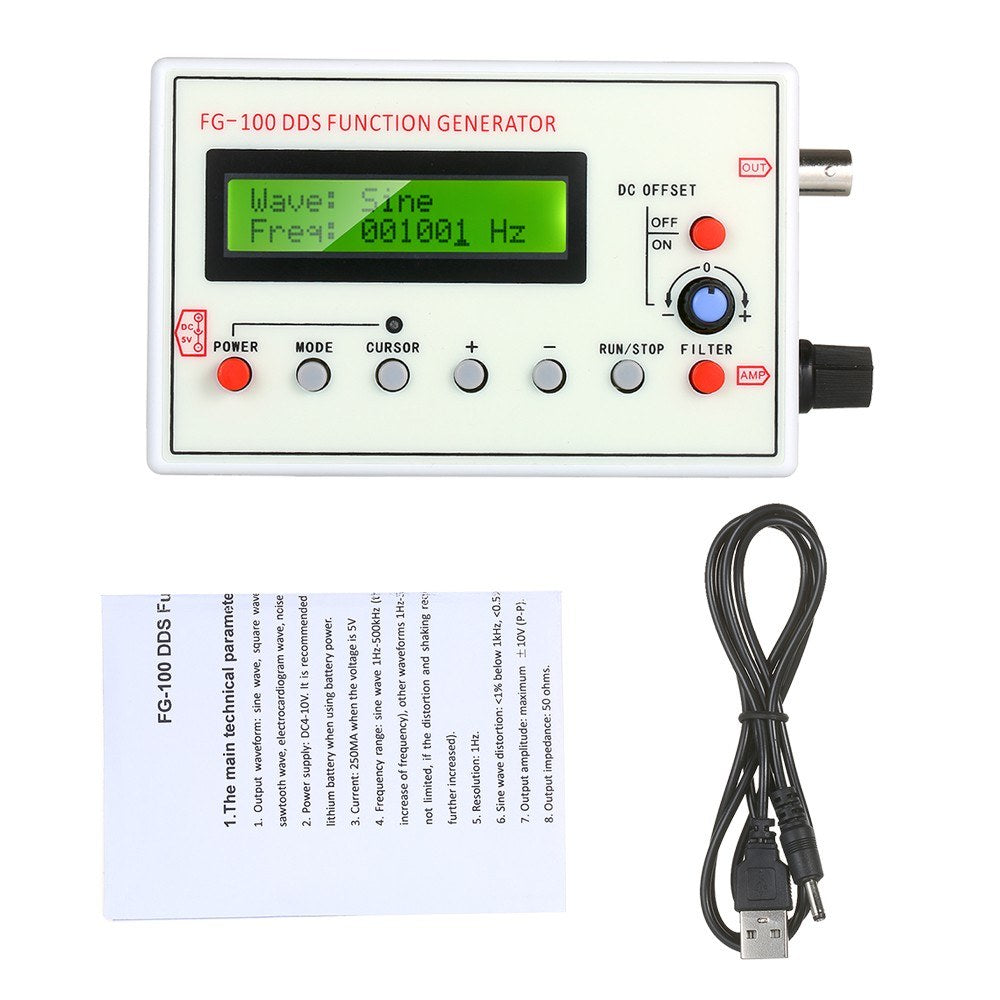

Package List:

• 1 x DDS Signal Generator
• 1 x Power Adapter
• 1 x User Manual
