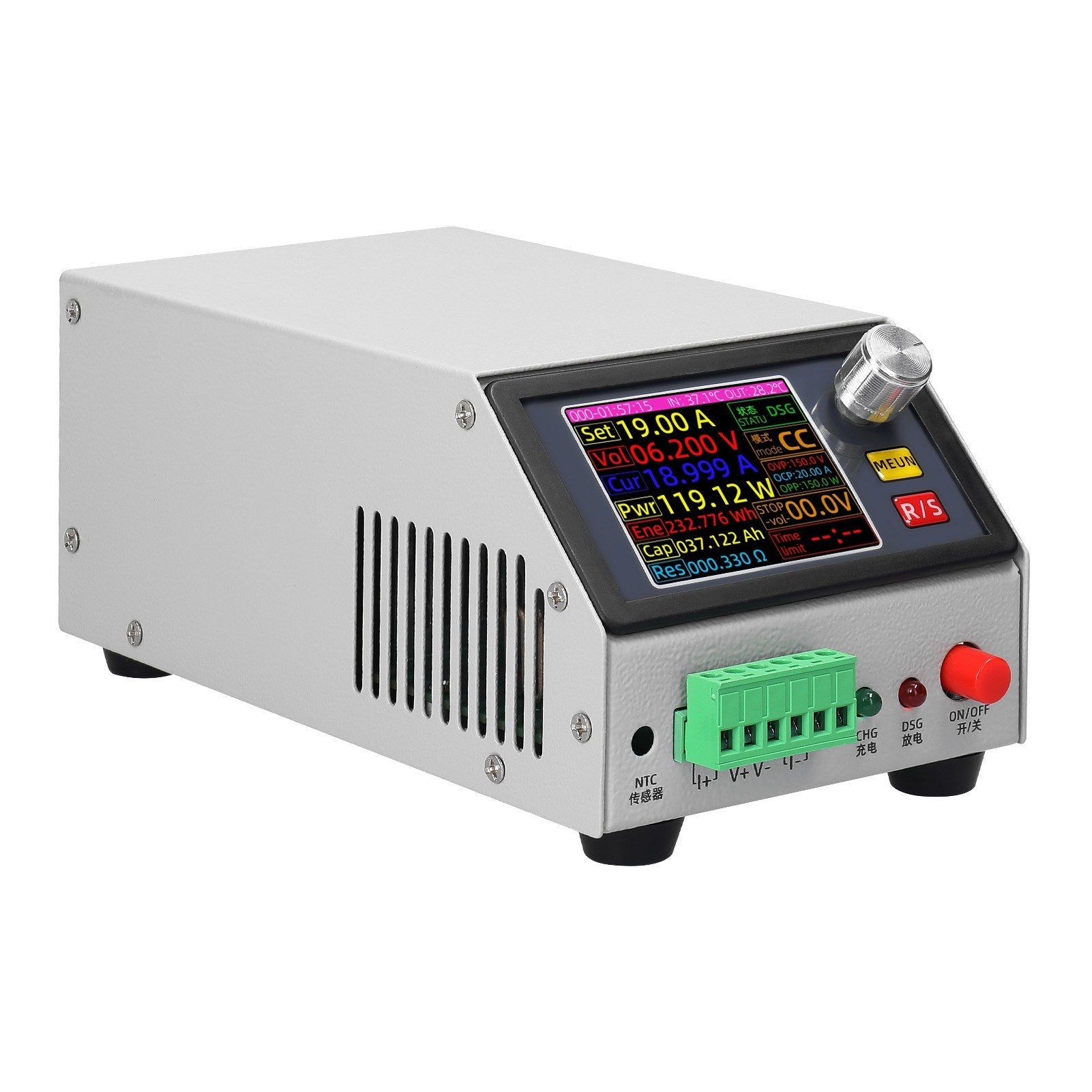

2.4inch Color Screen Electronic Load with Constant Current/Power/Resistance Modes and Data Calibration

Introducing the MDL150, your go-to solution for precise, reliable testing in various applications. Designed to meet high standards, this electronic load boasts remarkable specifications that cater to professionals seeking exceptional performance and customization.

Product Highlights

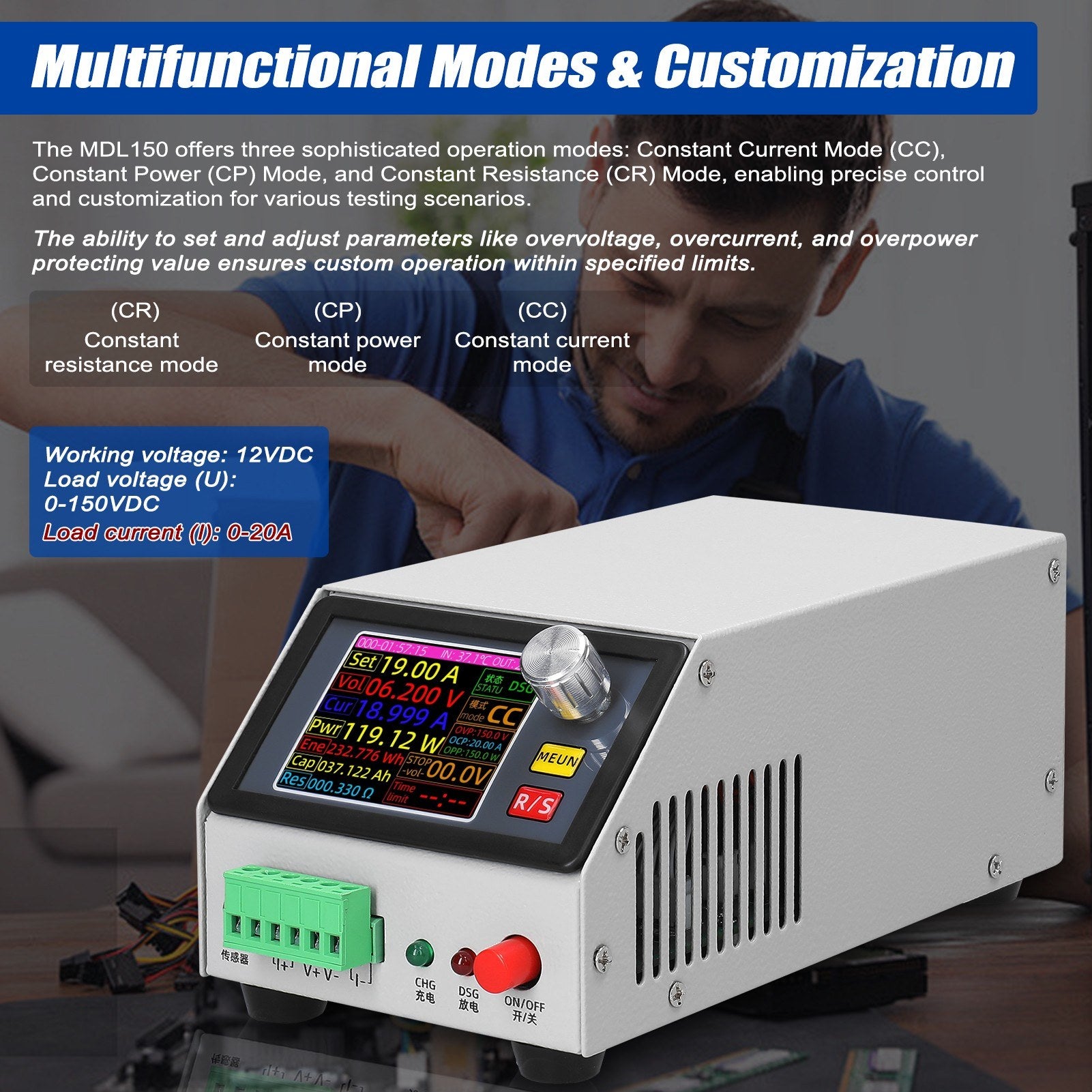

• Multifunctional Modes & Customization: Seamlessly switch between Constant Current, Constant Power, and Constant Resistance modes. Tailor your experience by adjusting parameters like overvoltage, overcurrent, and overpower protection values.

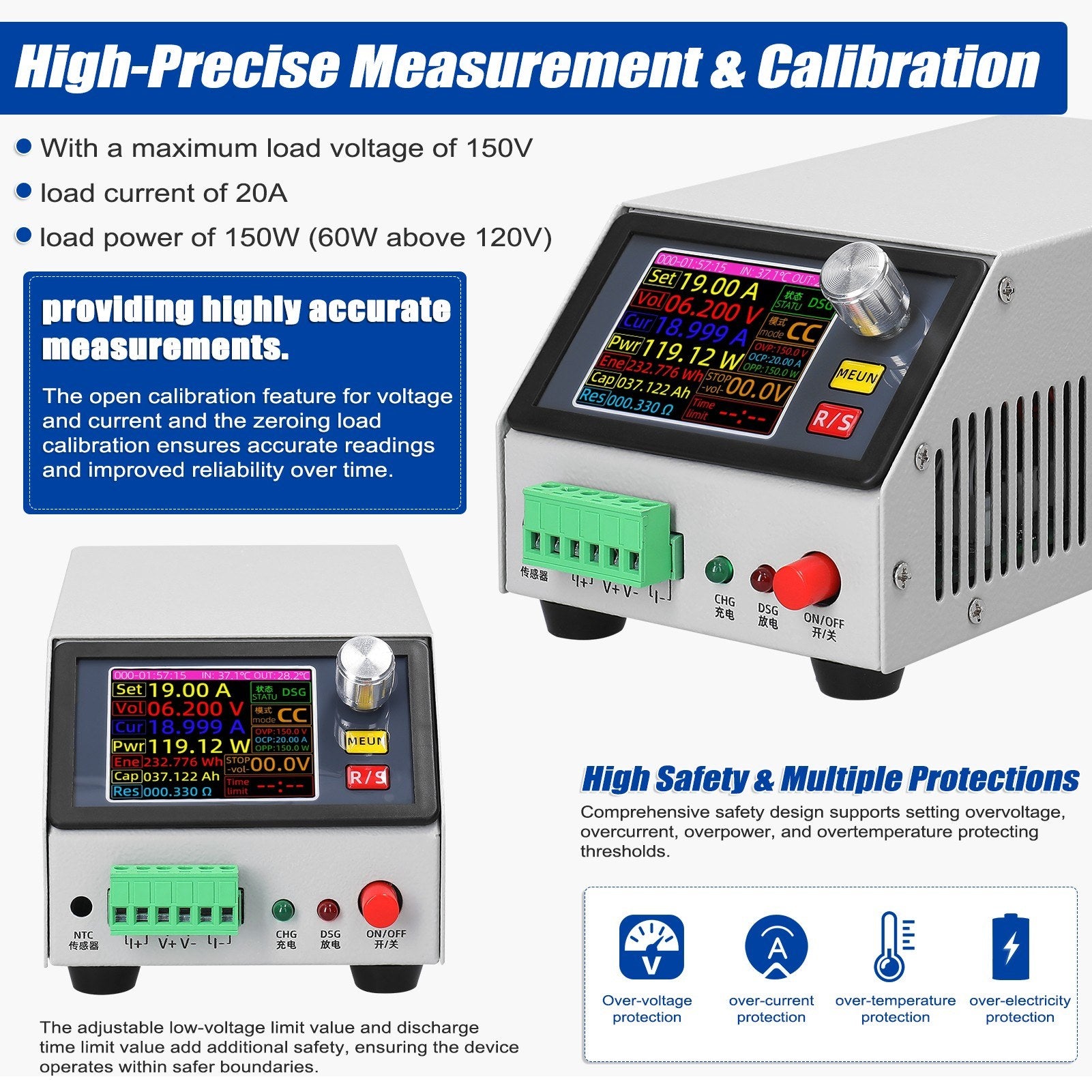

• High-Precision Measurement & Calibration: Experience highly accurate measurements with load specs of voltage up to 150V, current up to 20A, and power up to 150W (60W above 120V). Features like open calibration and zeroing load calibration ensure long-term reliability.
• User-Friendly Design: The 2.4-inch color screen provides vibrant data visualization and intuitive controls for adjusting brightness, setting screen sleep times, and switching languages (English and Chinese). Easy reset of accumulated data and restoration of factory settings enhance usability.
• Comprehensive Safety & Protection: Set vital thresholds for overvoltage, overcurrent, overpower, and overtemperature protection. Additional safety with adjustable low-voltage and discharge time limits ensures secure operation.

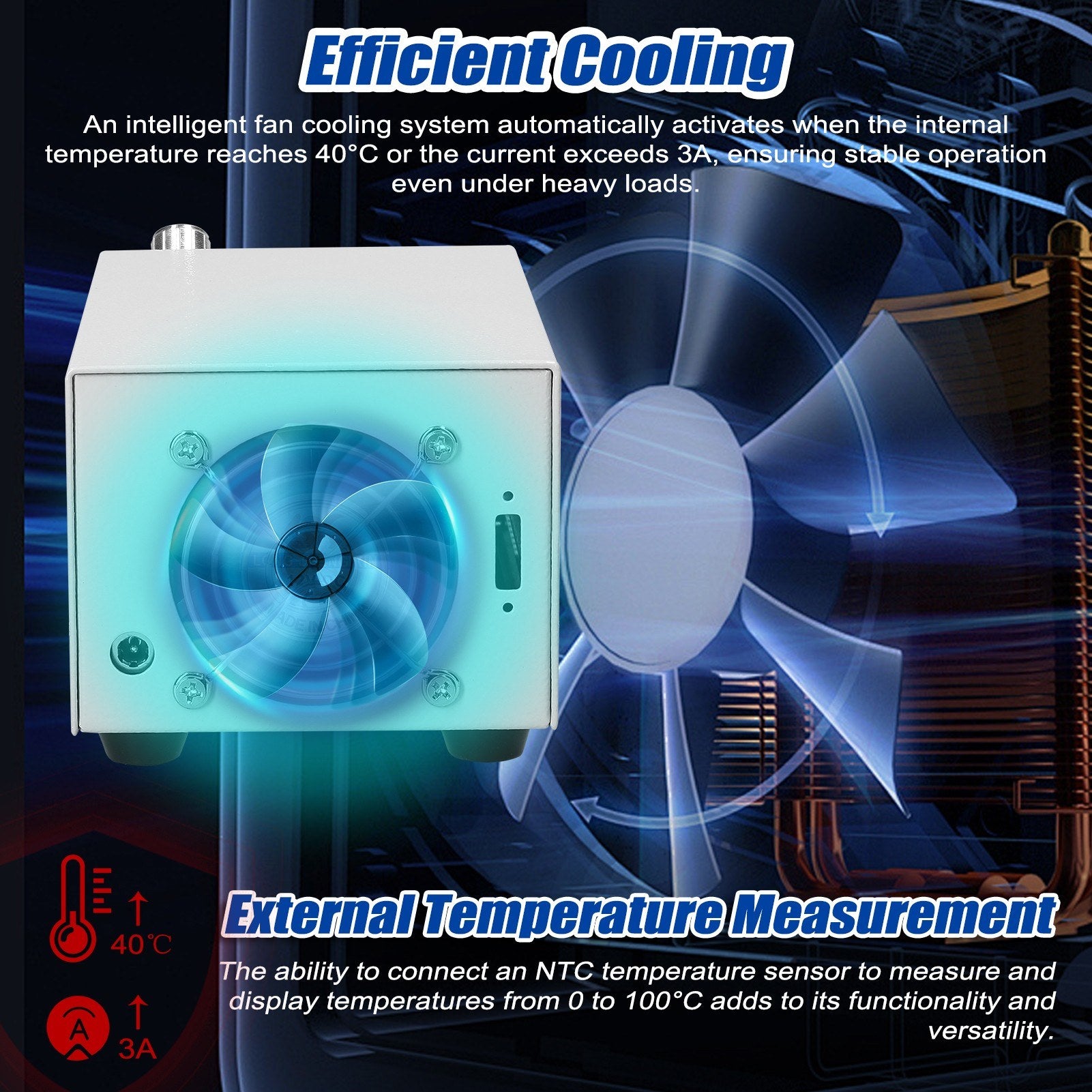

• Efficient Cooling & Temperature Monitoring: An intelligent cooling system activates above 40°C or 3A current, maintaining stable operations. Connect an NTC temperature sensor to monitor temperatures between 0 and 100°C, extending functionality.

Specifications

• Name: Electronic Load
• Material: Metal
• Working Voltage: 12VDC
• Load Voltage: 0-150VDC
• Load Current: 0-20A
• Load Power: 0-150W (max 60W above 120V)
• Wiring Method: A+V+V- A- four wire system, compatible with two wire systems
• Accumulated Timing: ddd: hh: mm: ss (day: hour: minute: second)
• Operating Modes: Constant Current, Constant Power, Constant Resistance
• Built-in Protections: Overvoltage, overcurrent, overpower, overtemperature settings
• Discharge Settings: Voltage limited and timing discharge supported
• Cooling: Automatic fan activation at ≥ 40°C or >3A
• Temperature Sensing: Compatible with NTC 3950 10K 1% sensor
• Interface Languages: English and Chinese
• Adjustable Features: Screen brightness, sleep settings, data reset, calibration options

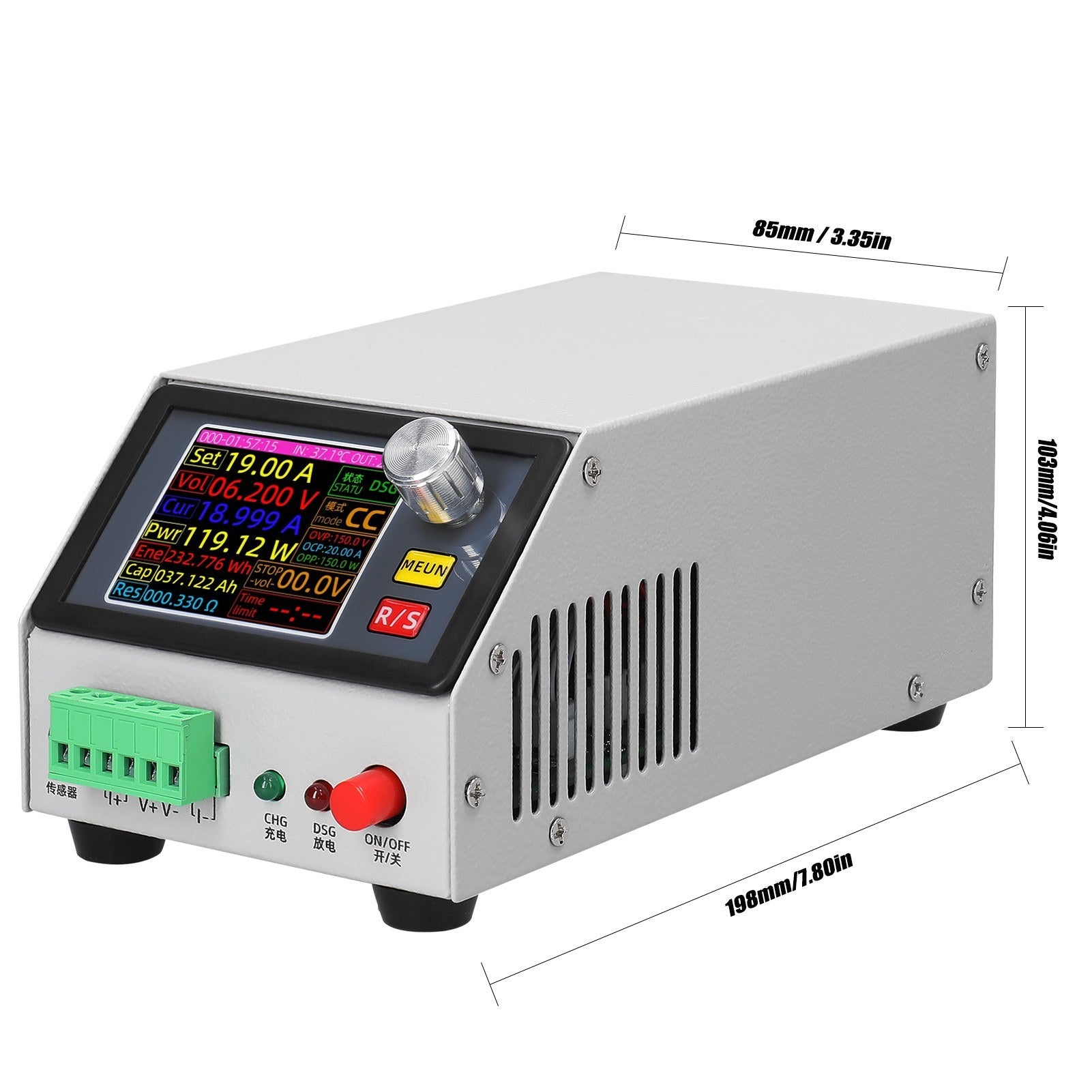

• Dimensions: 198 * 103 * 85mm / 7.80 * 4.06 * 3.35in
• Weight: 933g / 2.06lb
• Package Dimensions: 216 * 110 * 145mm / 8.50 * 4.33 * 5.71in
• Package Weight: 1010g / 2.23lb

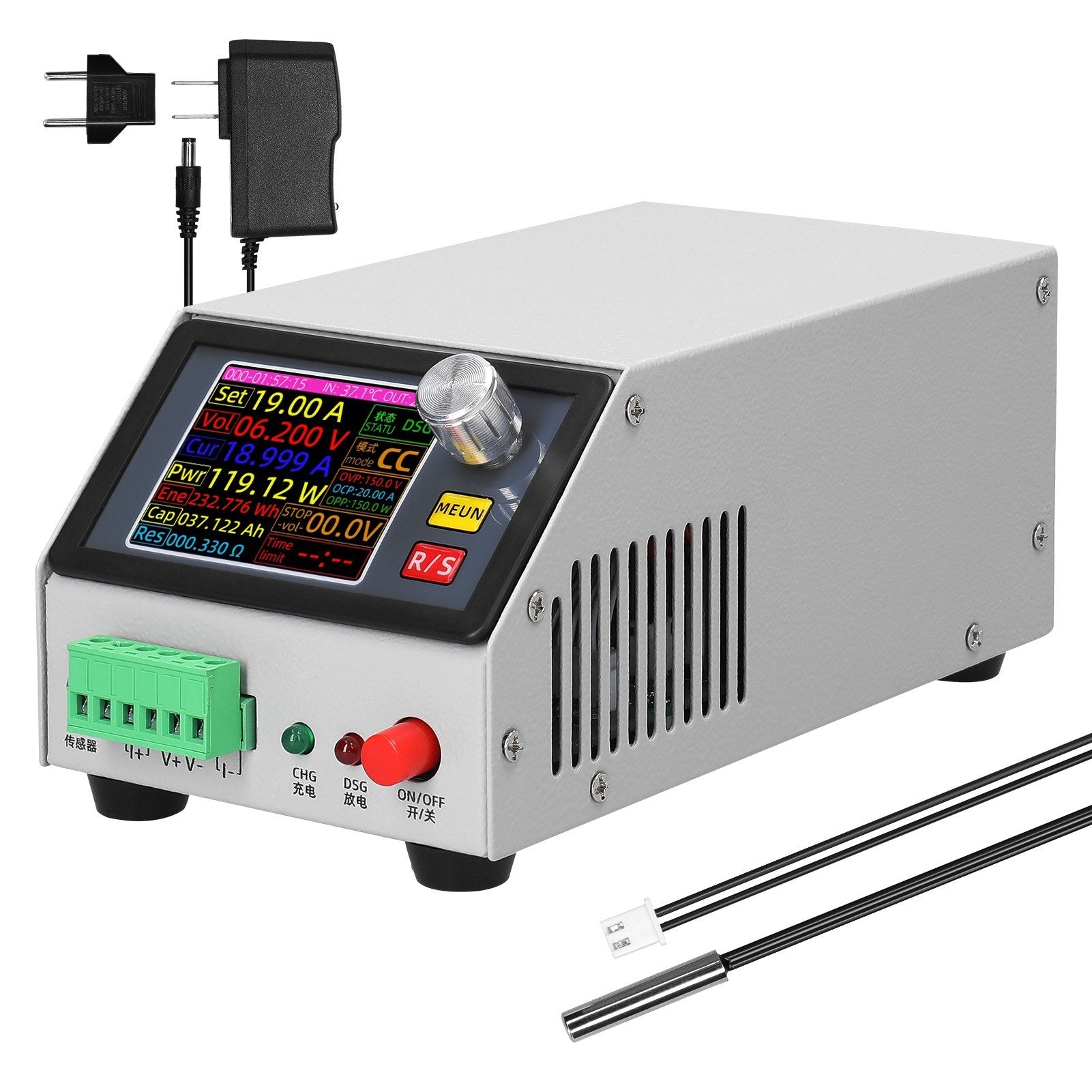

Packing List

• 1 x Electronic Load
• 1 x Temperature Test Wire
• 1 x Adapter

The MDL150 combines versatility, safety, and precision, making it an ideal choice for professionals demanding adaptability and accuracy in electronic load applications.
