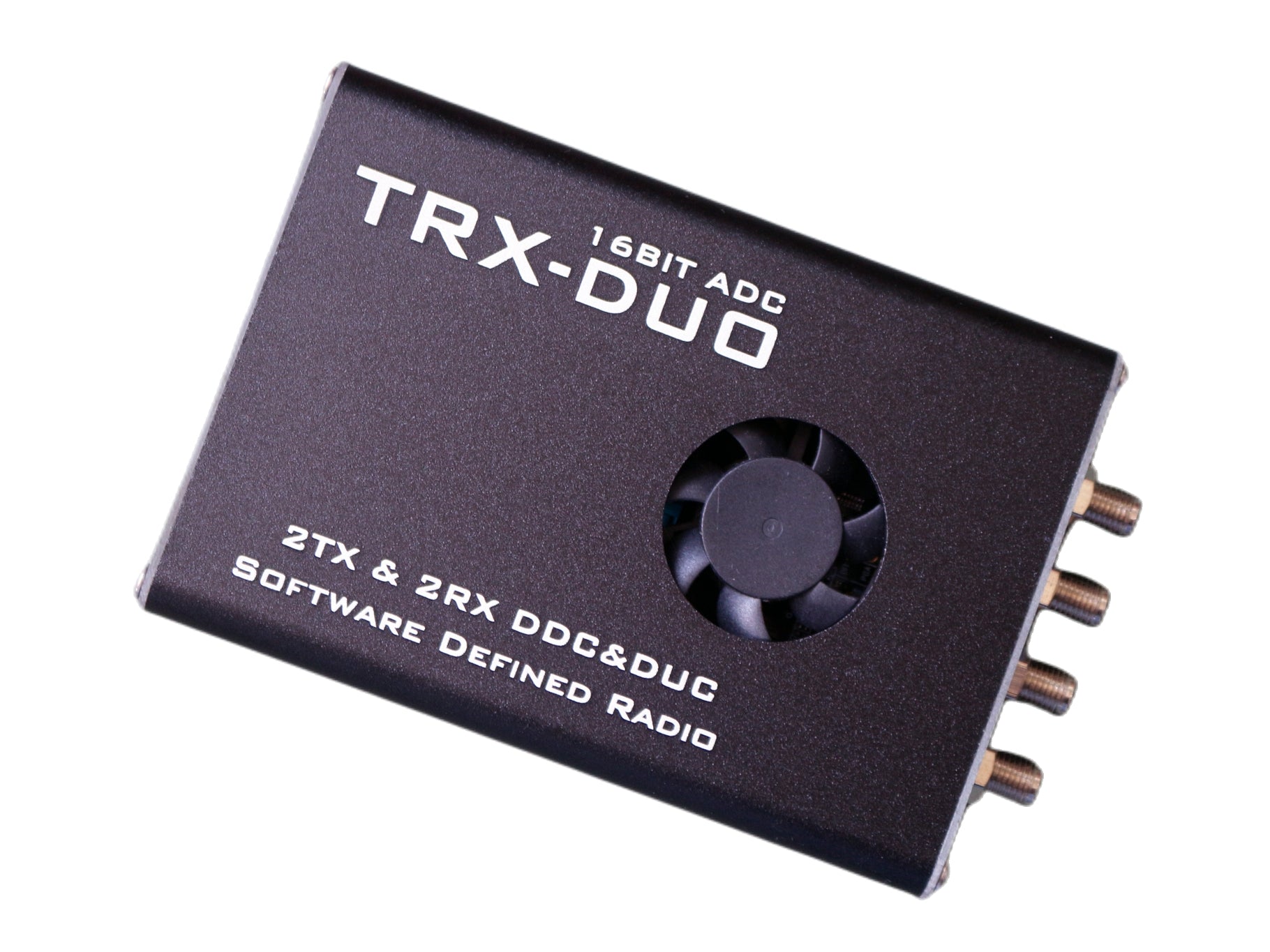

TRX-DUO SDR Receiver
Product Overview

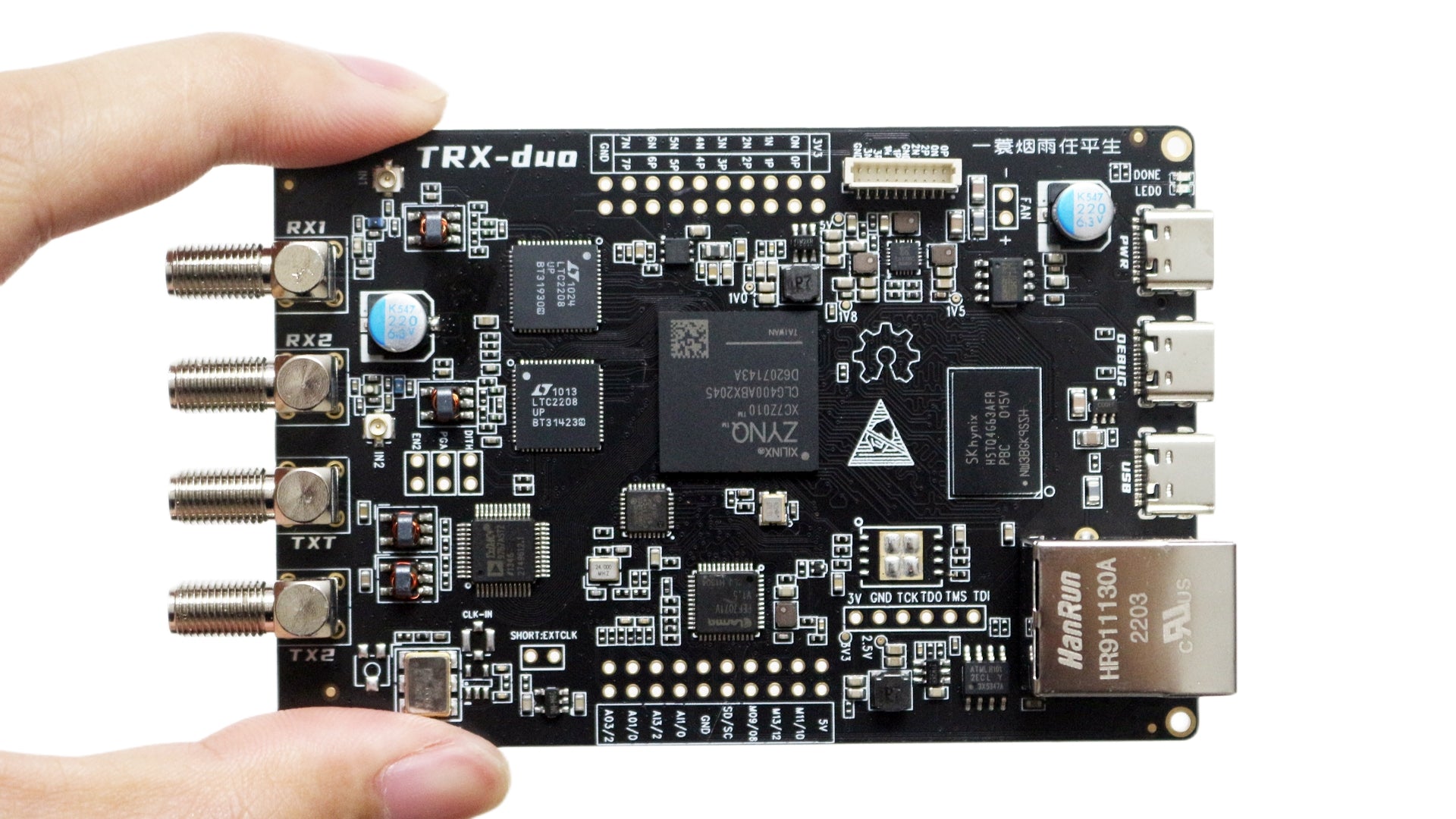

The TRX-DUO SDR Receiver is a professional dual-channel software-defined radio (SDR) device for reception and transmission across 10KHz–60MHz. Featuring dual 16-bit ADCs (LTC2208), a 14-bit DAC, and a Xilinx Zynq 7010 SoC with Dual-Core ARM Cortex-A9, TRX-DUO delivers excellent dynamic range and sensitivity. Fully compatible with popular SDR software such as Red Pitaya, HDSDR, SDR#, PowerSDR, and SDR Console (V3).
Key Features
- Dual-channel SDR receiver & transmitter (2x ADC, 2x DAC)
- Direct sampling range: 10KHz – 60MHz
- High-resolution ADCs: 2 × 16-bit (LTC2208)
- Dual 14-bit DAC for transmission
- Processor: Dual-Core ARM Cortex-A9 & FPGA: Xilinx Zynq 7010 SoC

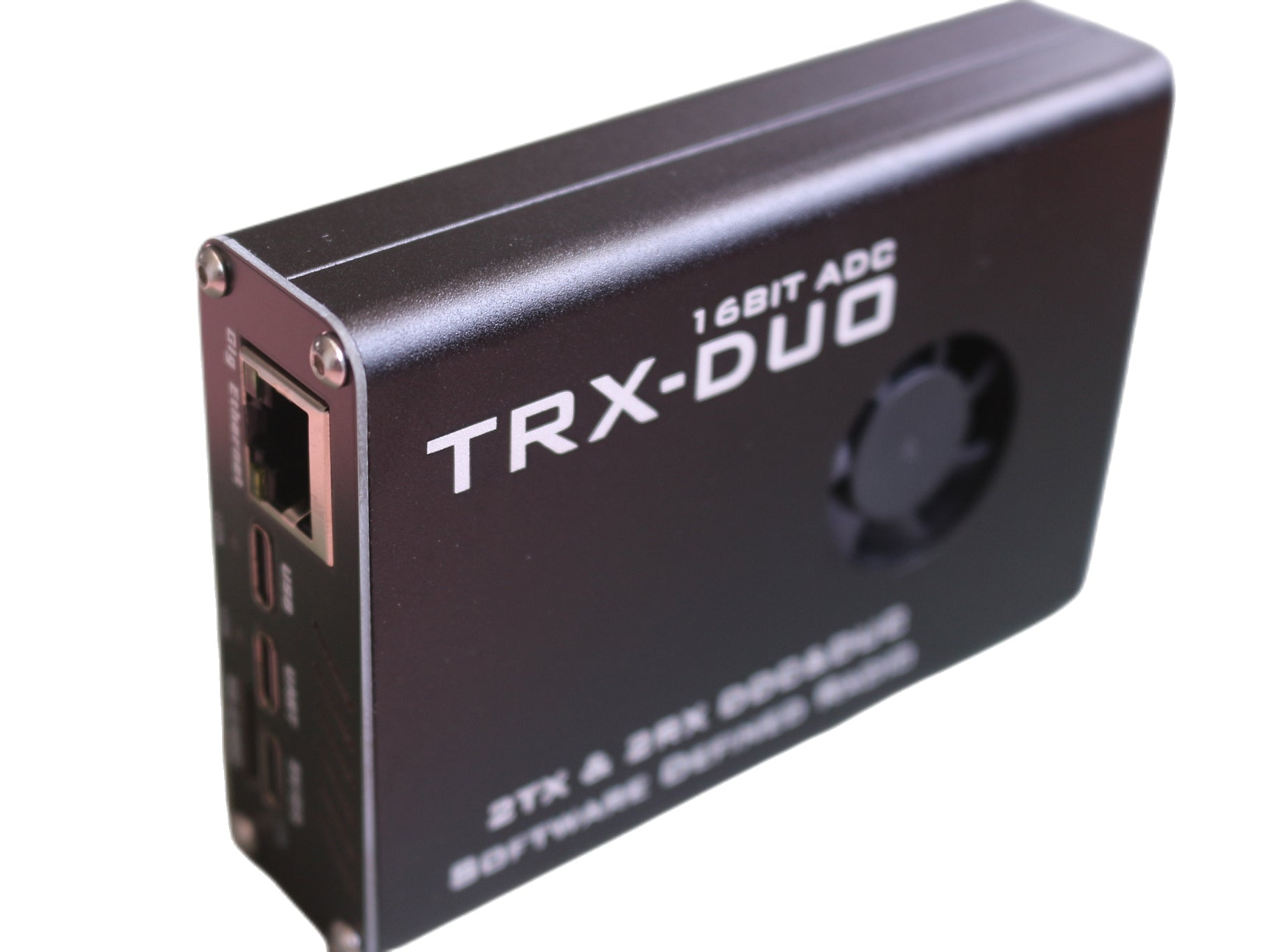

- Connectivity: Gigabit Ethernet, USB Type-C (USB 2.0), Wi-Fi via external dongle

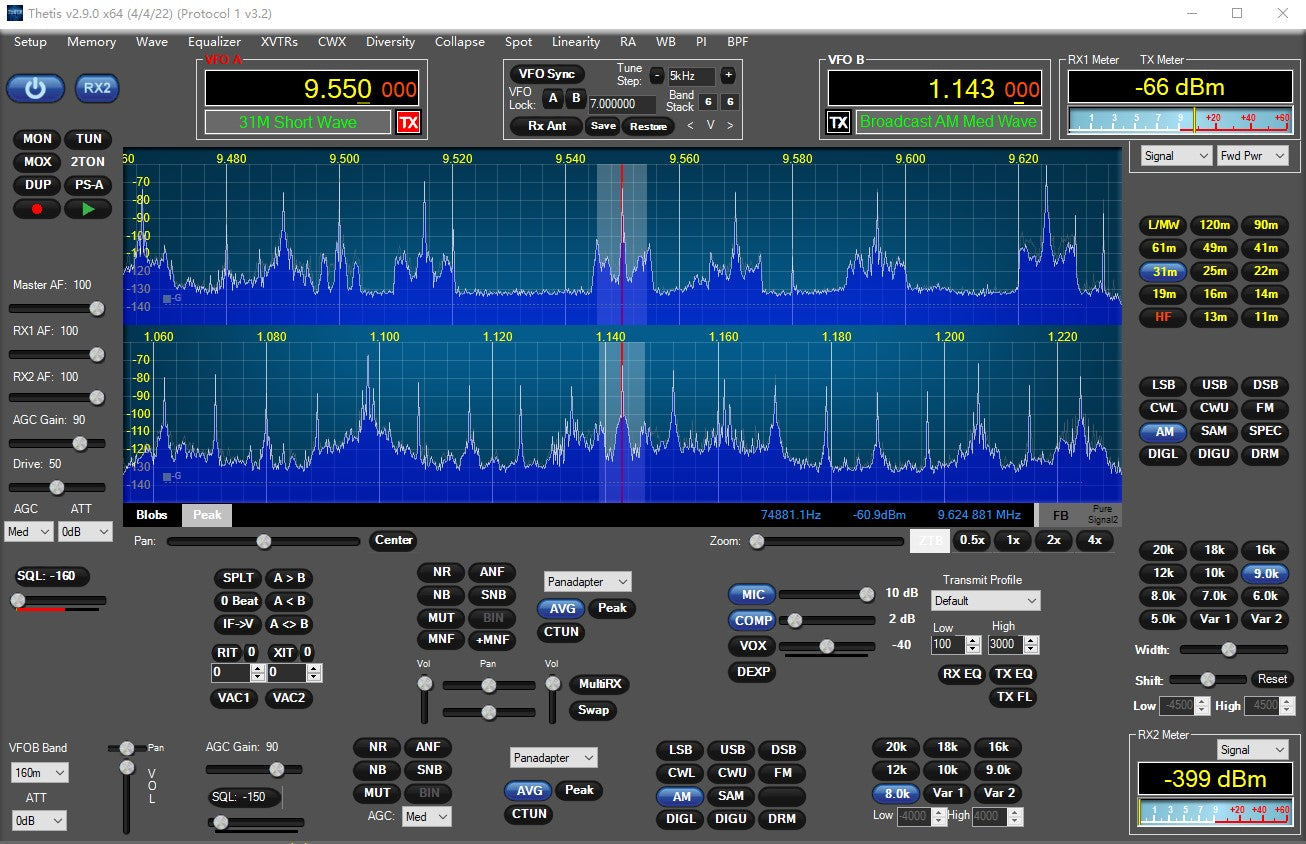

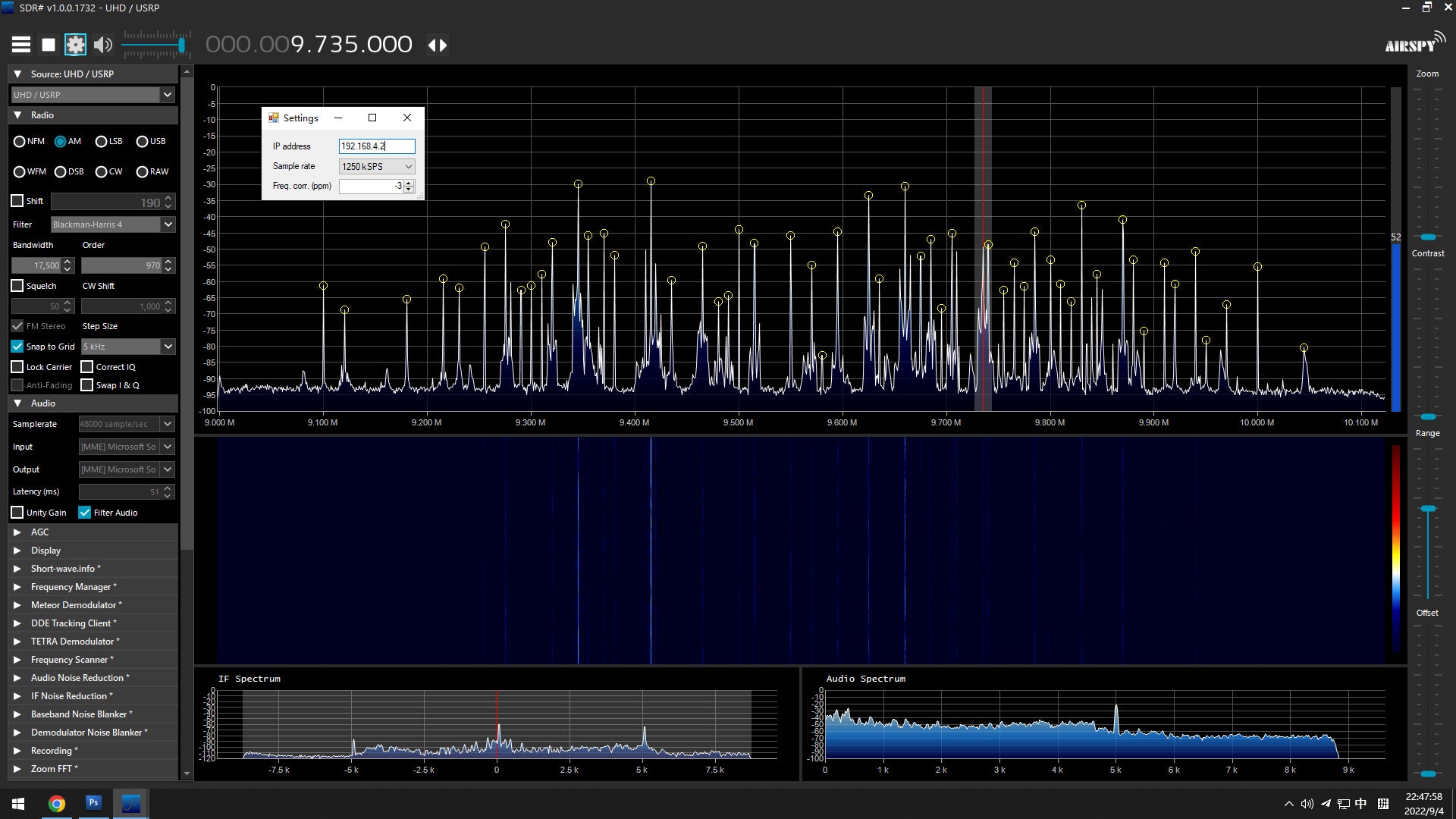

- Compatible with Red Pitaya and mainstream SDR clients (HDSDR, SDR#, PowerSDR, SDR Console)
- Expansion connector for analog/digital I/O and peripheral interfacing
Specifications
| Category | Specification |
|---|---|
| Processor | Dual-Core ARM Cortex-A9 |
| FPGA | Xilinx Zynq 7010 SoC |
| RAM | 512 MB |
| Ethernet | 1 Gbit |
| USB | Type-C, USB 2.0 |
| Wi-Fi | Requires external Wi-Fi dongle (not included) |

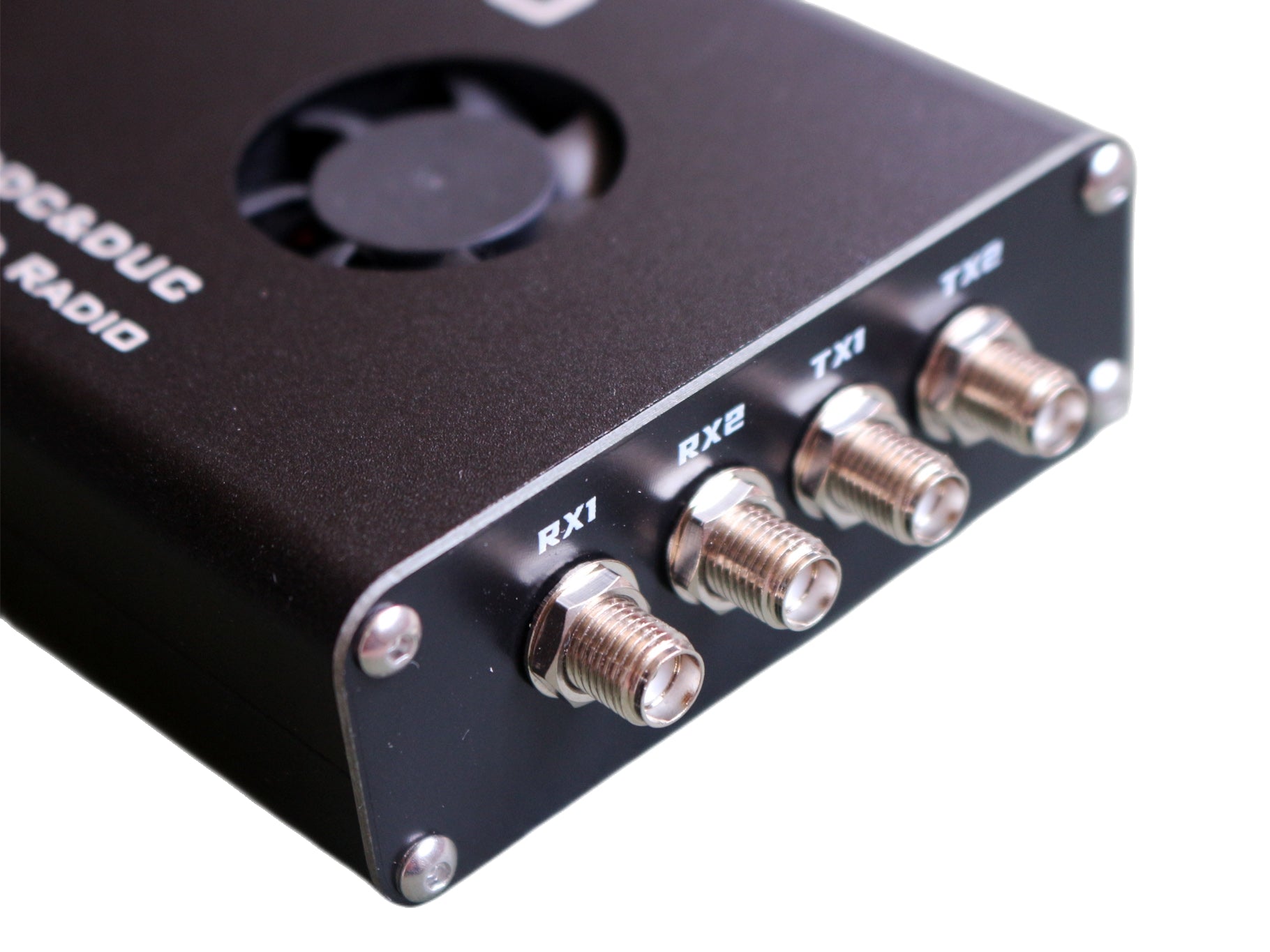

| RF Inputs | 2 channels (SMA) Sample rate: 125 MS/s ADC resolution: 16-bit Full-scale: 0.5 Vpp / -2 dBm Absolute max input: DC 50V (AC-coupled), 1 Vpp for RF Input protection: RF transformer & AC-coupled |
| RF Outputs | 2 channels Sample rate: 125 MS/s DAC resolution: 14-bit Voltage: 1 Vpp / +4 dBm Load impedance: 50 Ω |
| Extension Connector | Digital I/O: 16 pins Analog inputs: 4 (0–3.3V, 12-bit, 100 kS/s) Analog outputs: 4 (0–1.8V) Interfaces: I²C, UART, SPI Available voltage: +3.3V |
Software & Manual
Download the TRX-DUO manual & software here .
Package Includes
- 1 × TRX-DUO SDR Receiver
Notes: Wi-Fi dongle is not included. For best compatibility, use supported SDR clients listed above and follow the manual for software setup and firmware updates.
